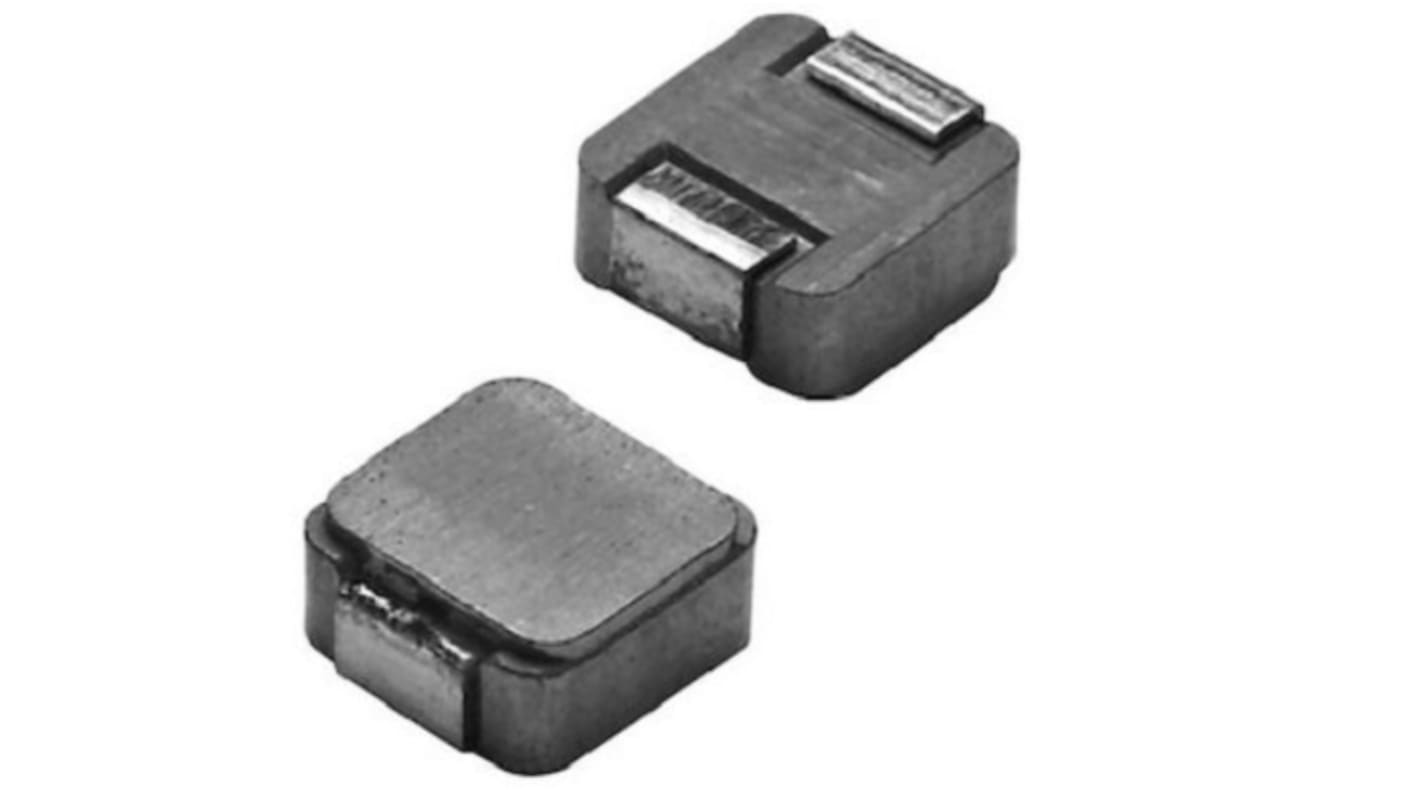

Vishay, IHLP, 1616 Shielded Surface Mount Inductor with a Metal Composite Core, 2.2 μH ±20 % 3.25 A Idc
- RS Stock No.:
- 223-7240
- Mfr. Part No.:
- IHLP1616BZER2R2M11
- Brand:
- Vishay
Subtotal (1 reel of 4000 units)*
£1,504.00
(exc. VAT)
£1,804.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 4000 + | £0.376 | £1,504.00 |
*price indicative
- RS Stock No.:
- 223-7240
- Mfr. Part No.:
- IHLP1616BZER2R2M11
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Surface Mount Inductor | |
| Inductance | 2.2 μH | |
| Maximum DC Current | 3.25A | |
| Package/Case | 1616 | |
| Length | 4.3mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 68mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±20 % | |
| Series | IHLP | |
| Depth | 2mm | |
| Height | 2mm | |
| Standards/Approvals | IEC, JEDEC, RoHS | |
| Core Material | Metal Composite | |
| Maximum Self Resonant Frequency | 40MHz | |
| Moulded | Yes | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Surface Mount Inductor | ||
Inductance 2.2 μH | ||
Maximum DC Current 3.25A | ||
Package/Case 1616 | ||
Length 4.3mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 68mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±20 % | ||
Series IHLP | ||
Depth 2mm | ||
Height 2mm | ||
Standards/Approvals IEC, JEDEC, RoHS | ||
Core Material Metal Composite | ||
Maximum Self Resonant Frequency 40MHz | ||
Moulded Yes | ||
Inductor Construction Shielded | ||
The Vishay IHLP commercial inductors It handles high transient current spikes without saturation. It has ultra low buzz noise, due to composite construction and has shielded construction. It has 2.2 μH inductance.
RoHS compliant
Halogen free
