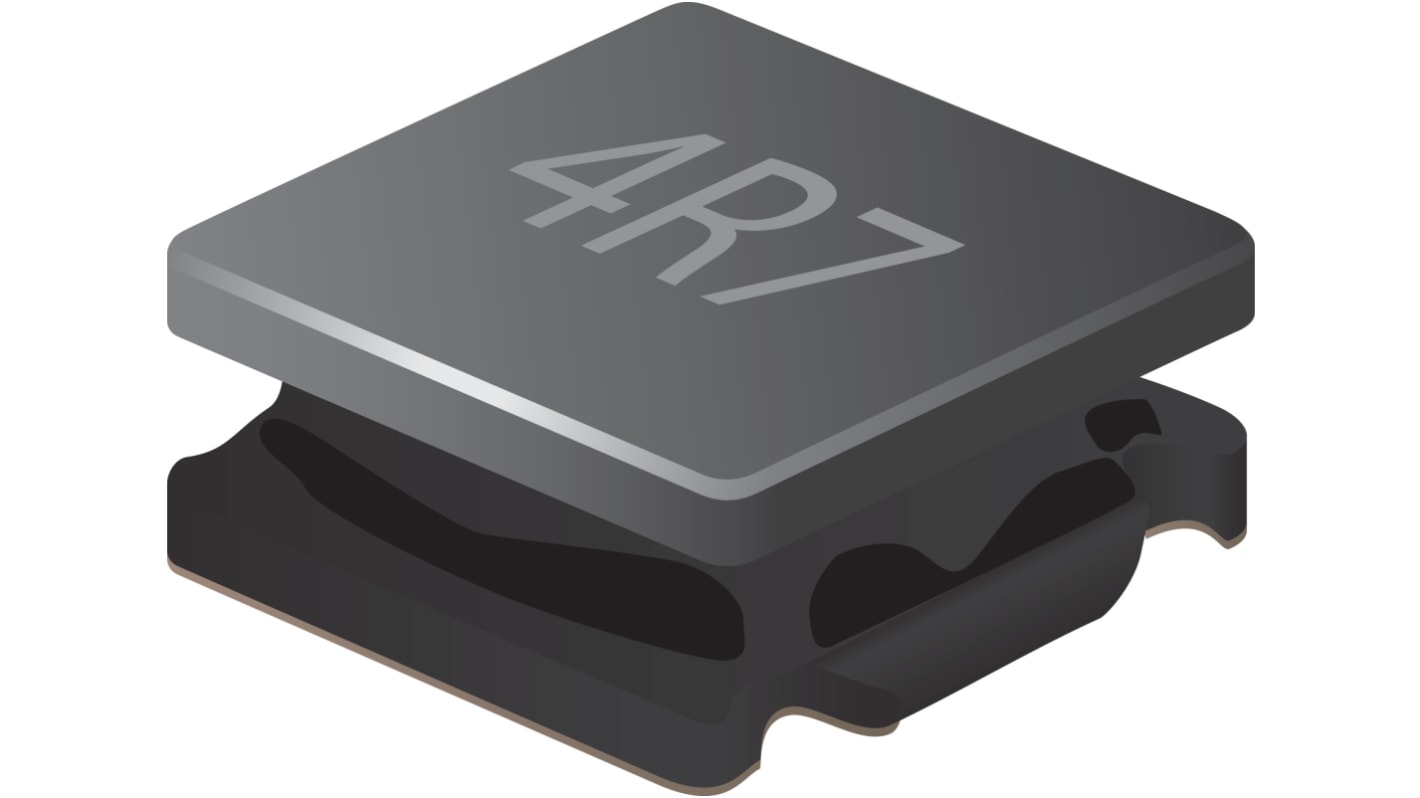

Bourns, SRN4018, 4018 Shielded Surface Mount Inductor with a Ferrite Core, 47 μH Semi Shielded 20 % 600 mA Idc Q:11
- RS Stock No.:
- 223-1788
- Distrelec Article No.:
- 304-31-839
- Mfr. Part No.:
- SRN4018-470M
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£2.22
(exc. VAT)
£2.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,190 unit(s) ready to ship
- Plus 3,000 unit(s) shipping from 18 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 40 | £0.222 | £2.22 |
| 50 - 90 | £0.209 | £2.09 |
| 100 - 190 | £0.198 | £1.98 |
| 200 - 490 | £0.181 | £1.81 |
| 500 + | £0.164 | £1.64 |
*price indicative
- RS Stock No.:
- 223-1788
- Distrelec Article No.:
- 304-31-839
- Mfr. Part No.:
- SRN4018-470M
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Surface Mount Inductor | |
| Inductance | 47μH | |
| Maximum DC Current | 600mA | |
| Package/Case | 4018 | |
| Packaging | Reel | |
| Length | 4mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 0.78Ω | |
| Inductance Tolerance | 20 % | |
| Series | SRN4018 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Depth | 1.8mm | |
| Height | 1.88mm | |
| Termination Style | Solder | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 10MHz | |
| Moulded | Yes | |
| Minimum Quality Factor | 11 | |
| Inductor Construction | Semi Shielded | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Surface Mount Inductor | ||
Inductance 47μH | ||
Maximum DC Current 600mA | ||
Package/Case 4018 | ||
Packaging Reel | ||
Length 4mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 0.78Ω | ||
Inductance Tolerance 20 % | ||
Series SRN4018 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Depth 1.8mm | ||
Height 1.88mm | ||
Termination Style Solder | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 10MHz | ||
Moulded Yes | ||
Minimum Quality Factor 11 | ||
Inductor Construction Semi Shielded | ||
- COO (Country of Origin):
- MY
The Bourns Electronics inductor comes with shielded outlet and works with a maximum DC Current of 0.6A.
Ferrite core material
-40°C to 125°C operating temperature
