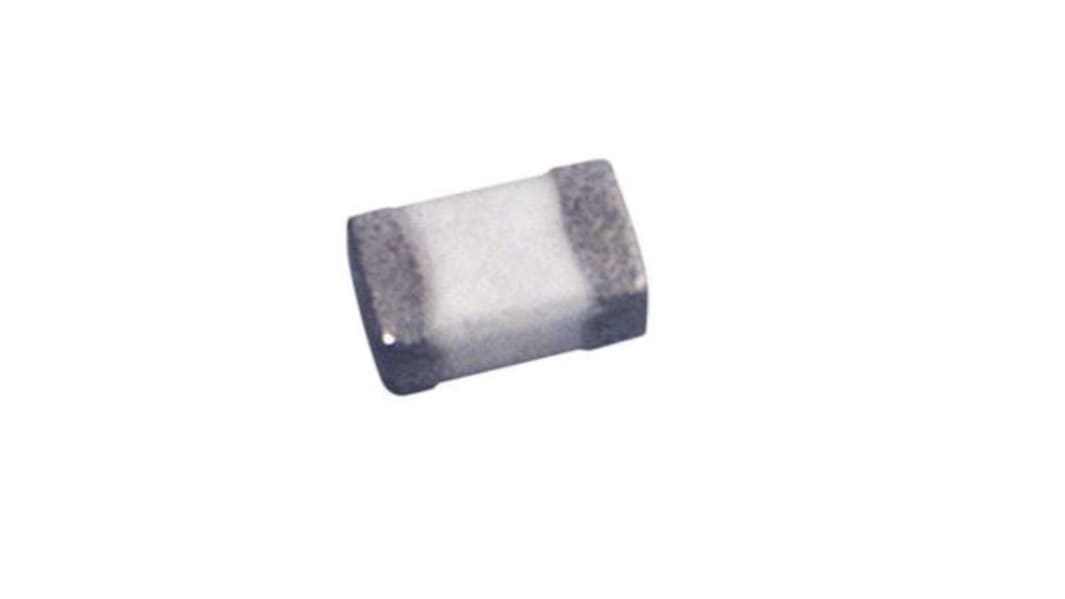

Wurth Elektronik, WE-MK No Multilayer Surface Mount Inductor with a Ceramic Core, 10 nH Multilayer 5 % 300 mA Idc Q:8
- RS Stock No.:
- 217-7529
- Mfr. Part No.:
- 7447840110
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 100 units)*
£2.10
(exc. VAT)
£2.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 100 - 400 | £0.021 | £2.10 |
| 500 - 900 | £0.019 | £1.90 |
| 1000 - 4900 | £0.016 | £1.60 |
| 5000 + | £0.016 | £1.60 |
*price indicative
- RS Stock No.:
- 217-7529
- Mfr. Part No.:
- 7447840110
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 10 nH | |
| Product Type | Multilayer Surface Mount Inductor | |
| Maximum DC Current | 300mA | |
| Length | 1mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | No | |
| Maximum DC Resistance | 350mΩ | |
| Minimum Operating Temperature | -55°C | |
| Inductance Tolerance | 5 % | |
| Series | WE-MK | |
| Maximum Operating Temperature | 125°C | |
| Core Material | Ceramic | |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS | |
| Height | 0.5mm | |
| Termination Style | Surface Mount | |
| Depth | 0.5mm | |
| Maximum Self Resonant Frequency | 3.2GHz | |
| Inductor Construction | Multilayer | |
| Minimum Quality Factor | 8 | |
| Distrelec Product Id | 304-32-708 | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 10 nH | ||
Product Type Multilayer Surface Mount Inductor | ||
Maximum DC Current 300mA | ||
Length 1mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding No | ||
Maximum DC Resistance 350mΩ | ||
Minimum Operating Temperature -55°C | ||
Inductance Tolerance 5 % | ||
Series WE-MK | ||
Maximum Operating Temperature 125°C | ||
Core Material Ceramic | ||
Standards/Approvals IEC 61249-2-21, JEDEC JS709B, REACH, RoHS | ||
Height 0.5mm | ||
Termination Style Surface Mount | ||
Depth 0.5mm | ||
Maximum Self Resonant Frequency 3.2GHz | ||
Inductor Construction Multilayer | ||
Minimum Quality Factor 8 | ||
Distrelec Product Id 304-32-708 | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik WE-MK multilayer ceramic SMT inductor has 1nH inductance. It is use in high frequency circuits, Bluetooth and wireless LAN. It has inductance very stable over temperature.
Coil integrated in a multilayer ceramic structure
All inductors with polarity marking
High self resonant frequency
Inductive tolerances of 5%; ± 0.3 nH
Operating temperature: –55°C to +125°C
Inductance very stable over temperature
Recommended solder profi
