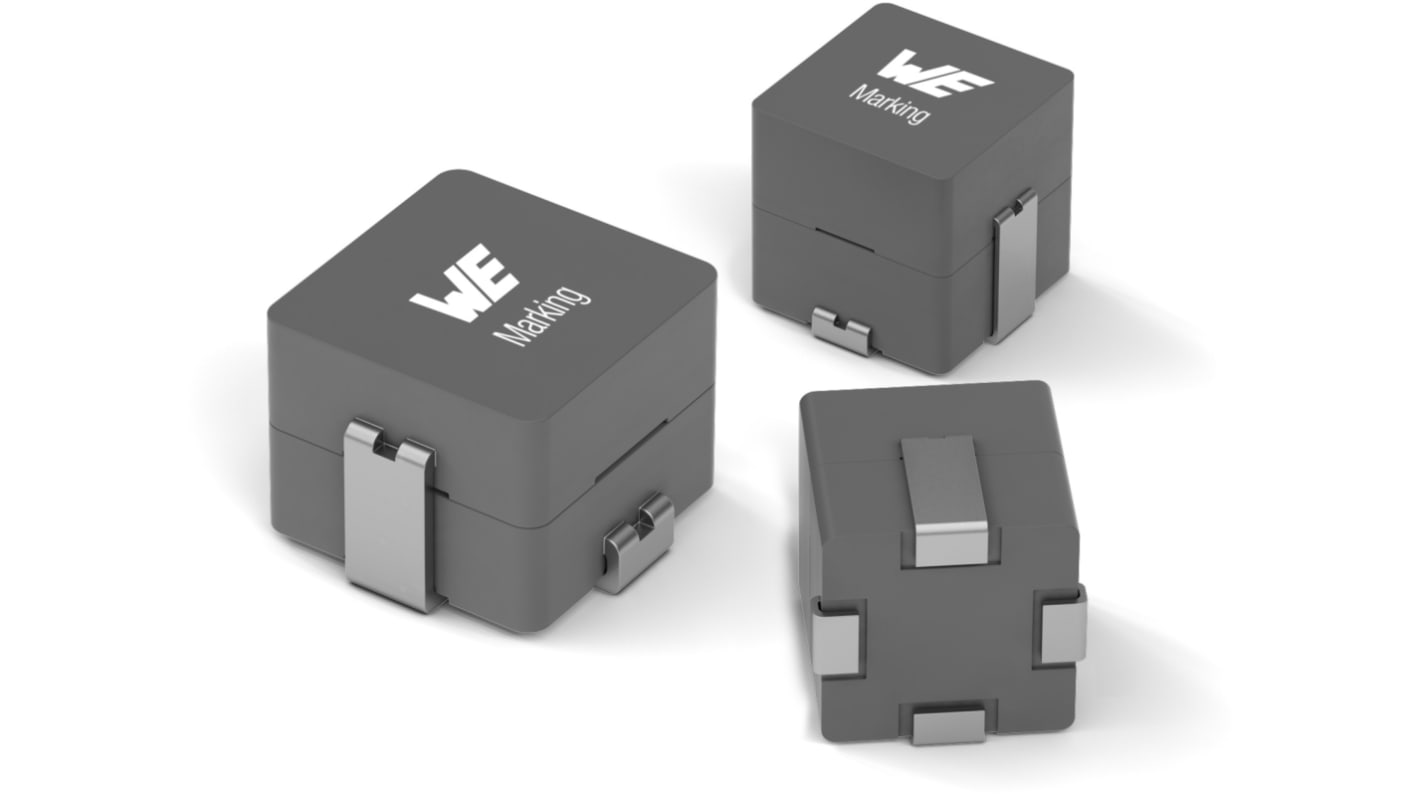

Wurth Elektronik, WE-LHMD SMT, 1213 Unshielded Wirewound Surface Mount Inductor with a Ferrite Core, 22 μH 15 % 4 A Idc
- RS Stock No.:
- 217-7278
- Mfr. Part No.:
- 74434301213220
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 250 units)*
£1,052.50
(exc. VAT)
£1,262.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 27 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 250 + | £4.21 | £1,052.50 |
*price indicative
- RS Stock No.:
- 217-7278
- Mfr. Part No.:
- 74434301213220
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 22μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 4A | |
| Package/Case | 1213 | |
| Length | 10mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 50mΩ | |
| Pin Count | 4 | |
| Maximum Operating Temperature | 125°C | |
| Series | WE-LHMD SMT | |
| Inductance Tolerance | 15 % | |
| Standards/Approvals | JEDEC JS709B, IEC 61249-2-21, REACH, RoHS | |
| Termination Style | Surface Mount | |
| Depth | 13.8mm | |
| Core Material | Ferrite | |
| Height | 13mm | |
| Moulded | Yes | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 22μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 4A | ||
Package/Case 1213 | ||
Length 10mm | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding No | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 50mΩ | ||
Pin Count 4 | ||
Maximum Operating Temperature 125°C | ||
Series WE-LHMD SMT | ||
Inductance Tolerance 15 % | ||
Standards/Approvals JEDEC JS709B, IEC 61249-2-21, REACH, RoHS | ||
Termination Style Surface Mount | ||
Depth 13.8mm | ||
Core Material Ferrite | ||
Height 13mm | ||
Moulded Yes | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik WE-LHMD SMT high current inductor has 22μH inductance. It has 4A rated current. The product has RoHS, REACh and halogen free approval.
Inductance 22μH
Rated Current 4A
Saturation Current 15A
