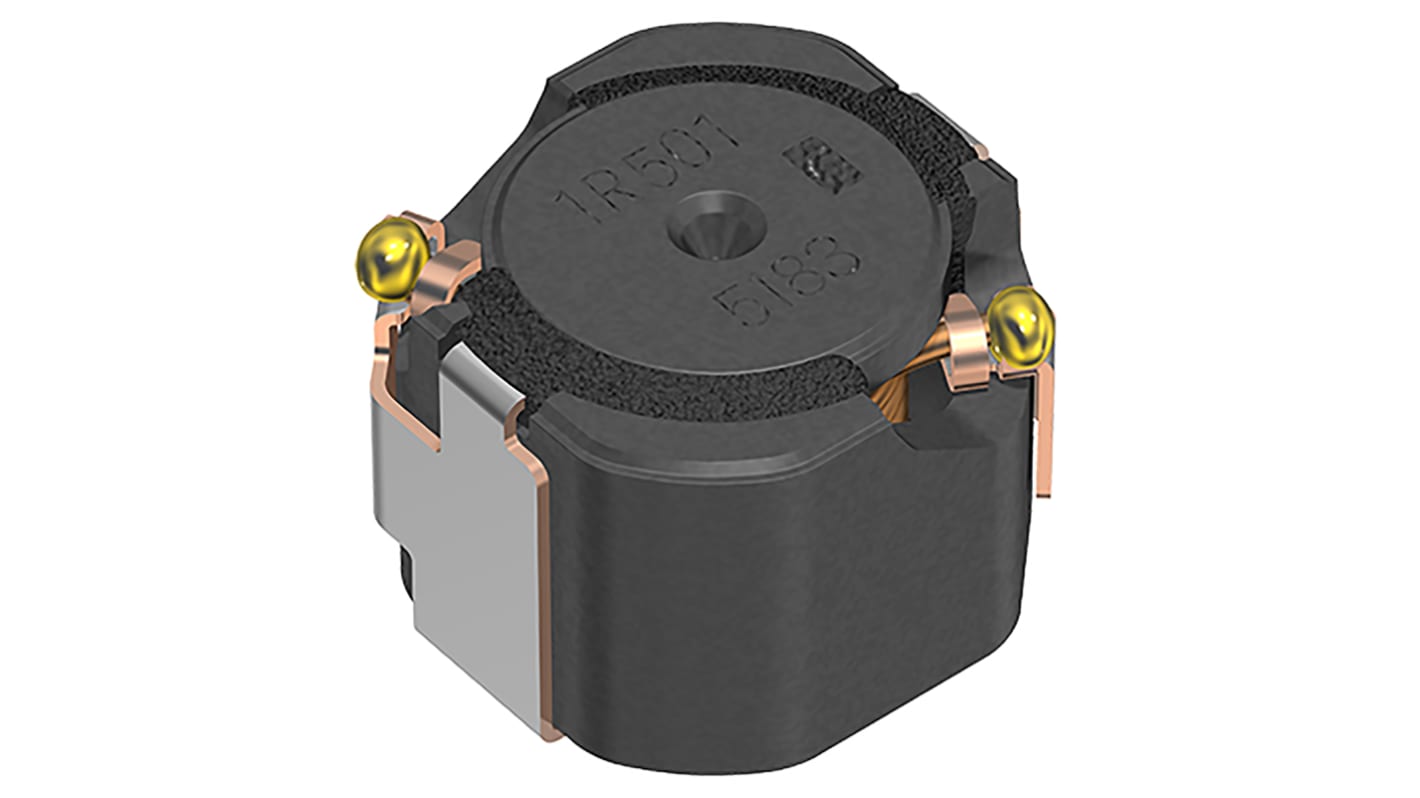

EPCOS, CLF6045NI-D, 6045 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 6.8 μH ±30 % 3.1 A Idc
- RS Stock No.:
- 185-7968
- Mfr. Part No.:
- B82562N4682N000
- Brand:
- EPCOS
Subtotal (1 reel of 1000 units)*
£334.00
(exc. VAT)
£401.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £0.334 | £334.00 |
*price indicative
- RS Stock No.:
- 185-7968
- Mfr. Part No.:
- B82562N4682N000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 6.8μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 3.1A | |
| Package/Case | 6045 | |
| Length | 6.3mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 27mΩ | |
| Maximum Operating Temperature | 150°C | |
| Series | CLF6045NI-D | |
| Inductance Tolerance | ±30 % | |
| Standards/Approvals | RoHS | |
| Core Material | Ferrite | |
| Depth | 6mm | |
| Height | 4.5mm | |
| Termination Style | Surface Mount | |
| Diameter | 6mm | |
| Maximum Self Resonant Frequency | 100kHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 6.8μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 3.1A | ||
Package/Case 6045 | ||
Length 6.3mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 27mΩ | ||
Maximum Operating Temperature 150°C | ||
Series CLF6045NI-D | ||
Inductance Tolerance ±30 % | ||
Standards/Approvals RoHS | ||
Core Material Ferrite | ||
Depth 6mm | ||
Height 4.5mm | ||
Termination Style Surface Mount | ||
Diameter 6mm | ||
Maximum Self Resonant Frequency 100kHz | ||
Inductor Construction Shielded | ||
High mechanical robustness
High rated current, low DC resistance
Temperature range up to +150 °C
Suitable for lead-free reflow soldering
Applications
DC/DC converters
Automotive electronics
Filtering of supply voltages
Coupling, decoupling
