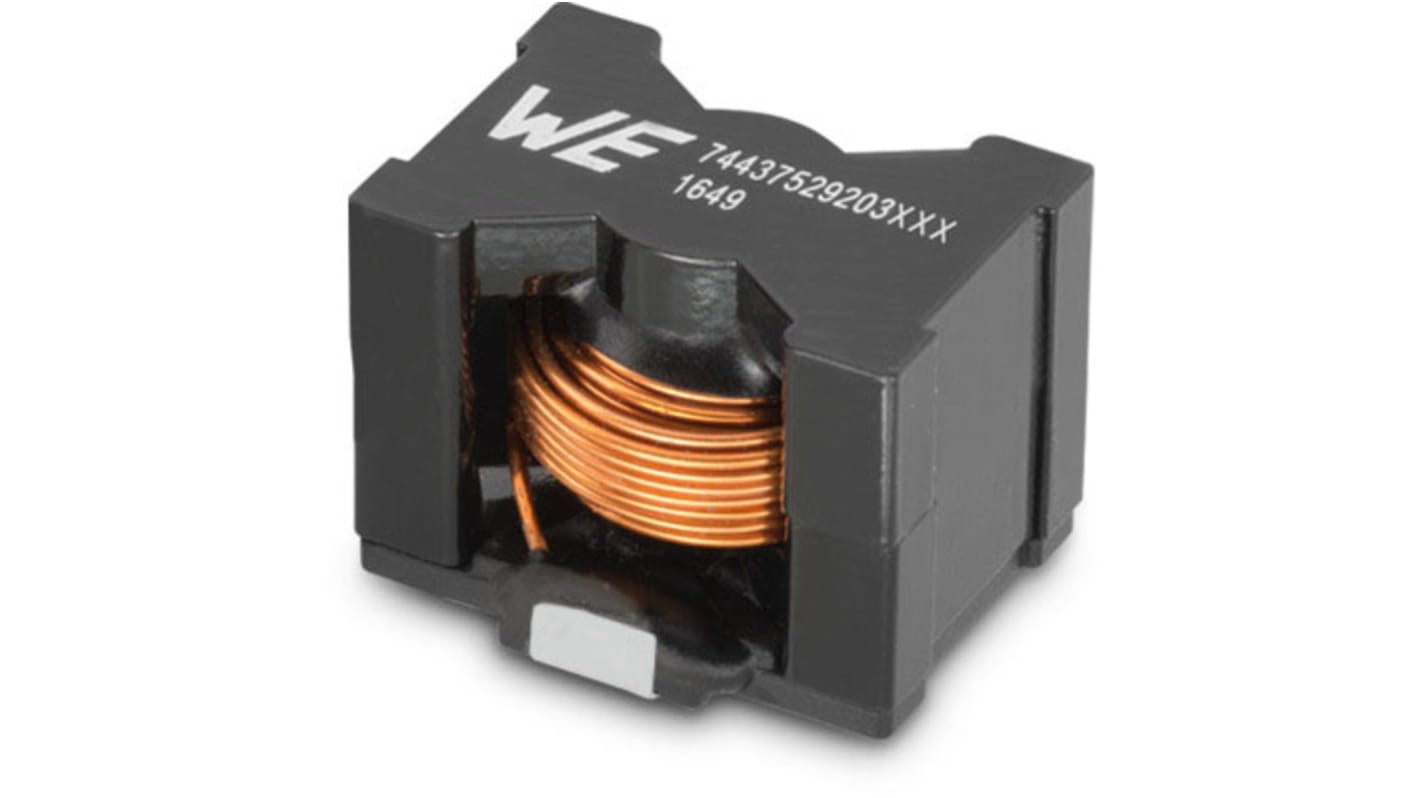

Wurth, WE-HCF, 2818 Shielded Wire-wound SMD Inductor with a MnZn Core, 1 μH ±20% Shielded 56A Idc

View all Surface Mount Inductors
Bulk discount available

Subtotal (1 unit)*

£8.81

(exc. VAT)

£10.57

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
  • Plus 20 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£8.81
5 - 9£7.59
10 +£7.19

*price indicative

RS Stock No.:
185-7338
Mfr. Part No.:
7443640100B
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Inductance

1 μH

Maximum DC Current

56A

Package/Case

2818

Length

28mm

Depth

19.4mm

Height

18.5mm

Dimensions

28 x 19.4 x 18.5mm

Shielded

Yes

Tolerance

±20%

Maximum DC Resistance

440µΩ

Series

WE-HCF

Core Material

MnZn

Maximum Self Resonant Frequency

53.6MHz

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

Inductor Construction

Shielded

COO (Country of Origin):
CN
Saturation current up to 125 A
Flat, round and litz wire version to optimize the DC & AC losses
Inductance values ranging from 0.7 μH to 680 μH
Low core losses (MnZn)
Magnetically shielded
Litz and round wire: base for SMD mount and coplanarity
Operating temperature: -40°C to +125°C
Applications
Storage inductor for high efficiency DC/DC converters with high ripple currents
CRM, CCM & DCM PFC Stages
Resonant SMPS
Filter for audio applications
