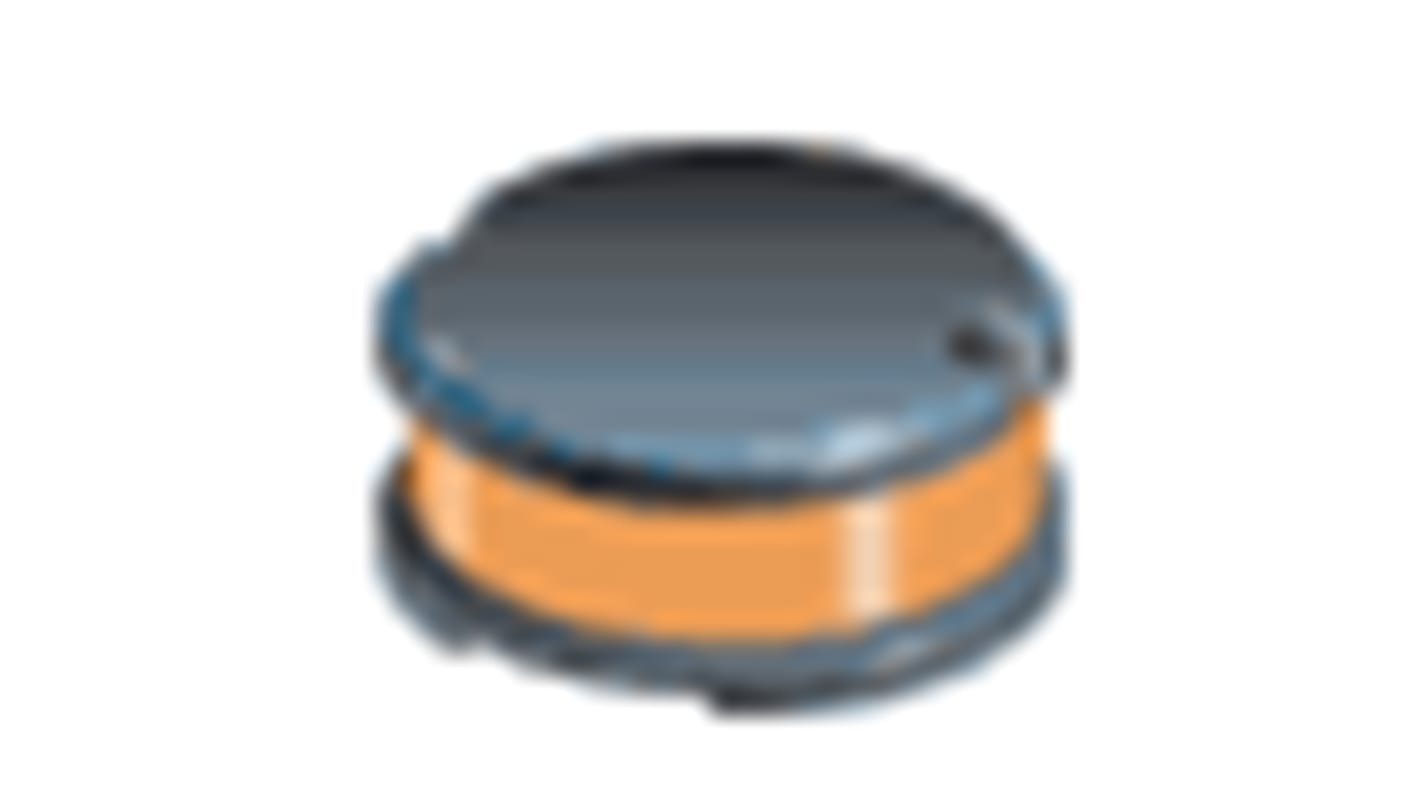

Bourns, SDR0603, 0603 Unshielded Surface Mount Inductor with a Ferrite DR Core, 22 μH ±20 % 750 mA Idc Q:20

View all Surface Mount Inductors

Subtotal (1 reel of 100 units)*

£22.30

(exc. VAT)

£26.80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
100 +£0.223£22.30

*price indicative

RS Stock No.:
181-8239
Mfr. Part No.:
SDR0603-220ML
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Inductance

22μH

Product Type

Surface Mount Inductor

Maximum DC Current

750mA

Package/Case

0603

Packaging

Tape & Reel

Length

5.8mm

Automotive Standard

No

Shielding

No

Maximum DC Resistance

280mΩ

Minimum Operating Temperature

-40°C

Inductance Tolerance

±20 %

Series

SDR0603

Maximum Operating Temperature

125°C

Standards/Approvals

RoHS

Depth

5.8mm

Core Material

Ferrite DR

Height

3.9mm

Termination Style

Surface Mount

Diameter

5.8mm

Maximum Self Resonant Frequency

30MHz

Minimum Quality Factor

20

Inductor Construction

Wirewound

Available in E12 series

Small design of only 5.8 mm maximum diameter

Low 3.9 mm profile

Applications

Input/output of DC/DC converters

Power supplies for:

Portable communications equipment

Camcorders

LCD TVs

Car radios

SDR0603 Series Wire Wound Chokes


Available in E12 series

Small design of only 5.8 mm maximum Diameter

Low 3.9 mm profile

RoHS compliant

Applications in Input/output of DC/DC Converters and Power supplies for:

Portable communication equipment, Camcorders, LCD TVs and Car radios
