MPN

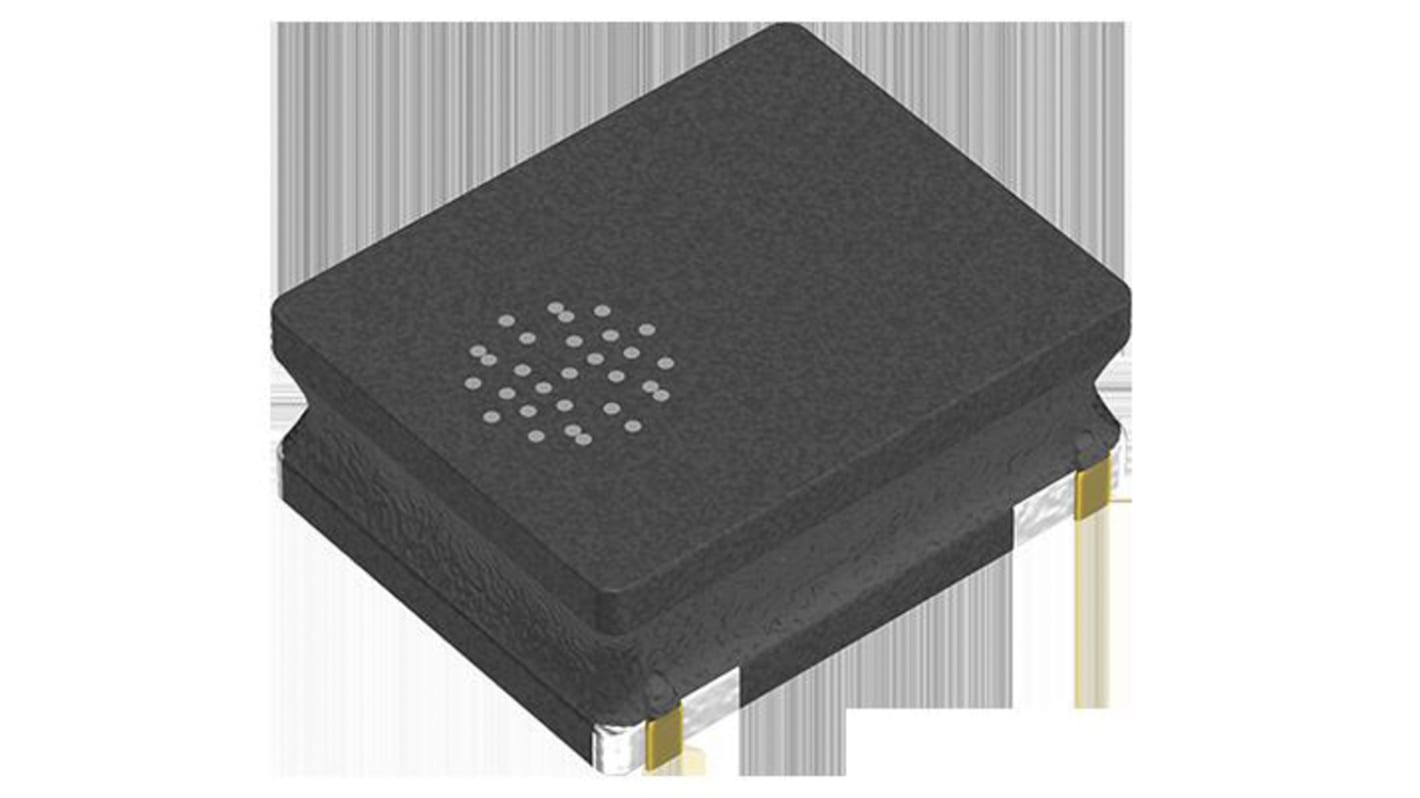

TDK, VLS-HBX-1, 252010 Shielded Wirewound Surface Mount Inductor with a Metal Core, 2.2 μH ±20 % 1.76 A Idc

Subtotal (1 reel of 2000 units)*

£202.00

(exc. VAT)

£242.00

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
2000 +	£0.101	£202.00

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TDK
	Product Type	Wirewound Surface Mount Inductor
	Inductance	2.2 μH
	Maximum DC Current	1.76A
	Package/Case	252010
	Length	2.5mm
	Automotive Standard	No
	Shielding	Yes
	Minimum Operating Temperature	-40°C
	Maximum DC Resistance	120mΩ
	Maximum Operating Temperature	105°C
	Inductance Tolerance	±20 %
	Series	VLS-HBX-1
	Core Material	Metal
	Standards/Approvals	Halogen Free, SVHC-free, RoHS, REACH, Lead Free
	Height	1mm
	Termination Style	Surface Mount
	Depth	2mm
	Inductor Construction	Wirewound

	Select all
	Brand TDK
	Product Type Wirewound Surface Mount Inductor
	Inductance 2.2 μH
	Maximum DC Current 1.76A
	Package/Case 252010
	Length 2.5mm
	Automotive Standard No
	Shielding Yes
	Minimum Operating Temperature -40°C
	Maximum DC Resistance 120mΩ
	Maximum Operating Temperature 105°C
	Inductance Tolerance ±20 %
	Series VLS-HBX-1
	Core Material Metal
	Standards/Approvals Halogen Free, SVHC-free, RoHS, REACH, Lead Free
	Height 1mm
	Termination Style Surface Mount
	Depth 2mm
	Inductor Construction Wirewound

Magnetic shield type wound inductor for power circuits using a metallic magnetic material.

High magnetic shield construction and compatible with high-density mounting.

Larger current was achieved by the metallic magnetic material.

APPLICATION

Smart phones, tablet terminals, HDDs, SSDs, DVCs, DSCs, mobile display panels, portable game devices, compact power supply modules, other

Application guides: Smart phones/tablets
