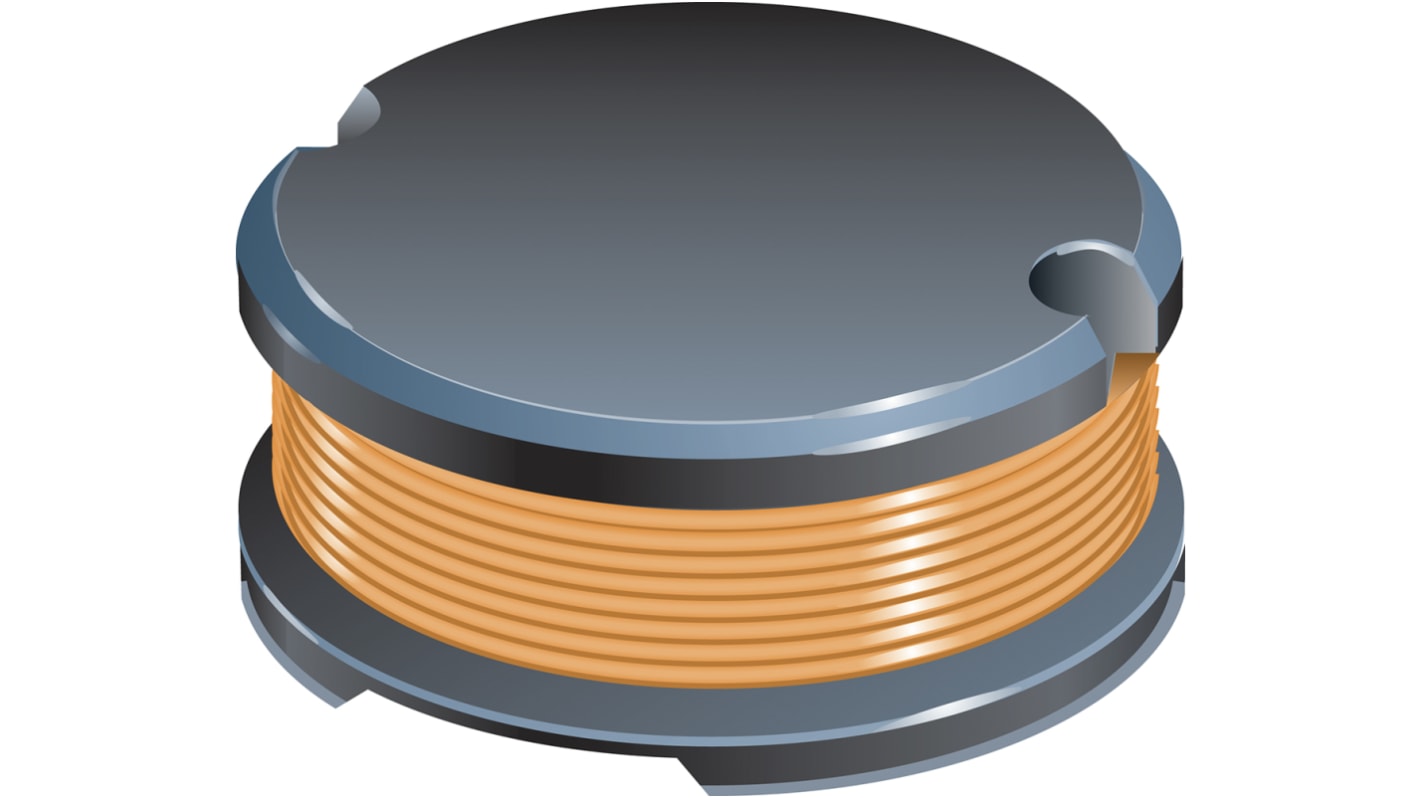

Bourns, SDR0604, 0604 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 2.2 μH ±20% Ferrite Core 2.8A Idc Q:33

View all Surface Mount Inductors

Subtotal (1 reel of 100 units)*

£15.30

(exc. VAT)

£18.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,700 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
100 +£0.153£15.30

*price indicative

RS Stock No.:
181-4308
Mfr. Part No.:
SDR0604-2R2ML
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Inductance

2.2 μH

Maximum DC Current

2.8A

Package/Case

0604

Length

5.8mm

Depth

5.8mm

Height

4.8mm

Diameter

5.8mm

Dimensions

5.8 x 5.8 x 4.8mm

Shielded

No

Tolerance

±20%

Maximum DC Resistance

60mΩ

Series

SDR0604

Core Material

Ferrite DR

Maximum Self Resonant Frequency

79MHz

Minimum Quality Factor

33

Inductor Construction

Ferrite Core

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

SDR0604 Series Wire Wound Chokes


Available in E12 series
Small diameter of only 5.8mm maximum
Profile of 4.8mm
RoHS compliant
Applications in input/output of DC/DC Converters, Power Supplies

Available in E12 series
Small diameter of only 5.8 mm max.
Profile of 4.8 mm
Applications
Input/output of DC/DC converters
Power supplies for:
Portable communications equipment
Camcorders
LCD Tvs
