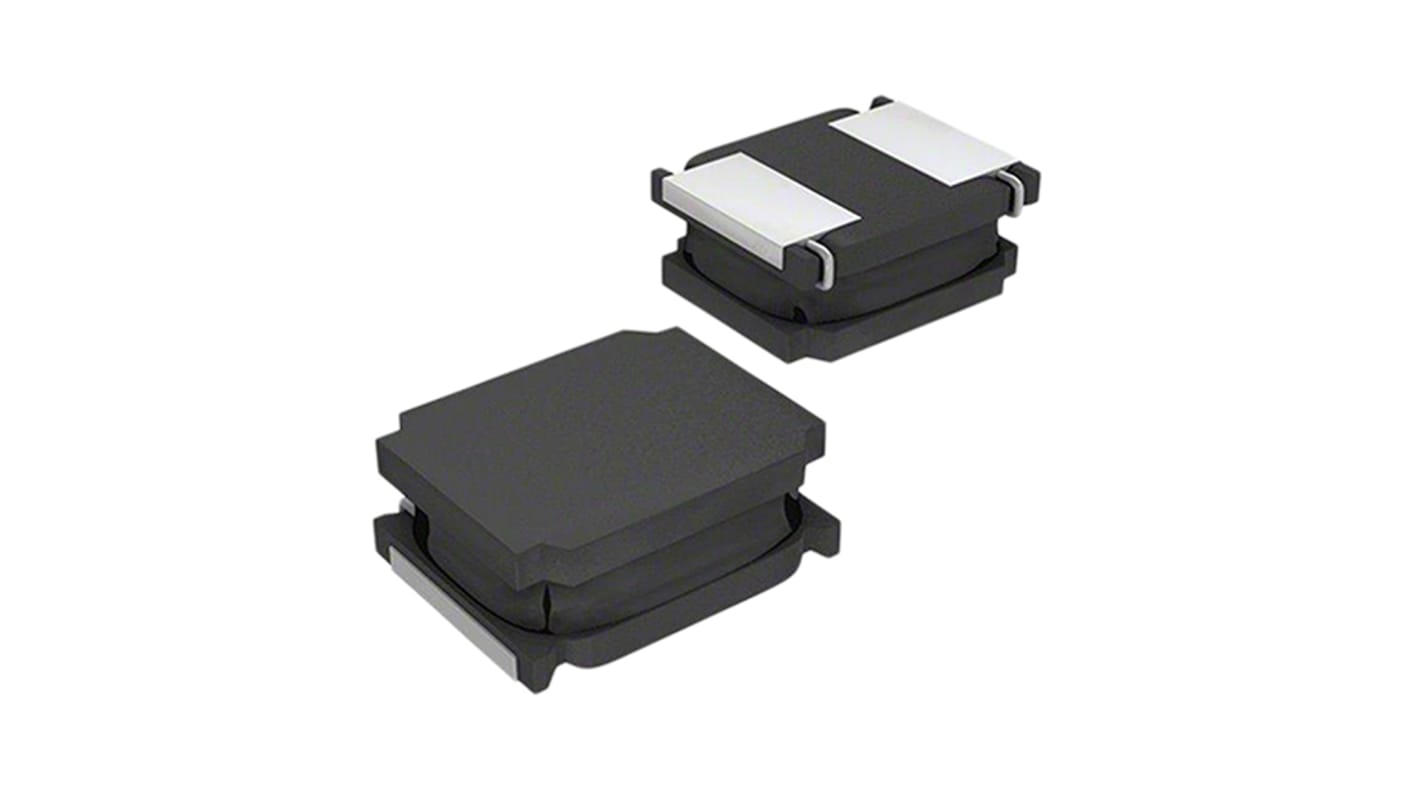

Wurth, WE-LQS, 6045 Shielded Wire-wound SMD Inductor 330 μH ±20% Moulded 580mA Idc
- RS Stock No.:
- 163-7840
- Mfr. Part No.:
- 74404064331
- Brand:
- Wurth Elektronik
Available to back order for despatch 17/09/2024
Added
Price Each (On a Reel of 1500)
£0.591
(exc. VAT)
£0.709
(inc. VAT)
| Units | Per unit | Per Reel* |
| 1500 + | £0.591 | £886.50 |
| *price indicative | ||
- RS Stock No.:
- 163-7840
- Mfr. Part No.:
- 74404064331
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
WE-LQS Series Magnetically Shielded Power Inductors
Wurth Elektronic LQ-S power inductors feature a robust, compact design and can manage 1.7 times more current than the unshielded equivalent. They act as integrated DC/DC converters and the larger sizes can be used in shock resisting circuits. Suitable uses for these power inductors include switching controllers that require high efficiency and portable power applications including PDAs, smartphones, digital cameras and TVs.
Applications
Magnetically shielded
Low RDC
Low RDC
Wurth Non Standard SMT Inductors (Chokes)
Specifications
Attribute | Value |
|---|---|
| Inductance | 330 μH |
| Maximum DC Current | 580mA |
| Package/Case | 6045 |
| Length | 6mm |
| Depth | 6mm |
| Height | 4.5mm |
| Dimensions | 6 x 6 x 4.5mm |
| Shielded | Yes |
| Tolerance | ±20% |
| Maximum DC Resistance | 1.177Ω |
| Series | WE-LQS |
| Maximum Self Resonant Frequency | 3.42MHz |
| Moulded | Yes |
| Inductor Construction | Moulded |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
