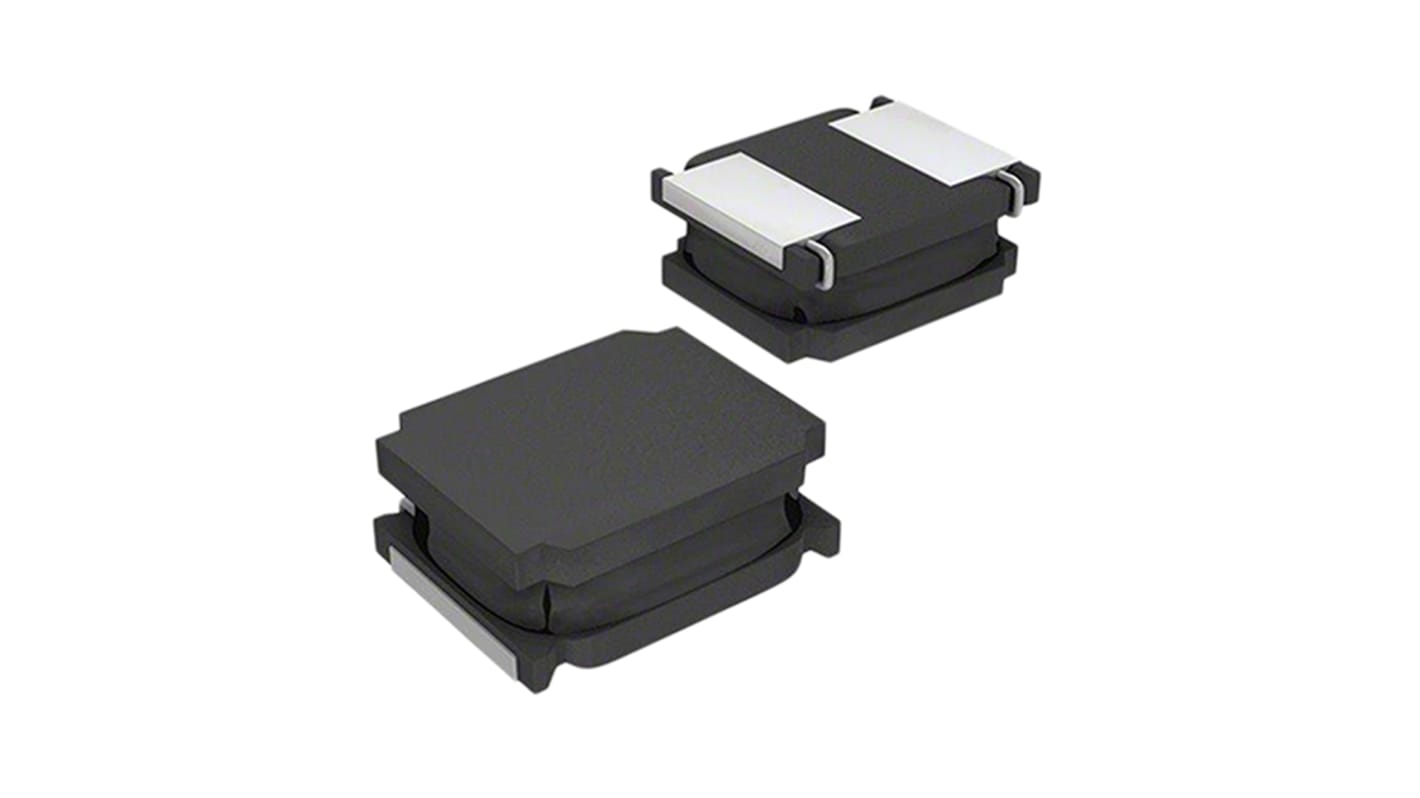

Wurth, WE-LQS, 6045 Shielded Wire-wound SMD Inductor 1 mH ±10% Moulded 300mA Idc
- RS Stock No.:
- 163-7835
- Mfr. Part No.:
- 74404064102
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1500 units)*
£936.00
(exc. VAT)
£1,123.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1500 + | £0.624 | £936.00 |
*price indicative
- RS Stock No.:
- 163-7835
- Mfr. Part No.:
- 74404064102
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 1 mH | |
Maximum DC Current | 300mA | |
Package/Case | 6045 | |
Length | 6mm | |
Depth | 6mm | |
Height | 4.5mm | |
Dimensions | 6 x 6 x 4.5mm | |
Shielded | Yes | |
Tolerance | ±10% | |
Maximum DC Resistance | 4.783Ω | |
Series | WE-LQS | |
Maximum Self Resonant Frequency | 1.86MHz | |
Maximum Operating Temperature | +125°C | |
Inductor Construction | Moulded | |
Moulded | Yes | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 1 mH | ||
Maximum DC Current 300mA | ||
Package/Case 6045 | ||
Length 6mm | ||
Depth 6mm | ||
Height 4.5mm | ||
Dimensions 6 x 6 x 4.5mm | ||
Shielded Yes | ||
Tolerance ±10% | ||
Maximum DC Resistance 4.783Ω | ||
Series WE-LQS | ||
Maximum Self Resonant Frequency 1.86MHz | ||
Maximum Operating Temperature +125°C | ||
Inductor Construction Moulded | ||
Moulded Yes | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
WE-LQS Series Magnetically Shielded Power Inductors
Wurth Elektronic LQ-S power inductors feature a robust, compact design and can manage 1.7 times more current than the unshielded equivalent. They act as integrated DC/DC converters and the larger sizes can be used in shock resisting circuits. Suitable uses for these power inductors include switching controllers that require high efficiency and portable power applications including PDAs, smartphones, digital cameras and TVs.
Applications
Magnetically shielded
Low RDC
Low RDC
