EPCOS, SIMID, 0805 (2012M) Wire-wound SMD Inductor with a Ferrite Core, 3.3 μH ±5% Wire-Wound 100mA Idc Q:20
- RS Stock No.:
- 162-0310
- Mfr. Part No.:
- B82498F1332J000
- Brand:
- EPCOS
Subtotal (1 reel of 3000 units)*
£693.00
(exc. VAT)
£831.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.231 | £693.00 |
*price indicative
- RS Stock No.:
- 162-0310
- Mfr. Part No.:
- B82498F1332J000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 3.3 μH | |
| Maximum DC Current | 100mA | |
| Package/Case | 0805 (2012M) | |
| Length | 2.3mm | |
| Depth | 1.7mm | |
| Height | 1.4mm | |
| Dimensions | 2.3 x 1.7 x 1.4mm | |
| Tolerance | ±5% | |
| Maximum DC Resistance | 3.3Ω | |
| Series | SIMID | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 250MHz | |
| Minimum Quality Factor | 20 | |
| Inductor Construction | Wire-Wound | |
| Moulded | Yes | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 3.3 μH | ||
Maximum DC Current 100mA | ||
Package/Case 0805 (2012M) | ||
Length 2.3mm | ||
Depth 1.7mm | ||
Height 1.4mm | ||
Dimensions 2.3 x 1.7 x 1.4mm | ||
Tolerance ±5% | ||
Maximum DC Resistance 3.3Ω | ||
Series SIMID | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 250MHz | ||
Minimum Quality Factor 20 | ||
Inductor Construction Wire-Wound | ||
Moulded Yes | ||

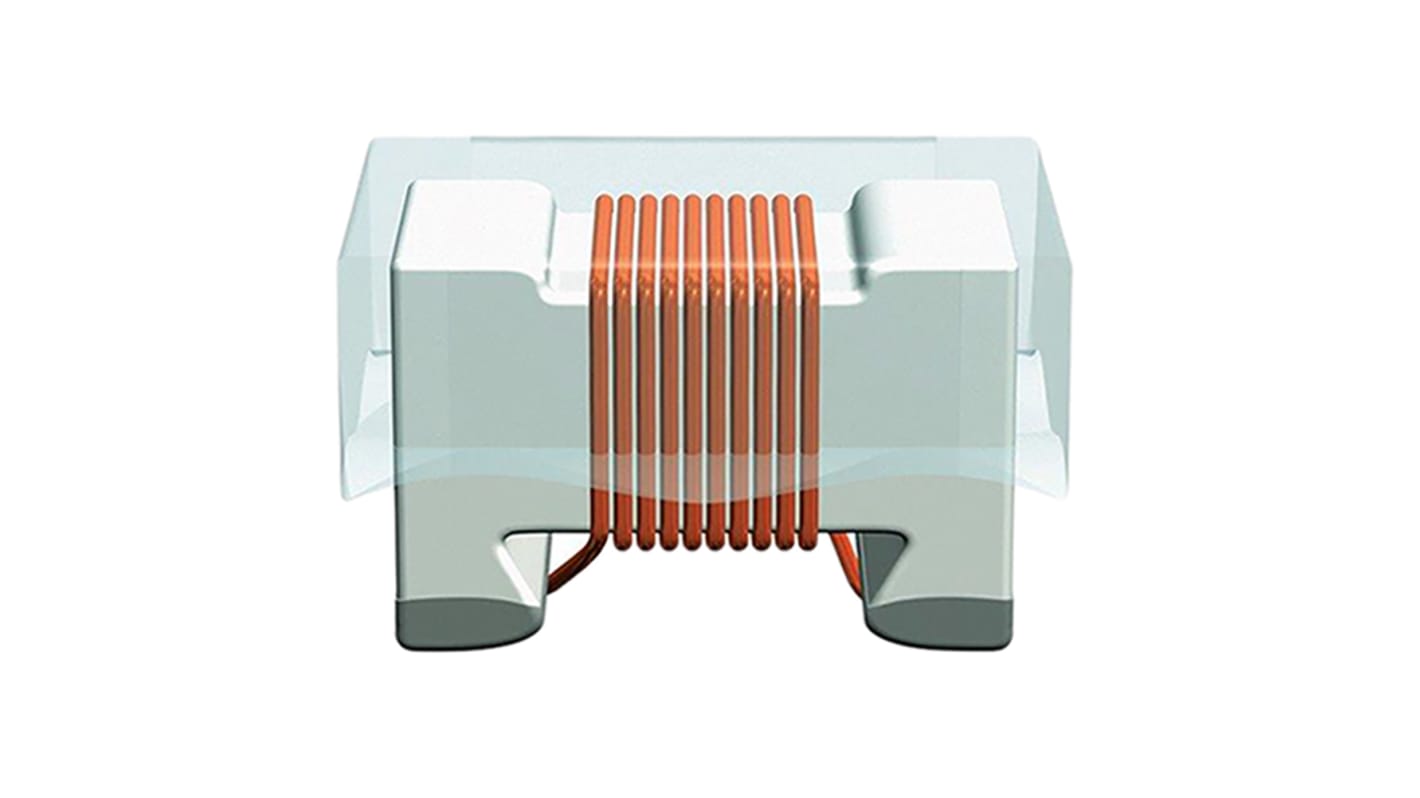

Epcos 0805 B82498F SIMID Series Wire Wound Inductors
Cubic coil with ceramic or ferrite core
Epoxy moulded flat top for vacuum pickup
High Q factor and resonant frequency
Dimensions: 2.3 x 1.7 x 1.45mm
Operating temp: -55°C → +125°C
Epoxy moulded flat top for vacuum pickup
High Q factor and resonant frequency
Dimensions: 2.3 x 1.7 x 1.45mm
Operating temp: -55°C → +125°C
