- RS Stock No.:
- 135-5745
- Mfr. Part No.:
- SRN8040TA-470M
- Brand:
- Bourns
1100 In stock - FREE next working day delivery available
Price Each (In a Pack of 25)
£0.463
(exc. VAT)
£0.556
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
25 - 225 | £0.463 | £11.575 |
250 - 600 | £0.341 | £8.525 |
625 - 1225 | £0.30 | £7.50 |
1250 - 2475 | £0.278 | £6.95 |
2500 + | £0.27 | £6.75 |
*price indicative
- RS Stock No.:
- 135-5745
- Mfr. Part No.:
- SRN8040TA-470M
- Brand:
- Bourns
Technical Reference
Legislation and Compliance
Product Details

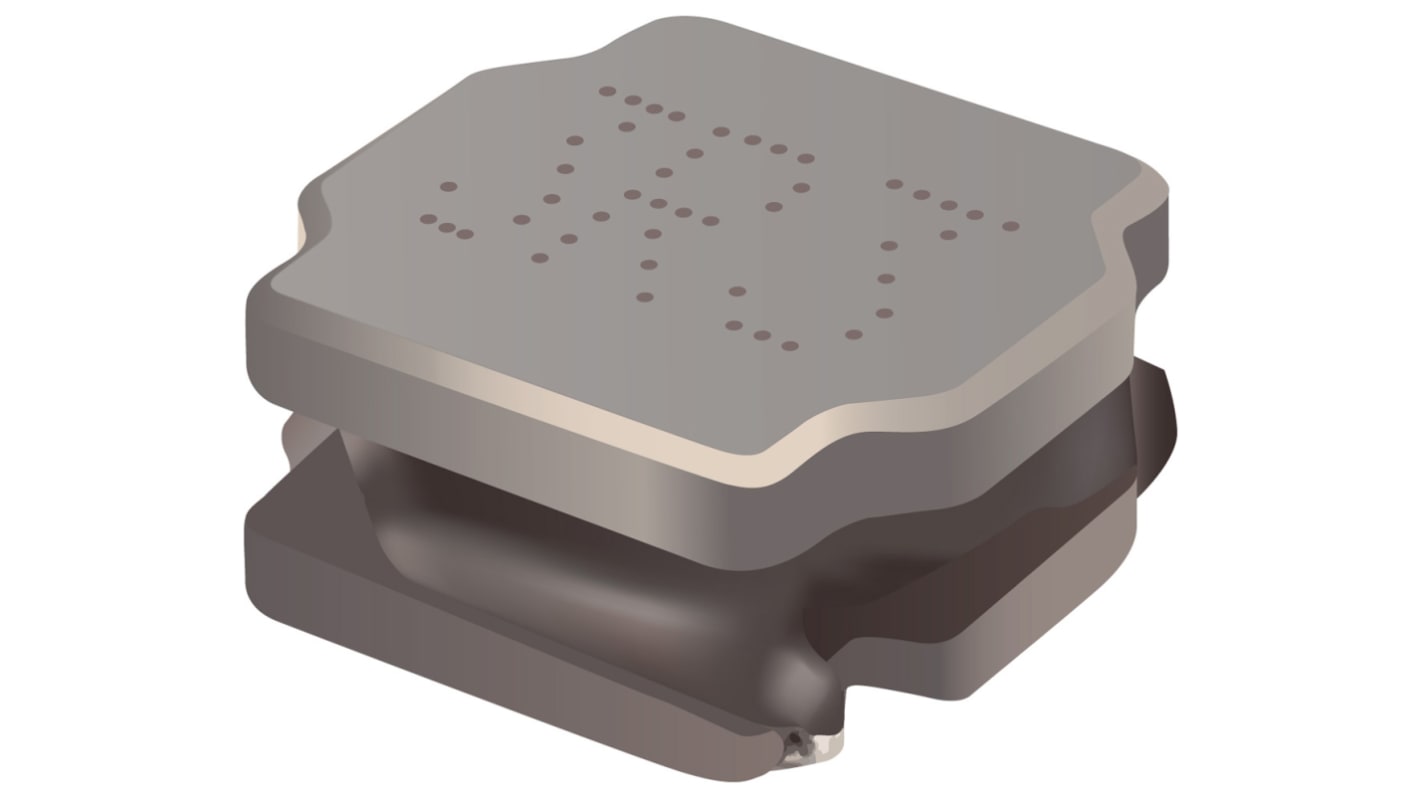

SRN8040 Series Semi Magnetically Shielded Wire Wound Chokes
Bourns SRN8040 series SMD semi-shielded power inductors feature an inductance range of 0.5 to 330uH and a rated current up to 12A, operating temperature of -55°C to +125°C. These inductors are suitable for the automotive industry and are AEC-Q200 qualified.
Applications
Automotive systems: Driver assistant, information, lighting, entertainment
DC-DC convertors
Power supplies
Televisions
Digital video
DC-DC convertors
Power supplies
Televisions
Digital video
Approvals
AEC-Q200
Specifications
Attribute | Value |
---|---|
Inductance | 47 μH |
Maximum DC Current | 2A |
Length | 8mm |
Depth | 8mm |
Automotive Standard | AEC-Q200 |
Height | 3.7mm |
Dimensions | 8 x 8 x 3.7mm |
Tolerance | ±20% |
Maximum DC Resistance | 135mΩ |
Series | SRN8040TA |
Core Material | Ferrite |
Maximum Self Resonant Frequency | 12MHz |
Minimum Quality Factor | 12 |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
Inductor Construction | Semi-Shielded |
