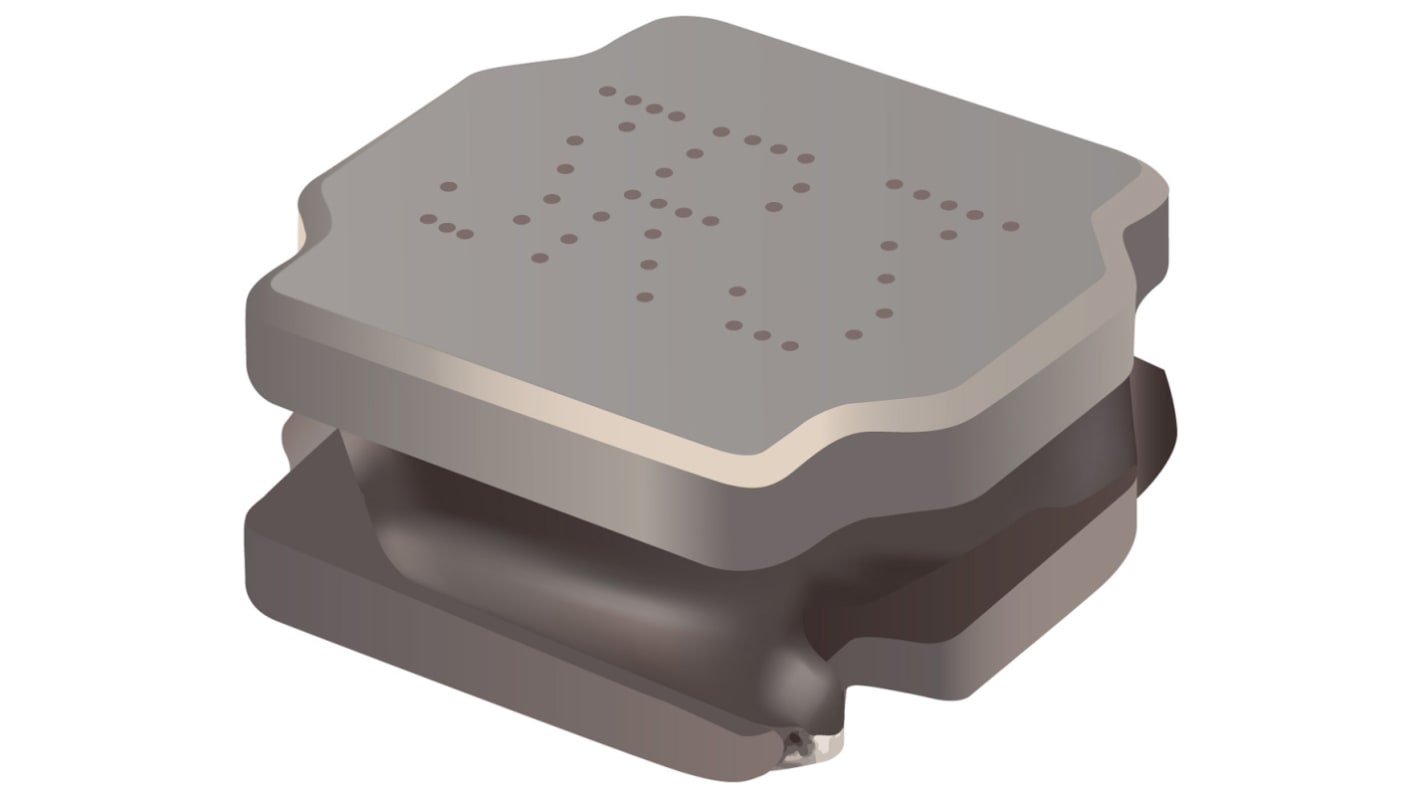

Bourns, SRN8040TA Wire-wound SMD Inductor with a Ferrite Core, 220 μH ±20% Semi-Shielded 850mA Idc Q:10
- RS Stock No.:
- 135-5900
- Mfr. Part No.:
- SRN8040TA-221M
- Brand:
- Bourns
725 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 25)
£0.463
(exc. VAT)
£0.556
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 225 | £0.463 | £11.575 |
| 250 - 600 | £0.333 | £8.325 |
| 625 - 1225 | £0.304 | £7.60 |
| 1250 - 2475 | £0.29 | £7.25 |
| 2500 + | £0.274 | £6.85 |
| *price indicative | ||
- RS Stock No.:
- 135-5900
- Mfr. Part No.:
- SRN8040TA-221M
- Brand:
- Bourns
Technical Reference
Legislation and Compliance
Product Details
SRN8040 Series Semi Magnetically Shielded Wire Wound Chokes
Bourns SRN8040 series SMD semi-shielded power inductors feature an inductance range of 0.5 to 330uH and a rated current up to 12A, operating temperature of -55°C to +125°C. These inductors are suitable for the automotive industry and are AEC-Q200 qualified.
Applications
Automotive systems: Driver assistant, information, lighting, entertainment
DC-DC convertors
Power supplies
Televisions
Digital video
DC-DC convertors
Power supplies
Televisions
Digital video
Approvals
AEC-Q200
Specifications
Attribute | Value |
|---|---|
| Inductance | 220 μH |
| Maximum DC Current | 850mA |
| Length | 8mm |
| Depth | 8mm |
| Automotive Standard | AEC-Q200 |
| Height | 3.7mm |
| Dimensions | 8 x 8 x 3.7mm |
| Tolerance | ±20% |
| Maximum DC Resistance | 610mΩ |
| Series | SRN8040TA |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 5.5MHz |
| Minimum Operating Temperature | -55°C |
| Minimum Quality Factor | 10 |
| Maximum Operating Temperature | +125°C |
| Inductor Construction | Semi-Shielded |
