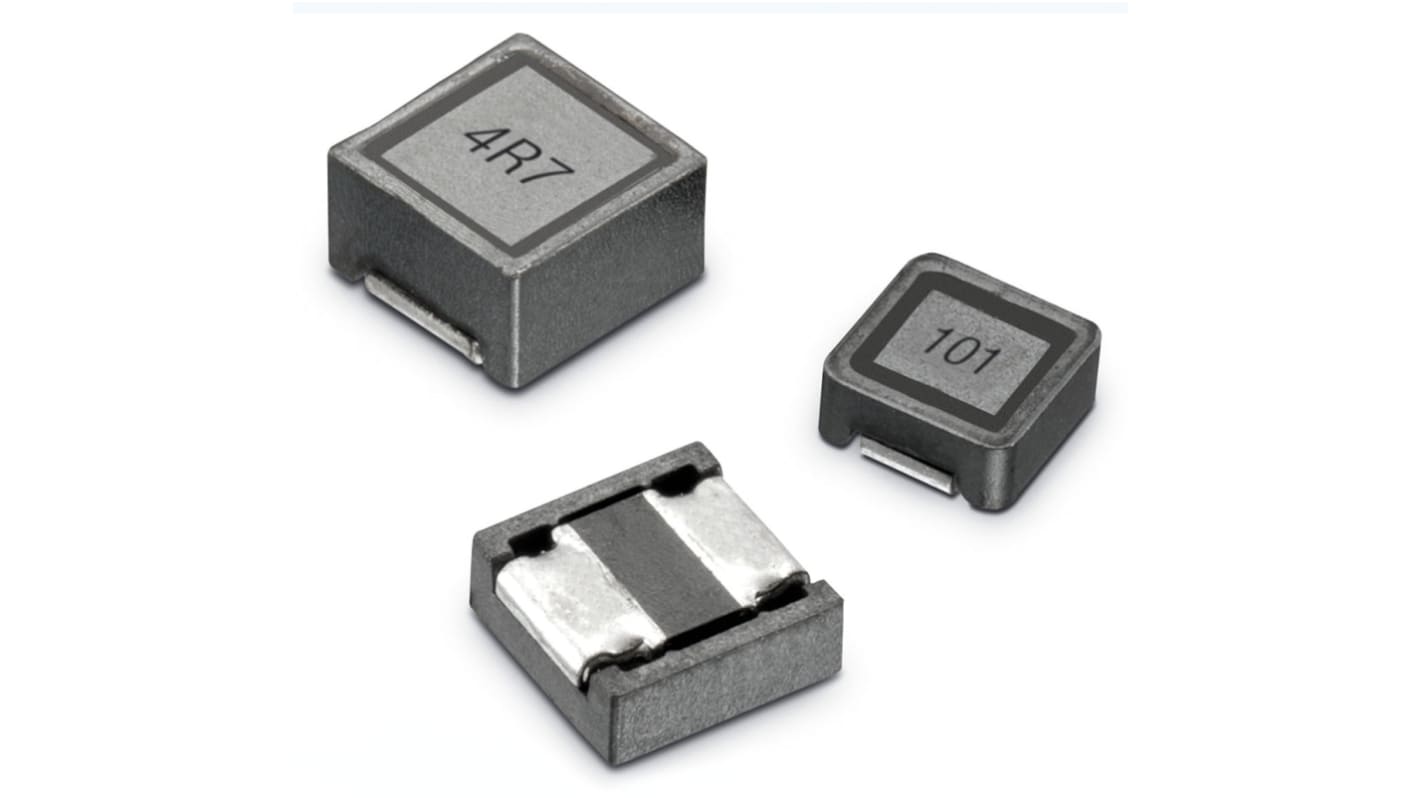

Wurth, WE-LQFS, 3818 Shielded Wire-wound SMD Inductor 47 μH ±30% Wire-Wound 450mA Idc

View all Surface Mount Inductors
Save 29% when you buy 1000 units

Subtotal (1 pack of 10 units)*

£8.32

(exc. VAT)

£9.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 90£0.832£8.32
100 - 190£0.749£7.49
200 - 490£0.687£6.87
500 - 990£0.624£6.24
1000 +£0.583£5.83

*price indicative

RS Stock No.:
135-4894
Mfr. Part No.:
74406032470
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Inductance

47 μH

Maximum DC Current

450mA

Package/Case

3818

Length

3.8mm

Depth

3.8mm

Height

1.8mm

Dimensions

3.8 x 3.8 x 1.8mm

Shielded

Yes

Tolerance

±30%

Maximum DC Resistance

1000mΩ

Series

WE-LQFS

Maximum Self Resonant Frequency

25MHz

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

Inductor Construction

Wire-Wound

COO (Country of Origin):
CN

WE-LQFS Series WE-LQFS SMD Shielded Tiny Power Inductors


WE-LQFS SMD Shielded Tiny Power Inductors, available in size 3818, 4818, and 4828, has a shielding core around the windings to attenuate EMI emissions. These inductors have 20% inductance tolerance and up to 30% higher ISAT than the WE-TPC series.operating temperature 40 ºC to +125 ºC

Applications


High efficiency switching controllers
Integrated DC-DC converters
Portable devices (Smartphone, digital cameras, tablet, etc.)
Embedded laptops and PCs


Wurth Non Standard SMT Inductors (Chokes)
