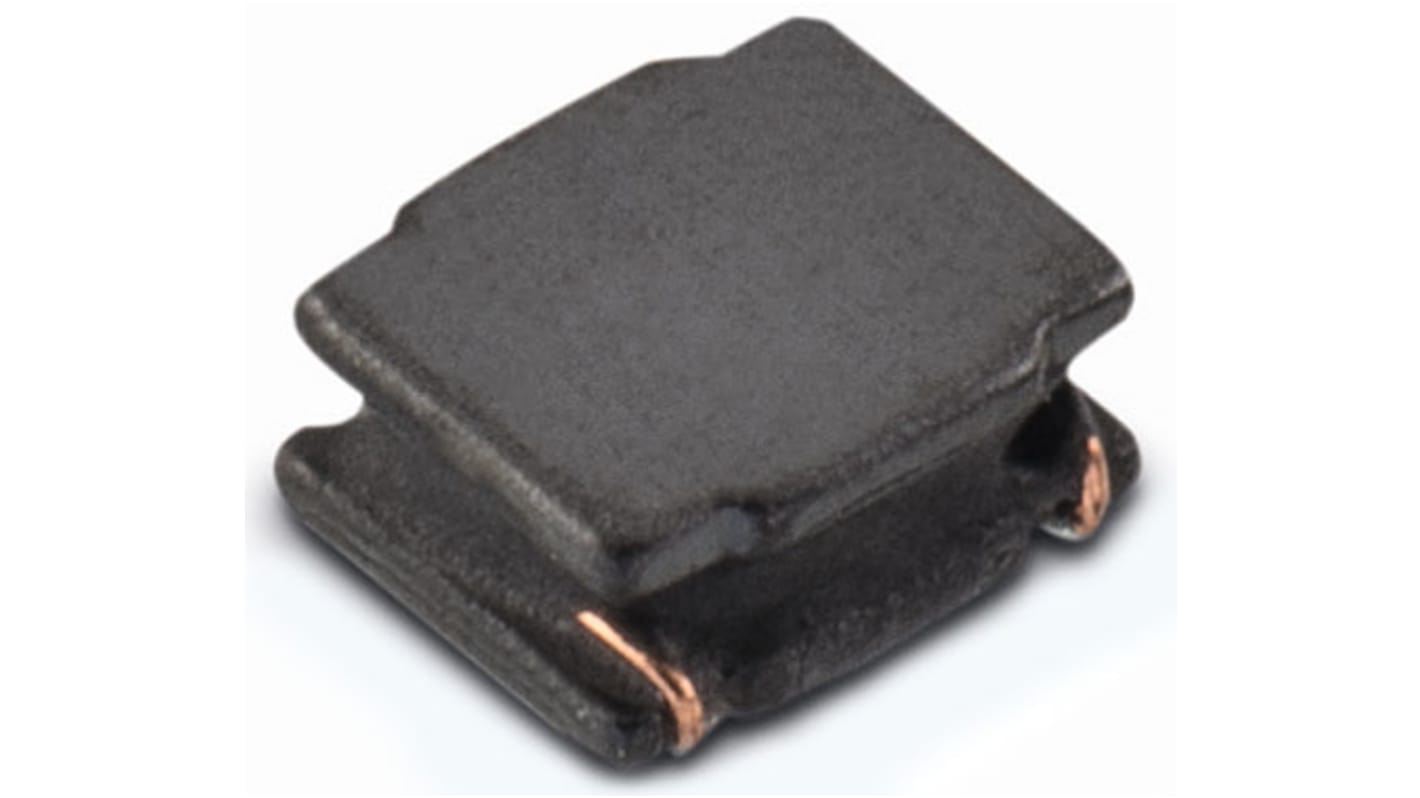

Wurth, WE-LQS, 2010 (5025M) Shielded Wire-wound SMD Inductor 3.3 μH ±20% Wire-Wound 870mA Idc
- RS Stock No.:
- 135-4871
- Mfr. Part No.:
- 74404020033
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 pack of 10 units)*
£5.00
(exc. VAT)
£6.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 90 | £0.50 | £5.00 |
100 - 190 | £0.45 | £4.50 |
200 - 490 | £0.412 | £4.12 |
500 - 990 | £0.375 | £3.75 |
1000 + | £0.35 | £3.50 |
*price indicative
- RS Stock No.:
- 135-4871
- Mfr. Part No.:
- 74404020033
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 3.3 μH | |
Maximum DC Current | 870mA | |
Package/Case | 2010 (5025M) | |
Length | 2mm | |
Depth | 1.6mm | |
Height | 1mm | |
Dimensions | 2 x 1.6 x 1mm | |
Shielded | Yes | |
Tolerance | ±20% | |
Maximum DC Resistance | 279mΩ | |
Series | WE-LQS | |
Maximum Self Resonant Frequency | 78MHz | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +125°C | |
Inductor Construction | Wire-Wound | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 3.3 μH | ||
Maximum DC Current 870mA | ||
Package/Case 2010 (5025M) | ||
Length 2mm | ||
Depth 1.6mm | ||
Height 1mm | ||
Dimensions 2 x 1.6 x 1mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Maximum DC Resistance 279mΩ | ||
Series WE-LQS | ||
Maximum Self Resonant Frequency 78MHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
Inductor Construction Wire-Wound | ||
- COO (Country of Origin):
- CN
WE-LQS Series Magnetically Shielded Power Inductors
Wurth Elektronic LQ-S power inductors feature a robust, compact design and can manage 1.7 times more current than the unshielded equivalent. They act as integrated DC/DC converters and the larger sizes can be used in shock resisting circuits. Suitable uses for these power inductors include switching controllers that require high efficiency and portable power applications including PDAs, smartphones, digital cameras and TVs.
Applications
Magnetically shielded
Low RDC
Low RDC
Wurth Non Standard SMT Inductors (Chokes)
