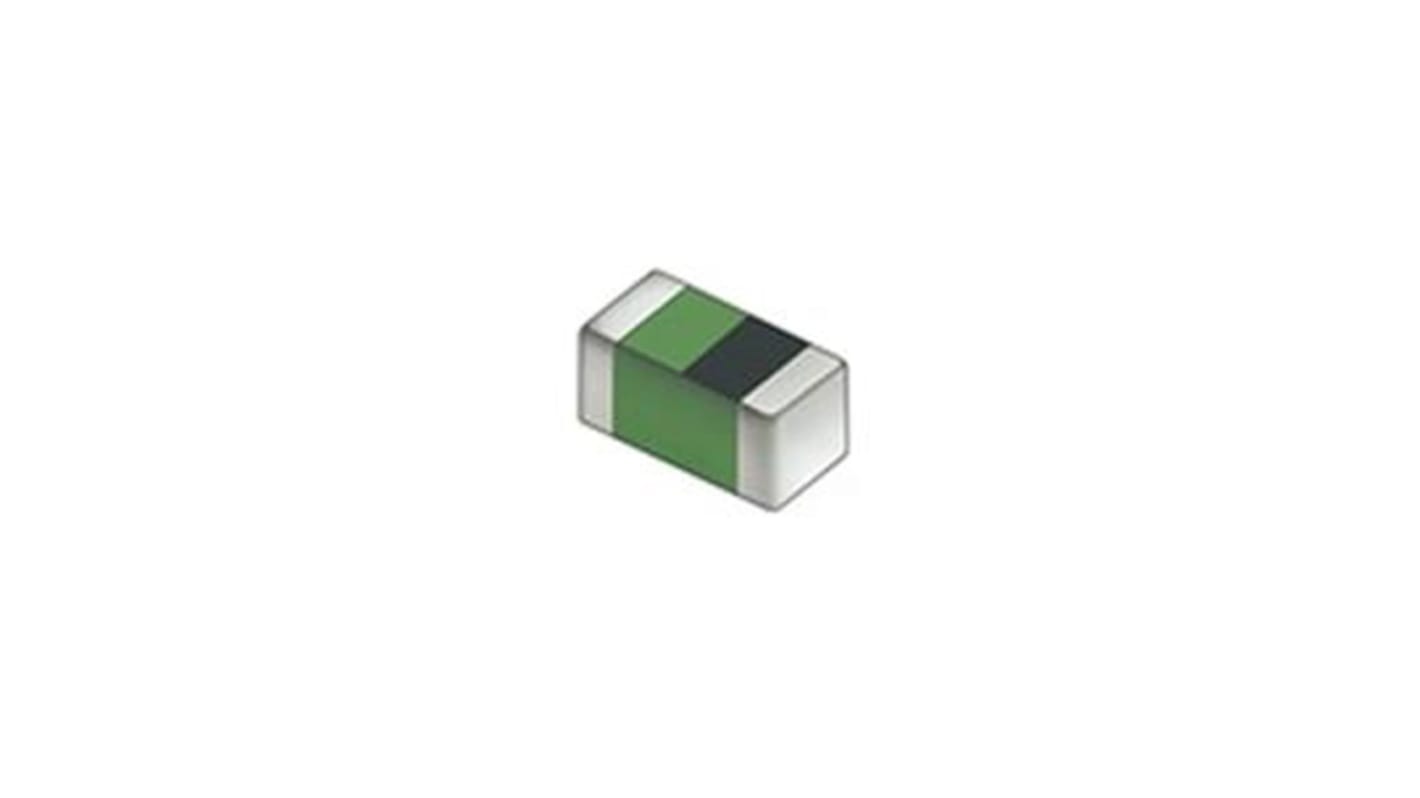

Murata, LQG15HN, 0402 (1005M) Multilayer Surface Mount Inductor 8.2 nH ±5% Multilayer 300mA Idc Q:8

View all Surface Mount Inductors
Bulk discount available

Subtotal (1 pack of 200 units)*

£4.20

(exc. VAT)

£5.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 600 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
200 - 800£0.021£4.20
1000 - 2800£0.018£3.60
3000 - 4800£0.016£3.20
5000 - 9800£0.014£2.80
10000 +£0.013£2.60

*price indicative

Packaging Options:
RS Stock No.:
104-8578
Mfr. Part No.:
LQG15HN8N2J02D
Brand:
Murata
Find similar products by selecting one or more attributes.
Select all

Brand

Murata

Inductance

8.2 nH

Maximum DC Current

300mA

Package/Case

0402 (1005M)

Length

1mm

Depth

0.5mm

Height

0.5mm

Dimensions

1 x 0.5 x 0.5mm

Tolerance

±5%

Maximum DC Resistance

330mΩ

Series

LQG15HN

Minimum Quality Factor

8

Inductor Construction

Multilayer

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+125°C

Moulded

Yes

COO (Country of Origin):
JP

Murata 0402 LQG15HN Series High Frequency Chip Inductors


LQG15HN SMD inductors from Murata feature a multilayer construction. Despite a lower Q factor than wire wound equivalents, the multilayer construction provides excellent balance between rated current, size and L value tolerance among others.

LQGH15HS SMD inductors are highly reliable and suitable for application in chokes, WLAN networks, RF circuit matching and mobile communication equipment resonance.

Can be used in high frequency circuits
Excellent stability at high frequencies
Monolithic structure
