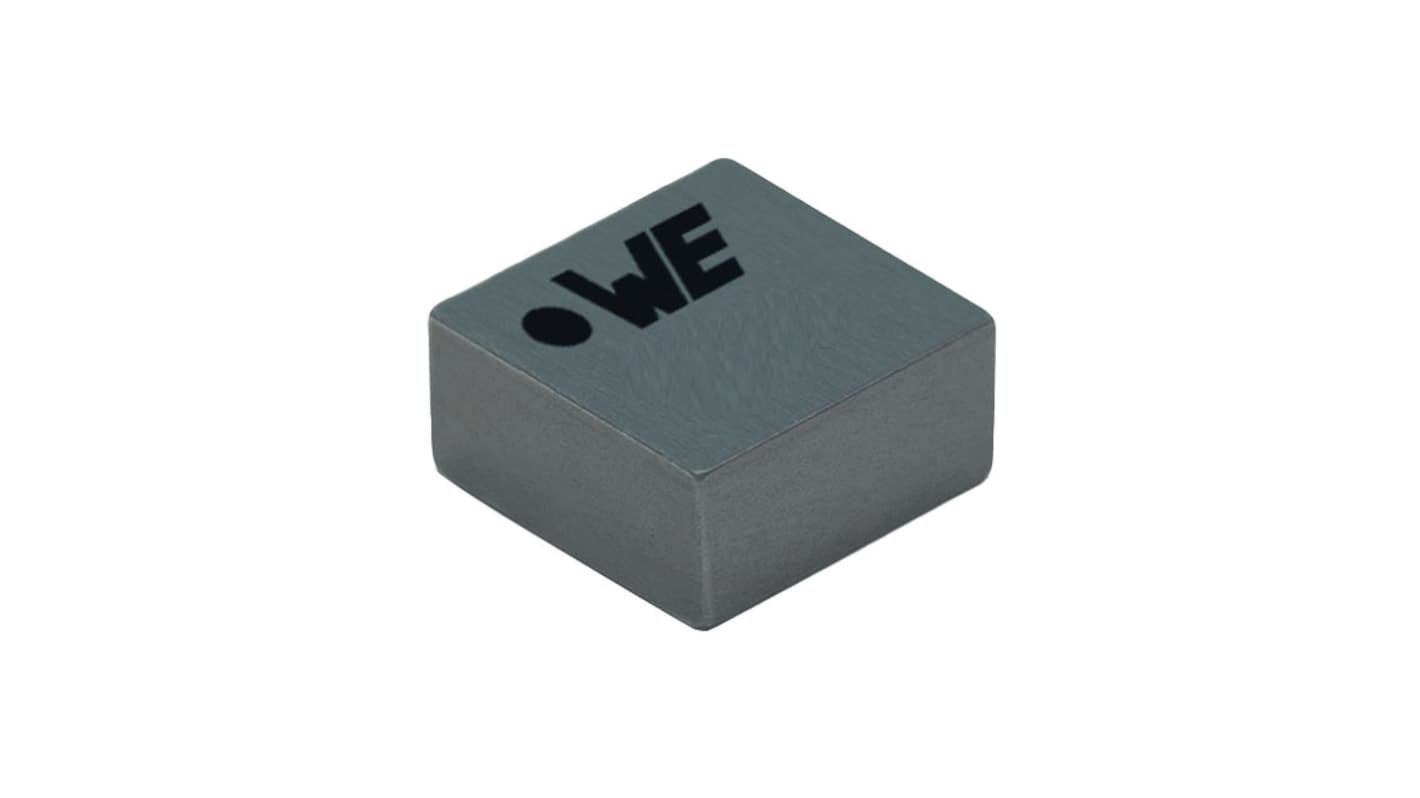

Wurth Elektronik, WE-MAPI, 5030 Shielded Surface Mount Inductor with a Polystyrene Core, 330 nH ±30 % 21.6 A Idc
- RS Stock No.:
- 636-349
- Mfr. Part No.:
- 744383670033
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 5 units)*
£7.88
(exc. VAT)
£9.455
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 700 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.576 | £7.88 |
| 50 - 245 | £1.276 | £6.38 |
| 250 - 495 | £0.978 | £4.89 |
| 500 + | £0.788 | £3.94 |
*price indicative
- RS Stock No.:
- 636-349
- Mfr. Part No.:
- 744383670033
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 330nH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 21.6A | |
| Package/Case | 5030 | |
| Packaging | Tape & Reel | |
| Length | 5.4mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 3.2mΩ | |
| Inductance Tolerance | ±30 % | |
| Maximum Operating Temperature | 125°C | |
| Series | WE-MAPI | |
| Height | 3.1mm | |
| Depth | 3.1mm | |
| Diameter | 3.1mm | |
| Standards/Approvals | RoHS (2011/65/EU&2015/863), REACH (EC 1907/2006), Halogen-Free (JEDEC JS709B,IEC 61249-2-21) | |
| Core Material | Polystyrene | |
| Maximum Self Resonant Frequency | 108MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 330nH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 21.6A | ||
Package/Case 5030 | ||
Packaging Tape & Reel | ||
Length 5.4mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 3.2mΩ | ||
Inductance Tolerance ±30 % | ||
Maximum Operating Temperature 125°C | ||
Series WE-MAPI | ||
Height 3.1mm | ||
Depth 3.1mm | ||
Diameter 3.1mm | ||
Standards/Approvals RoHS (2011/65/EU&2015/863), REACH (EC 1907/2006), Halogen-Free (JEDEC JS709B,IEC 61249-2-21) | ||
Core Material Polystyrene | ||
Maximum Self Resonant Frequency 108MHz | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- SK
The Wurth Elektronik Power Inductor features a magnetic iron alloy that allows for high rated currents. It has a compact design and is magnetically shielded. The operating temperature ranges from –40 °C to 125 °C. Applications include DC/DC converters for high current power supplies, Field Programmable Gate Arrays (FPGA), POL converters, and portable power devices such as PDAs and digital cameras.
High current capability and handles high transient current spikes
Low acoustic noise and low leakage flux noise
AEC Q 200 qualified
