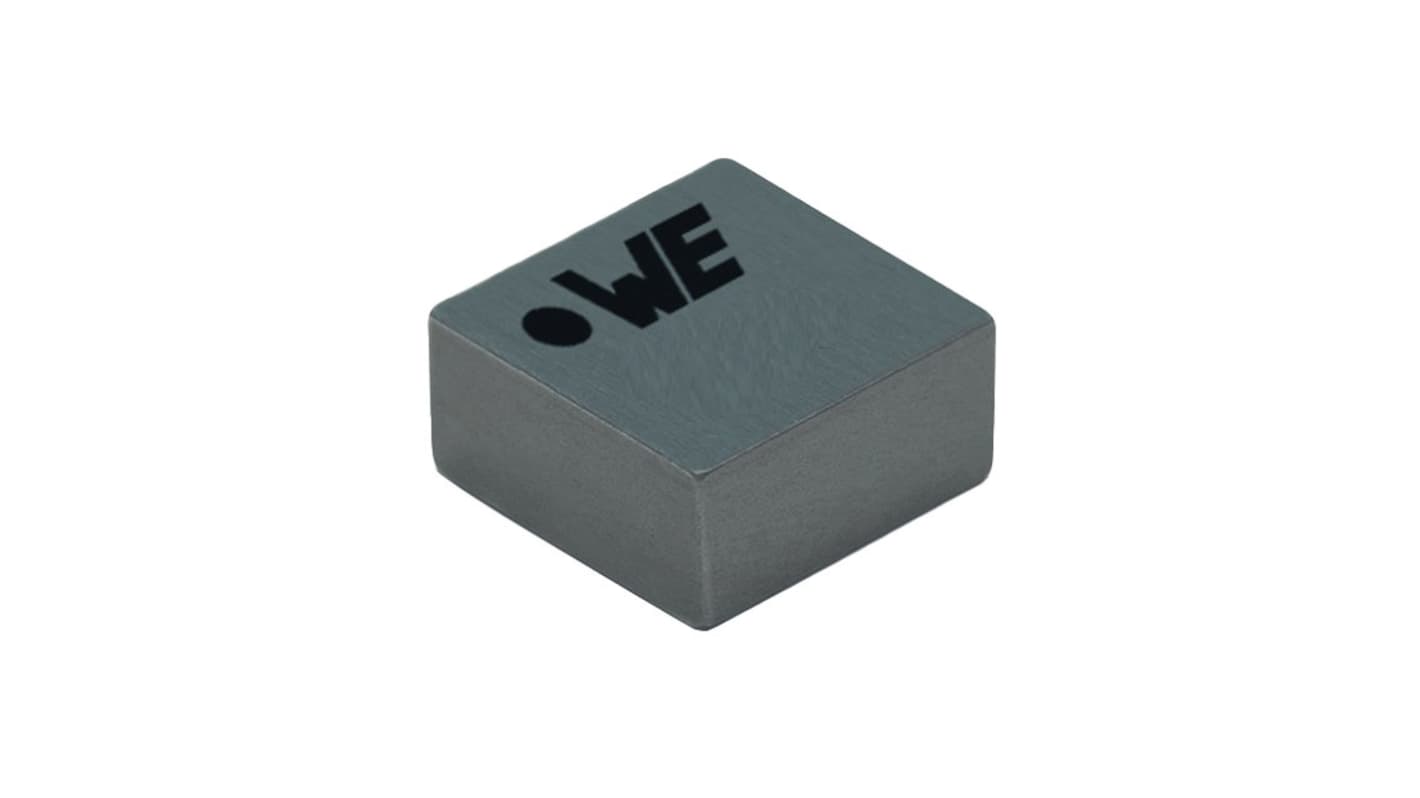

Wurth Elektronik, WE-MAPI, 5030 Shielded Surface Mount Inductor with a Polystyrene Core, 130 nH ±30 % 27.4 A Idc
- RS Stock No.:
- 636-348
- Mfr. Part No.:
- 744383670013
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 5 units)*
£7.88
(exc. VAT)
£9.455
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3,495 unit(s) shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.576 | £7.88 |
| 50 - 245 | £1.276 | £6.38 |
| 250 - 495 | £0.978 | £4.89 |
| 500 + | £0.788 | £3.94 |
*price indicative
- RS Stock No.:
- 636-348
- Mfr. Part No.:
- 744383670013
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Surface Mount Inductor | |
| Inductance | 130nH | |
| Maximum DC Current | 27.4A | |
| Package/Case | 5030 | |
| Length | 5.4mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 1.6mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±30 % | |
| Series | WE-MAPI | |
| Depth | 3.1mm | |
| Diameter | 3.1mm | |
| Height | 3.1mm | |
| Standards/Approvals | RoHS 2011, 2006, 863, EU&2015, Halogen Free IEC 61249-2-21, Halogen Free JEDEC JS709B, REACH EC1907 | |
| Core Material | Polystyrene | |
| Maximum Self Resonant Frequency | 189MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Surface Mount Inductor | ||
Inductance 130nH | ||
Maximum DC Current 27.4A | ||
Package/Case 5030 | ||
Length 5.4mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 1.6mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±30 % | ||
Series WE-MAPI | ||
Depth 3.1mm | ||
Diameter 3.1mm | ||
Height 3.1mm | ||
Standards/Approvals RoHS 2011, 2006, 863, EU&2015, Halogen Free IEC 61249-2-21, Halogen Free JEDEC JS709B, REACH EC1907 | ||
Core Material Polystyrene | ||
Maximum Self Resonant Frequency 189MHz | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- SK
The Wurth Elektronik Power Inductor features a magnetic iron alloy that allows for high rated currents. It has a compact design and is magnetically shielded. The operating temperature ranges from –40 °C to 125 °C. Applications include DC/DC converters for high current power supplies, Field Programmable Gate Arrays (FPGA), POL converters, and portable power devices such as PDAs and digital cameras.
High current capability and handles high transient current spikes
Low acoustic noise and low leakage flux noise
AEC Q 200 qualified
