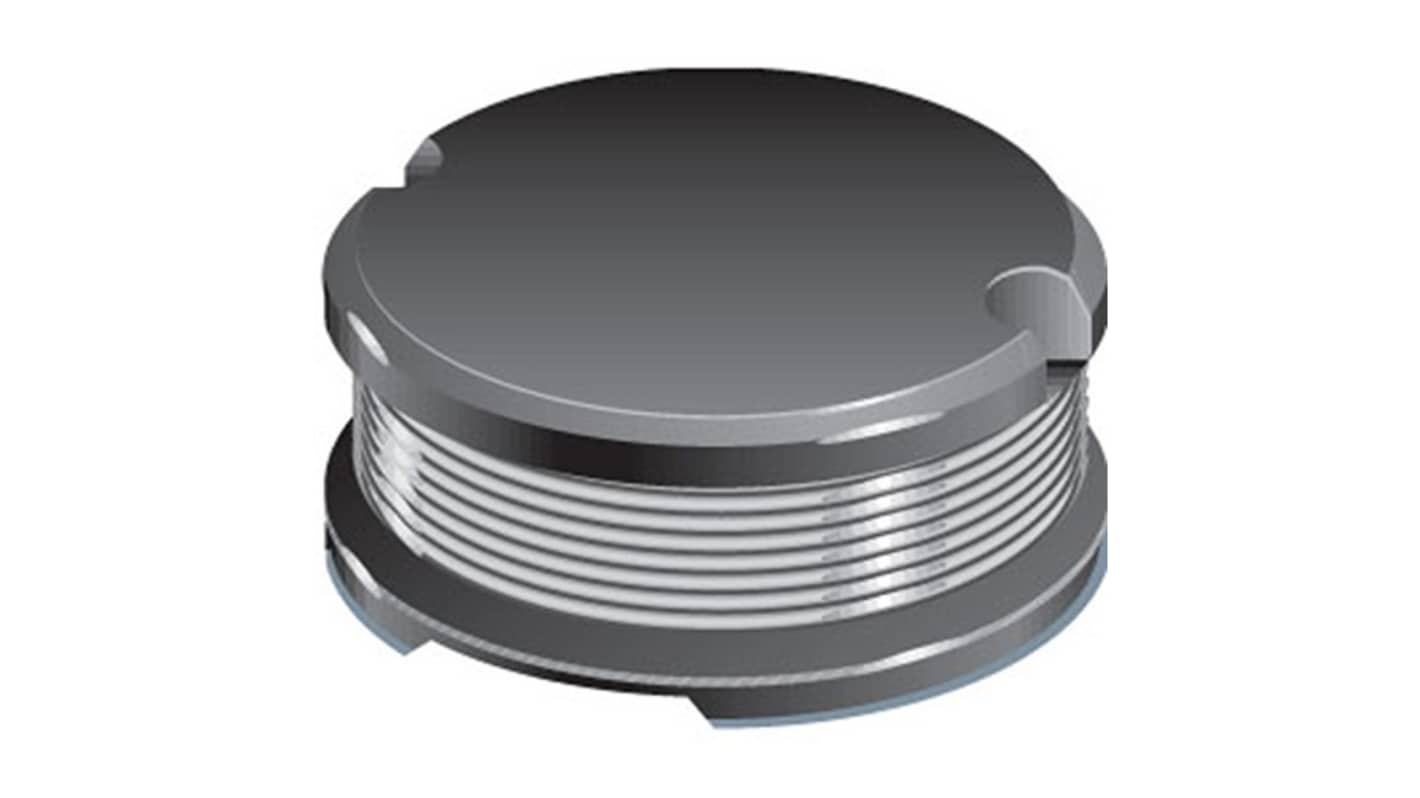

Bourns, SDR1307, 1307 Unshielded Power Inductor with a Ferrite DR Core, 4.7 μH Ferrite Core ±20 % 7 A Idc Q:25
- RS Stock No.:
- 466-300
- Mfr. Part No.:
- SDR1307-4R7ML
- Brand:
- Bourns
Subtotal (1 bag of 2 units)*
£1.13
(exc. VAT)
£1.356
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 + | £0.565 | £1.13 |
*price indicative
- RS Stock No.:
- 466-300
- Mfr. Part No.:
- SDR1307-4R7ML
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Power Inductor | |
| Inductance | 4.7μH | |
| Maximum DC Current | 7A | |
| Package/Case | 1307 | |
| Length | 13mm | |
| Automotive Standard | No | |
| Shielding | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 1600.0mΩ | |
| Inductance Tolerance | ±20 % | |
| Series | SDR1307 | |
| Maximum Operating Temperature | 125°C | |
| Depth | 13mm | |
| Diameter | 13mm | |
| Height | 13mm | |
| Core Material | Ferrite DR | |
| Standards/Approvals | EC, EU, RoHS Directive 2002, RoHS Recast 2011, 95 | |
| Maximum Self Resonant Frequency | 7.96MHz | |
| Inductor Construction | Ferrite Core | |
| Minimum Quality Factor | 25 | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Power Inductor | ||
Inductance 4.7μH | ||
Maximum DC Current 7A | ||
Package/Case 1307 | ||
Length 13mm | ||
Automotive Standard No | ||
Shielding No | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 1600.0mΩ | ||
Inductance Tolerance ±20 % | ||
Series SDR1307 | ||
Maximum Operating Temperature 125°C | ||
Depth 13mm | ||
Diameter 13mm | ||
Height 13mm | ||
Core Material Ferrite DR | ||
Standards/Approvals EC, EU, RoHS Directive 2002, RoHS Recast 2011, 95 | ||
Maximum Self Resonant Frequency 7.96MHz | ||
Inductor Construction Ferrite Core | ||
Minimum Quality Factor 25 | ||
- COO (Country of Origin):
- CN
The Bourns SMD power inductors are available in the E12 series, offering a broad selection of inductance values. Their small design, with a maximum diameter of just 13 mm, makes them perfect for compact applications while delivering reliable performance.
RoHS compliant
