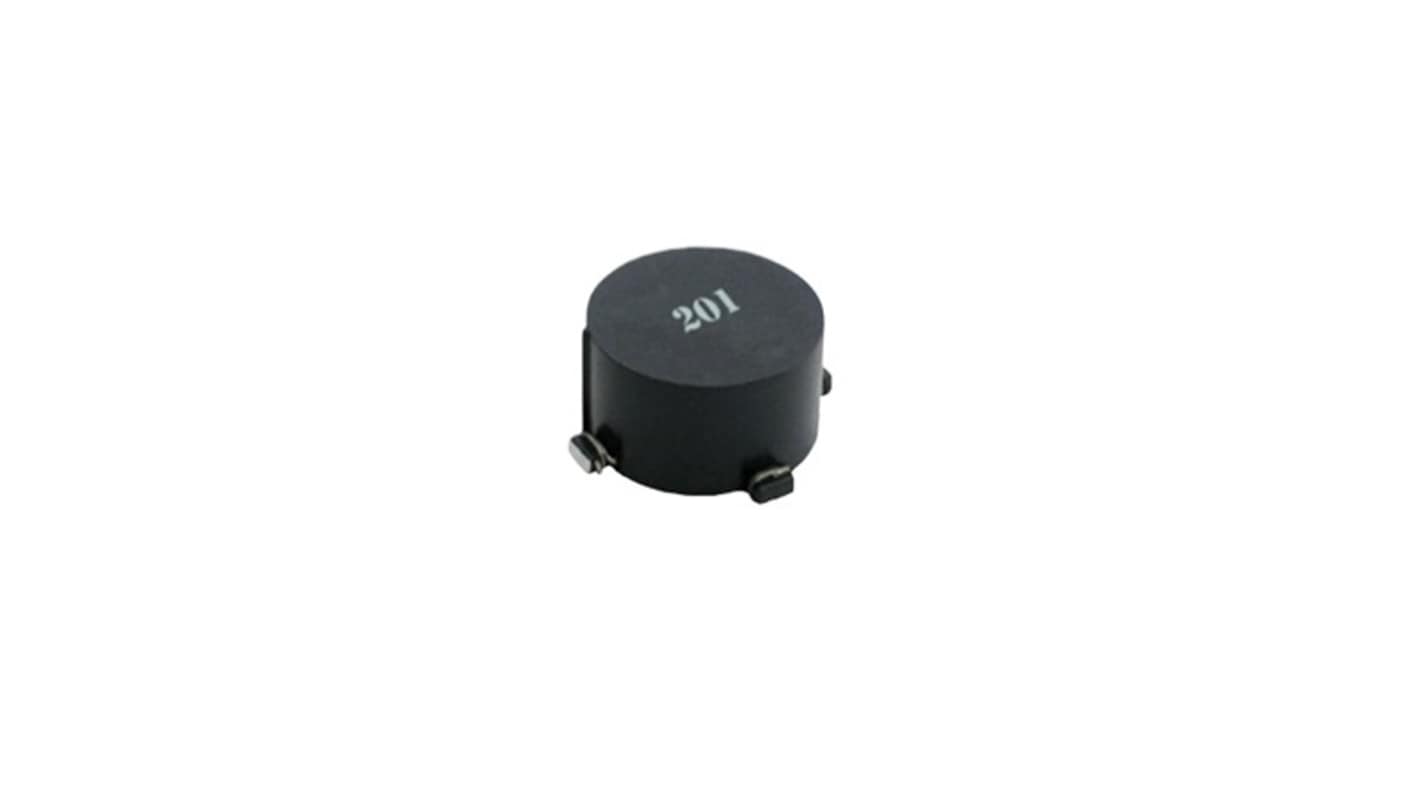

Bourns, PM3700 Unshielded Surface Mount Common Mode Choke with a Ferrite Core, 500 nH Ferrite Core 6 A Idc
- RS Stock No.:
- 466-203
- Mfr. Part No.:
- PM3700-20-RC
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 2 units)*
£3.68
(exc. VAT)
£4.42
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 200 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 - 18 | £1.84 | £3.68 |
| 20 - 98 | £1.495 | £2.99 |
| 100 - 198 | £1.14 | £2.28 |
| 200 + | £1.095 | £2.19 |
*price indicative
- RS Stock No.:
- 466-203
- Mfr. Part No.:
- PM3700-20-RC
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Surface Mount Common Mode Choke | |
| Inductance | 500nH | |
| Maximum DC Current | 6A | |
| Package/Case | Surface Mount | |
| Length | 21.6mm | |
| Automotive Standard | No | |
| Shielding | No | |
| Maximum DC Resistance | 0.25Ω | |
| Pin Count | 4 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Series | PM3700 | |
| Core Material | Ferrite | |
| Standards/Approvals | RoHS | |
| Height | 11.43mm | |
| Diameter | 11.43mm | |
| Depth | 11.43mm | |
| Termination Style | Tin/Silver/Copper Alloy | |
| Inductor Construction | Ferrite Core | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Surface Mount Common Mode Choke | ||
Inductance 500nH | ||
Maximum DC Current 6A | ||
Package/Case Surface Mount | ||
Length 21.6mm | ||
Automotive Standard No | ||
Shielding No | ||
Maximum DC Resistance 0.25Ω | ||
Pin Count 4 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Series PM3700 | ||
Core Material Ferrite | ||
Standards/Approvals RoHS | ||
Height 11.43mm | ||
Diameter 11.43mm | ||
Depth 11.43mm | ||
Termination Style Tin/Silver/Copper Alloy | ||
Inductor Construction Ferrite Core | ||
- COO (Country of Origin):
- CN
The Bourns SMD common mode chokes are suitable for high power applications. They come in tape and reel packaging for easy handling and automated assembly.
RoHS compliant
Compact size
