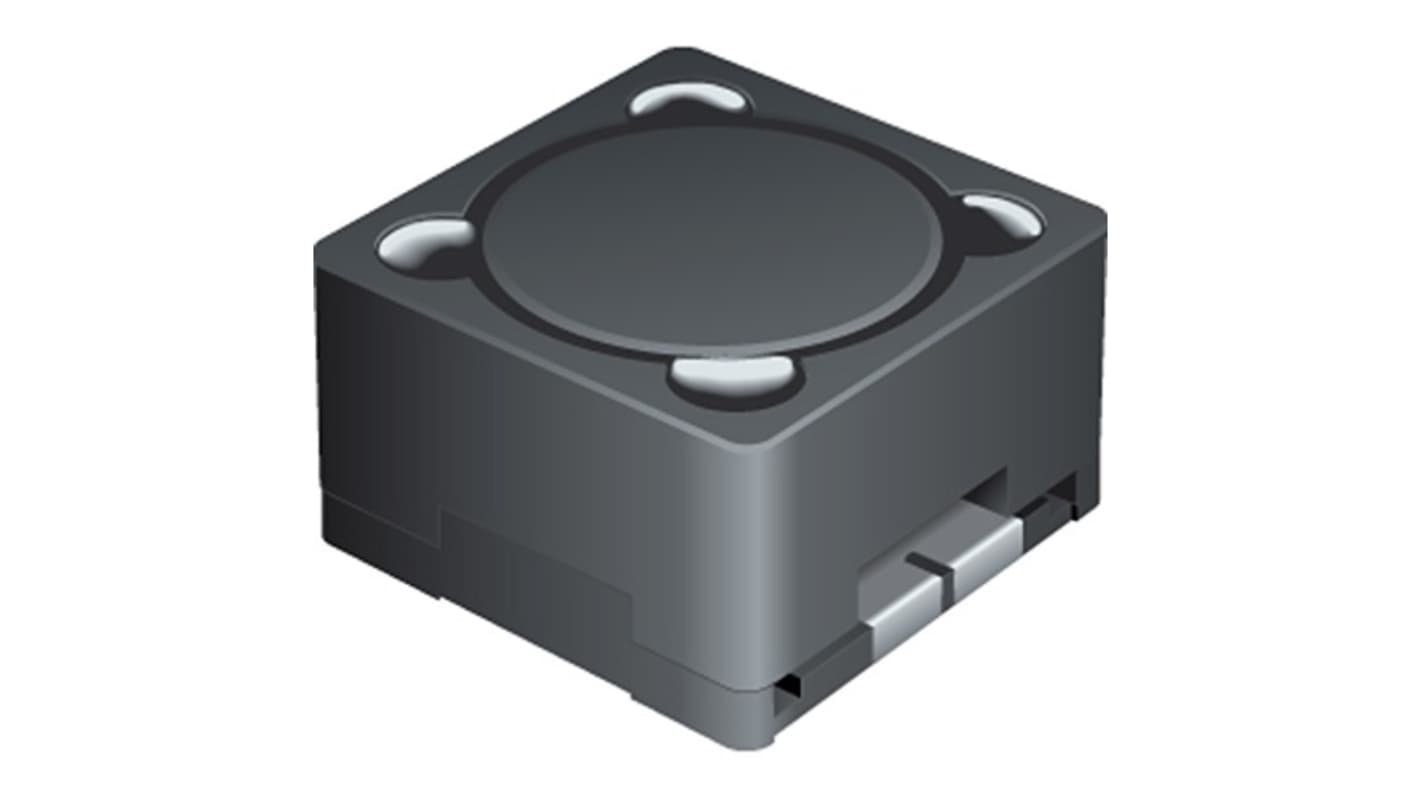

Bourns, SRR1208, 1208 Shielded Power Inductor with a Ferrite Core, 1.2 mH ±10 % 3 A Idc Q:10
- RS Stock No.:
- 466-157
- Mfr. Part No.:
- SRR1208-122KL
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 2 units)*
£1.35
(exc. VAT)
£1.62
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 168 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 - 18 | £0.675 | £1.35 |
| 20 - 48 | £0.57 | £1.14 |
| 50 - 198 | £0.355 | £0.71 |
| 200 - 998 | £0.345 | £0.69 |
| 1000 + | £0.34 | £0.68 |
*price indicative
- RS Stock No.:
- 466-157
- Mfr. Part No.:
- SRR1208-122KL
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Power Inductor | |
| Inductance | 1.2mH | |
| Maximum DC Current | 3A | |
| Package/Case | 1208 | |
| Length | 12.7mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 1.65Ω | |
| Inductance Tolerance | ±10 % | |
| Series | SRR1208 | |
| Maximum Operating Temperature | 125°C | |
| Diameter | 12.7mm | |
| Standards/Approvals | RoHS Compliant | |
| Core Material | Ferrite | |
| Height | 12.7mm | |
| Depth | 12.7mm | |
| Maximum Self Resonant Frequency | 37MHz | |
| Minimum Quality Factor | 10 | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Power Inductor | ||
Inductance 1.2mH | ||
Maximum DC Current 3A | ||
Package/Case 1208 | ||
Length 12.7mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 1.65Ω | ||
Inductance Tolerance ±10 % | ||
Series SRR1208 | ||
Maximum Operating Temperature 125°C | ||
Diameter 12.7mm | ||
Standards/Approvals RoHS Compliant | ||
Core Material Ferrite | ||
Height 12.7mm | ||
Depth 12.7mm | ||
Maximum Self Resonant Frequency 37MHz | ||
Minimum Quality Factor 10 | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- CN
The Bourns Shielded high power inductors, available in the E6 series, feature a unit height of 8.5 mm, making them suitable for compact designs. They are ideal for high performance power applications that require efficient energy transfer and reliable operation.
RoHS compliant
