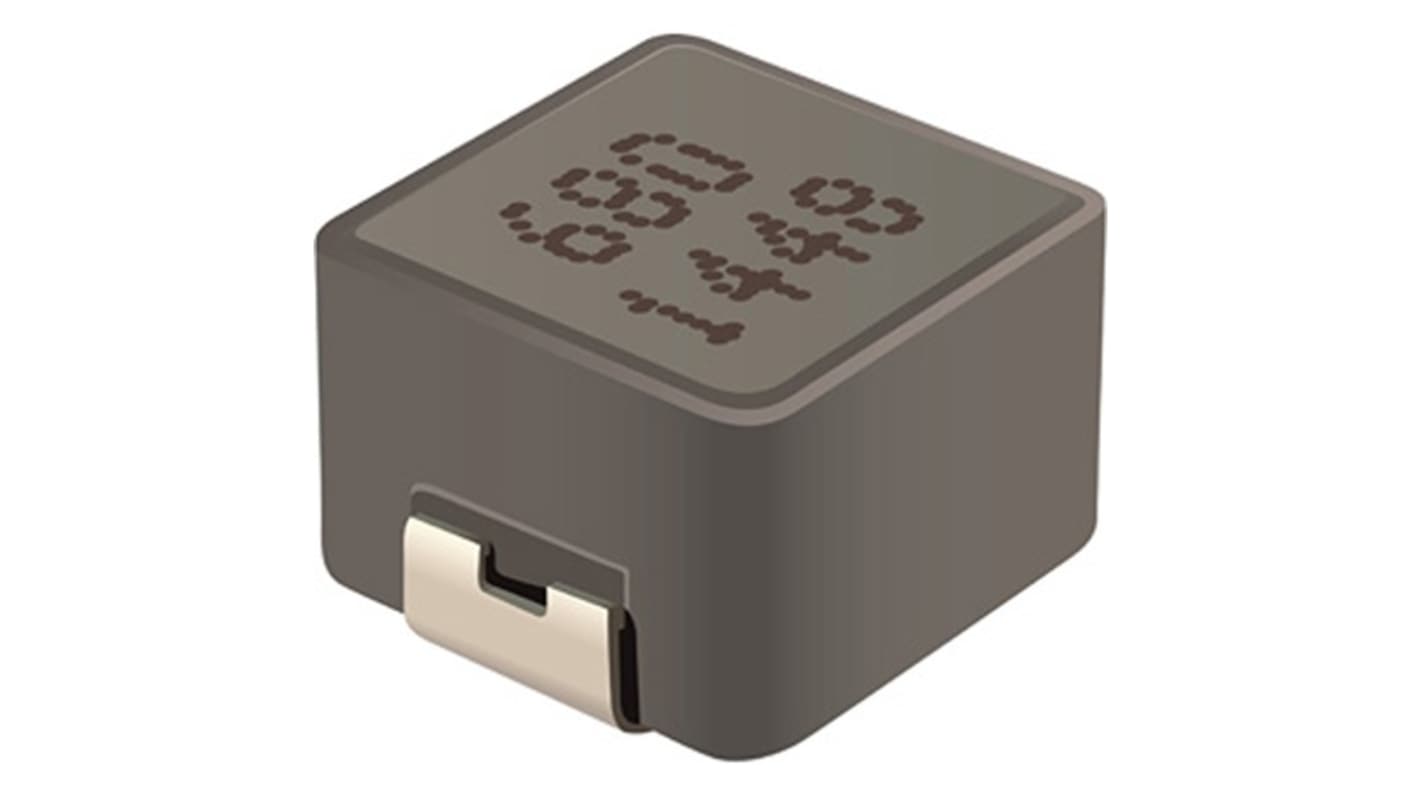

Bourns, SRP7050TA, 7050 Shielded Power Inductor with a Carbonyl Powder Core, 15 μH ±20 % 3.5 A Idc Q:15
- RS Stock No.:
- 466-143
- Mfr. Part No.:
- SRP7050TA-150M
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 2 units)*
£1.61
(exc. VAT)
£1.932
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 - 18 | £0.805 | £1.61 |
| 20 - 48 | £0.675 | £1.35 |
| 50 - 198 | £0.42 | £0.84 |
| 200 - 998 | £0.41 | £0.82 |
| 1000 + | £0.40 | £0.80 |
*price indicative
- RS Stock No.:
- 466-143
- Mfr. Part No.:
- SRP7050TA-150M
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Power Inductor | |
| Inductance | 15μH | |
| Maximum DC Current | 3.5A | |
| Package/Case | 7050 | |
| Length | 7.3mm | |
| Packaging | 800 pieces per 13 in Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 445mΩ | |
| Minimum Operating Temperature | -55°C | |
| Inductance Tolerance | ±20 % | |
| Series | SRP7050TA | |
| Maximum Operating Temperature | 150°C | |
| Core Material | Carbonyl Powder | |
| Depth | 6.6mm | |
| Height | 6.6mm | |
| Standards/Approvals | AEC-Q200, RoHS, Halogen Free | |
| Diameter | 6.6mm | |
| Maximum Self Resonant Frequency | 100MHz | |
| Inductor Construction | Shielded | |
| Minimum Quality Factor | 15 | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Power Inductor | ||
Inductance 15μH | ||
Maximum DC Current 3.5A | ||
Package/Case 7050 | ||
Length 7.3mm | ||
Packaging 800 pieces per 13 in Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 445mΩ | ||
Minimum Operating Temperature -55°C | ||
Inductance Tolerance ±20 % | ||
Series SRP7050TA | ||
Maximum Operating Temperature 150°C | ||
Core Material Carbonyl Powder | ||
Depth 6.6mm | ||
Height 6.6mm | ||
Standards/Approvals AEC-Q200, RoHS, Halogen Free | ||
Diameter 6.6mm | ||
Maximum Self Resonant Frequency 100MHz | ||
Inductor Construction Shielded | ||
Minimum Quality Factor 15 | ||
- COO (Country of Origin):
- CN
The Bourns Shielded power inductors feature a shielded construction to minimize electromagnetic interference. The carbonyl powder core enables high saturation current handling, makes them versatile for various power applications, ensuring efficient performance and noise reduction.
RoHS compliant
AEC Q200 compliant
