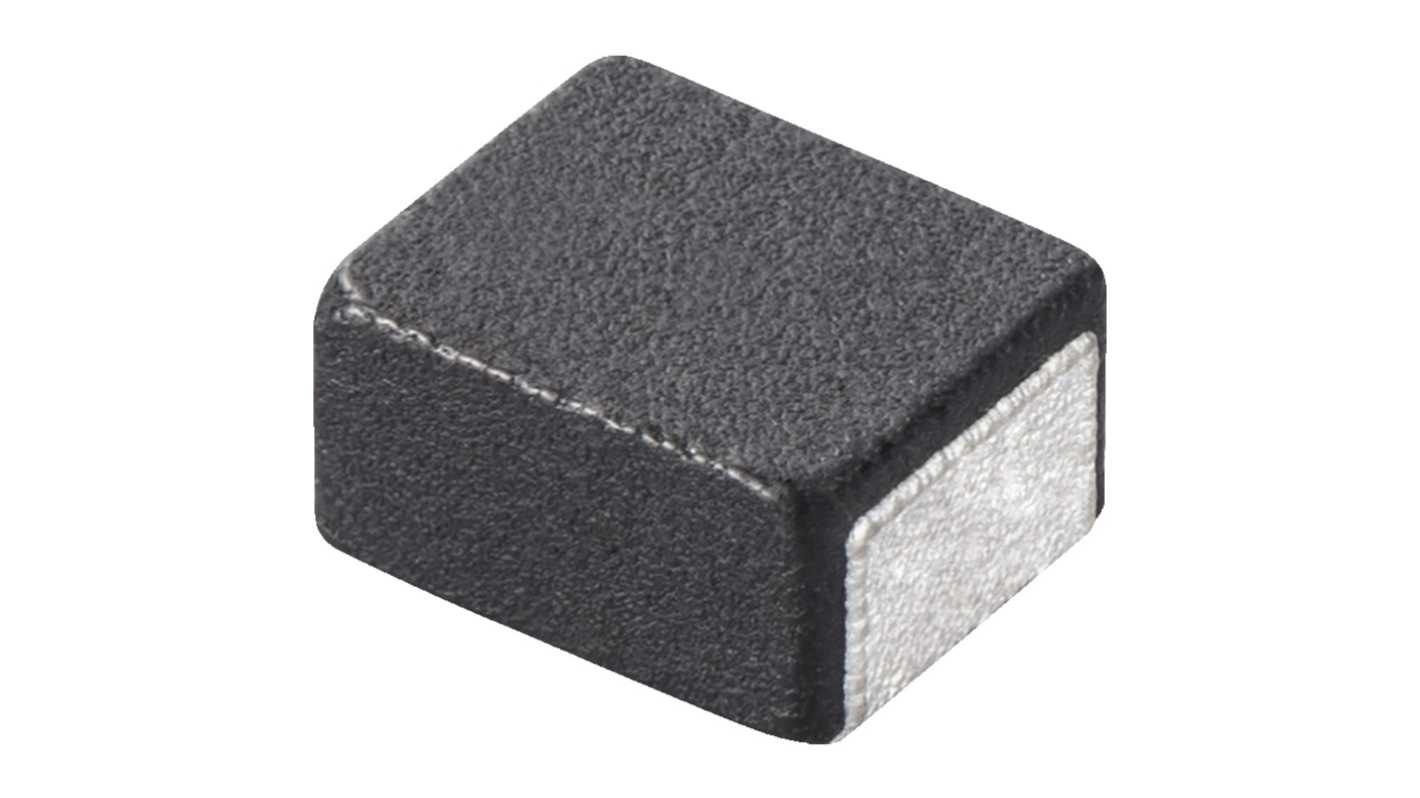

Murata Power Solutions, DFE2MCPH_JL, Embossed Tape Shielded Surface Mount Inductor with a Metal Core, 0.47 μH Shielded

View all Surface Mount Inductors
Bulk discount available

Subtotal (1 bag of 10 units)*

£2.19

(exc. VAT)

£2.63

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 2,920 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Bag*
10 - 90£0.219£2.19
100 - 240£0.209£2.09
250 +£0.194£1.94

*price indicative

Packaging Options:
RS Stock No.:
303-932
Mfr. Part No.:
DFE2MCPHR47MJLLQ
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Inductance

0.47μH

Product Type

Surface Mount Inductor

Maximum DC Current

6300mA

Package/Case

Embossed Tape

Length

2mm

Packaging

Embossed Tape

Automotive Standard

AEC-Q200

Shielding

Shielded

Minimum Operating Temperature

-40°C

Maximum DC Resistance

0.022Ω

Maximum Operating Temperature

155°C

Inductance Tolerance

0.47 μH±20%

Series

DFE2MCPH_JL

Core Material

Metal

Standards/Approvals

REACH, RoHS

Height

1.6mm

Depth

1.2mm

Inductor Construction

Shielded

COO (Country of Origin):
VN
The Murata Power Solutions high withstand voltage type metal alloy power inductor is capable of handling large currents. It has a size of 2.0±0.2mm in length, 1.6±0.2mm in width, and 1.2mm in thickness, with a size code of 0806 (2016). The inductance is 0.47μH±20%, tested at a frequency of 1MHz. The rated current (I sat), based on inductance change, is 5400mA (max.) and 6300mA (typ.), while the rated current (Item), based on temperature rise, is 4400mA (max.) and 5500mA (typ.). The DC resistance is 0.019Ω (typ.), and the operating temperature range, including self-temperature rise, is -40°C to 155°C. Without self-temperature rise, the operating temperature range is -40°C to 115°C.

Maximum of DC resistance 0.022Ω

Class of magnetic shield Shielded
