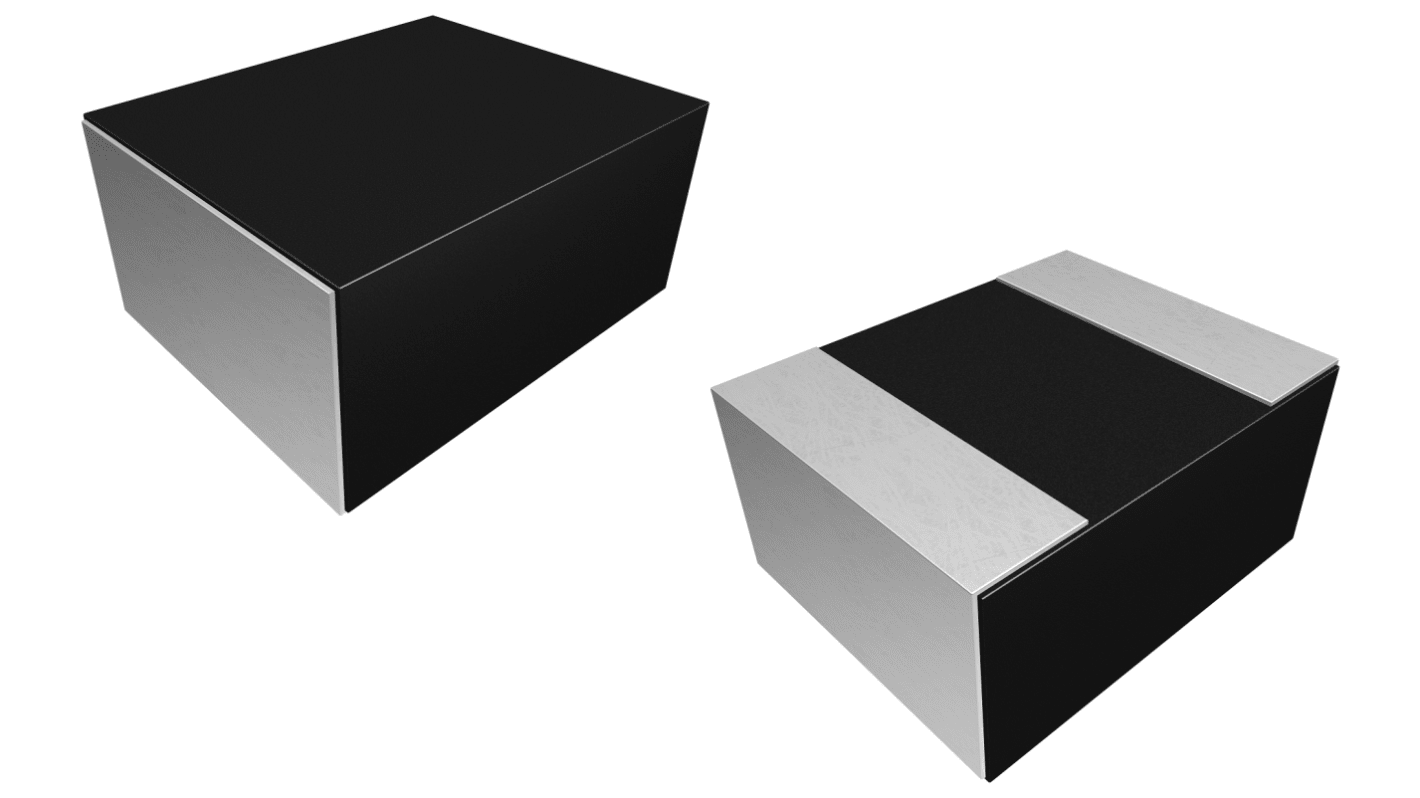

Vishay, IHHP-1008AB-01, ER Shielded Surface Mount Inductor 2.2 μH ±20 % 2.3 A Idc
- RS Stock No.:
- 298-744
- Mfr. Part No.:
- IHHP1008ABER2R2M01
- Brand:
- Vishay
Subtotal (1 bag of 50 units)*
£9.25
(exc. VAT)
£11.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 50 + | £0.185 | £9.25 |
*price indicative
- RS Stock No.:
- 298-744
- Mfr. Part No.:
- IHHP1008ABER2R2M01
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Surface Mount Inductor | |
| Inductance | 2.2μH | |
| Maximum DC Current | 2.3A | |
| Package/Case | ER | |
| Length | 2.5mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 95mΩ | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Series | IHHP-1008AB-01 | |
| Height | 1.2mm | |
| Standards/Approvals | RoHS | |
| Diameter | 1.2mm | |
| Depth | 1.2mm | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Surface Mount Inductor | ||
Inductance 2.2μH | ||
Maximum DC Current 2.3A | ||
Package/Case ER | ||
Length 2.5mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 95mΩ | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Series IHHP-1008AB-01 | ||
Height 1.2mm | ||
Standards/Approvals RoHS | ||
Diameter 1.2mm | ||
Depth 1.2mm | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- CN
The Vishay Power Conductors are high current and low profile inductors. They are magnetic shielded with low acoustic noise and high efficiency. They are used for high current POL converters, battery powered devices and DC/DC converters in distributed power systems.
Magnetic alloy power choke Coil
Miniature 2.5 mm x 2.0 mm
Inductance is 2.2 muH
RoHS compliant
