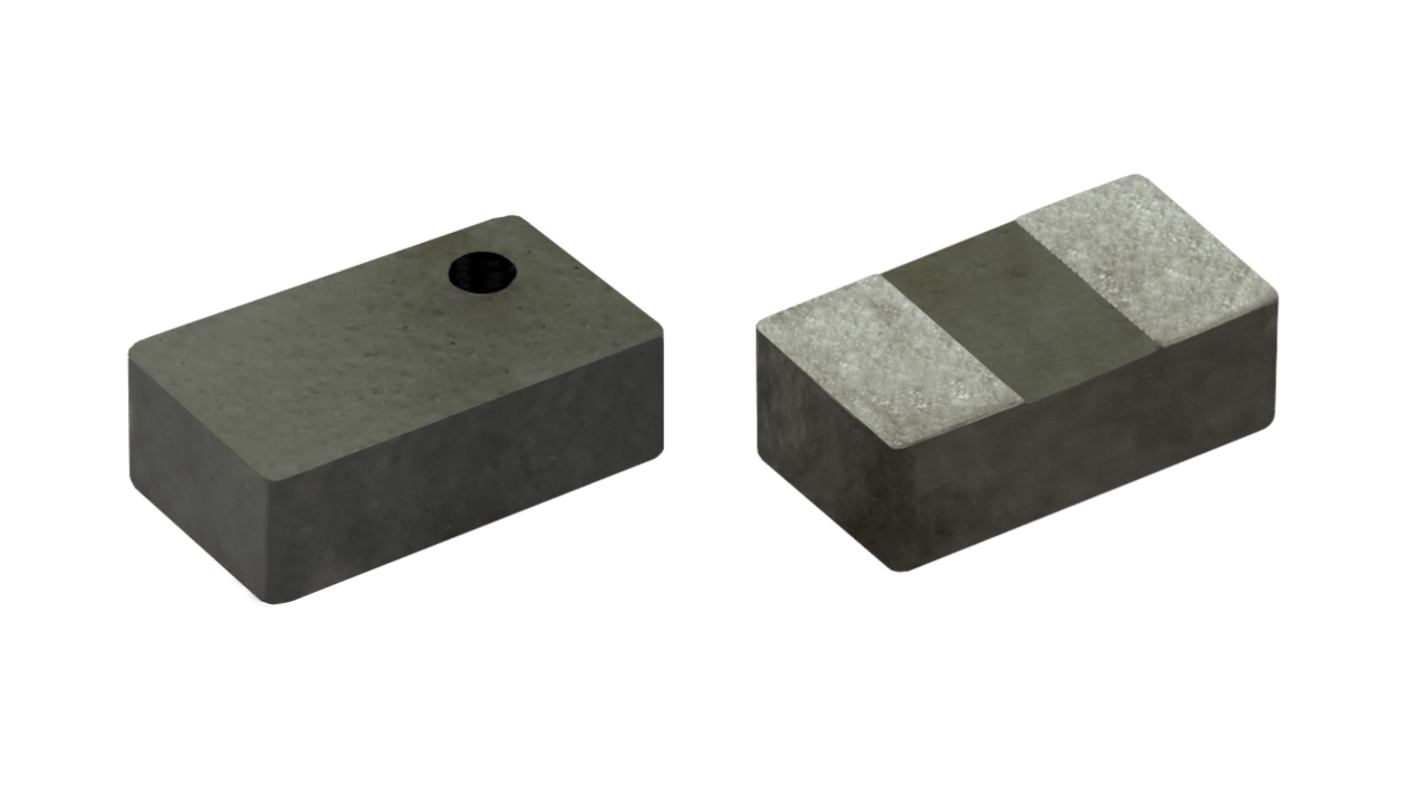

Vishay, IHHP-0805ZH-01, ER Shielded Surface Mount Inductor with a Composite Powdered Iron Core, 1 μH Shielded ±20 % 3.5
- RS Stock No.:
- 298-740
- Mfr. Part No.:
- IHHP0805ZHER1R0M01
- Brand:
- Vishay
Subtotal (1 reel of 3000 units)*
£345.00
(exc. VAT)
£414.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.115 | £345.00 |
*price indicative
- RS Stock No.:
- 298-740
- Mfr. Part No.:
- IHHP0805ZHER1R0M01
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Surface Mount Inductor | |
| Inductance | 1μH | |
| Maximum DC Current | 3.5A | |
| Sub Type | Wirewound Inductor | |
| Package/Case | ER | |
| Packaging | Tape & Reel | |
| Length | 2mm | |
| Automotive Standard | No | |
| Shielding | Shielded | |
| Pin Count | 2 | |
| Maximum DC Resistance | 55mΩ | |
| Minimum Operating Temperature | -55°C | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Series | IHHP-0805ZH-01 | |
| Standards/Approvals | No | |
| Depth | 0.8mm | |
| Height | 0.8mm | |
| Core Material | Composite Powdered Iron | |
| Diameter | 0.8mm | |
| Inductor Construction | Shielded | |
| Moulded | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Surface Mount Inductor | ||
Inductance 1μH | ||
Maximum DC Current 3.5A | ||
Sub Type Wirewound Inductor | ||
Package/Case ER | ||
Packaging Tape & Reel | ||
Length 2mm | ||
Automotive Standard No | ||
Shielding Shielded | ||
Pin Count 2 | ||
Maximum DC Resistance 55mΩ | ||
Minimum Operating Temperature -55°C | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Series IHHP-0805ZH-01 | ||
Standards/Approvals No | ||
Depth 0.8mm | ||
Height 0.8mm | ||
Core Material Composite Powdered Iron | ||
Diameter 0.8mm | ||
Inductor Construction Shielded | ||
Moulded No | ||
- COO (Country of Origin):
- CN
The Vishay Power Conductors are high current and low profile ultra small footprint inductors. They are magnetic shielded with low DCR and core loss for improved efficiency. They are used for portable electronics, tablets and notebook computers and battery powered devices.
Composite powdered iron construction
Miniature 2.0 mm x 1.2 mm x 0.8 mm size
Inductance is 1 muH
RoHS compliant
