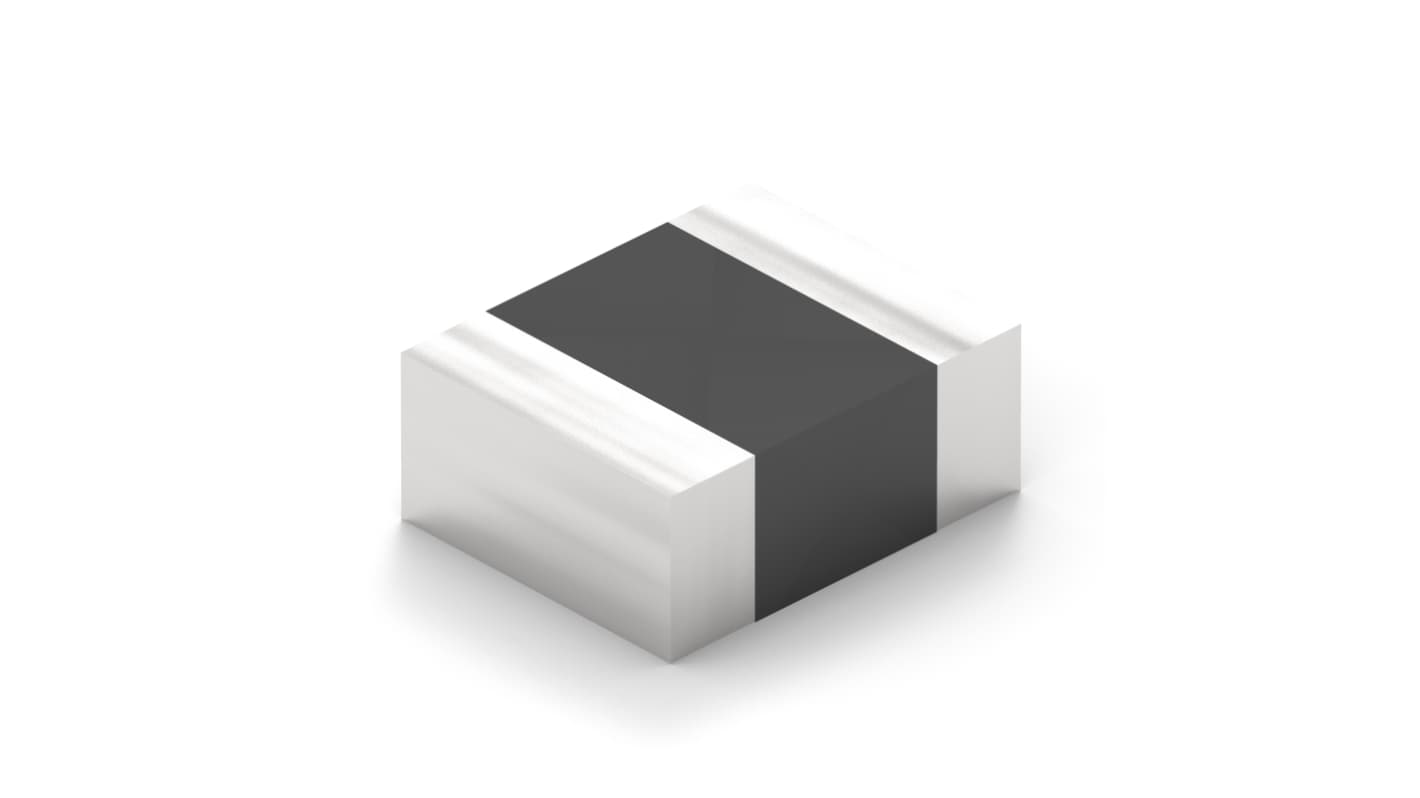

Wurth Elektronik, WE-PMI, 1008 Shielded Surface Mount Inductor with a Polystyrene Core, 6.8 μH Multilayer ±20 % 950 mA
- RS Stock No.:
- 296-335
- Mfr. Part No.:
- 74479887268A
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 10 units)*
£6.11
(exc. VAT)
£7.33
(inc. VAT)
Add 90 units to get free delivery
In Stock
- 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.611 | £6.11 |
| 100 - 240 | £0.58 | £5.80 |
| 250 - 490 | £0.538 | £5.38 |
| 500 - 990 | £0.495 | £4.95 |
| 1000 + | £0.477 | £4.77 |
*price indicative
- RS Stock No.:
- 296-335
- Mfr. Part No.:
- 74479887268A
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 6.8 μH | |
| Product Type | Surface Mount Inductor | |
| Sub Type | WE-PMI Power Multilayer Inductor | |
| Maximum DC Current | 950mA | |
| Package/Case | 1008 | |
| Length | 2.5mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | Shielded | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 325mΩ | |
| Series | WE-PMI | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Core Material | Polystyrene | |
| Height | 1mm | |
| Depth | 1mm | |
| Standards/Approvals | 863, Halogen Free IEC 61249-2-21, EU&2015, RoHS 2011, Halogen Free JEDEC JS709B, 2006, REACH EC1907 | |
| Diameter | 1 mm | |
| Maximum Self Resonant Frequency | 30MHz | |
| Moulded | No | |
| Minimum Quality Factor | 25 | |
| Inductor Construction | Multilayer | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 6.8 μH | ||
Product Type Surface Mount Inductor | ||
Sub Type WE-PMI Power Multilayer Inductor | ||
Maximum DC Current 950mA | ||
Package/Case 1008 | ||
Length 2.5mm | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding Shielded | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 325mΩ | ||
Series WE-PMI | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Core Material Polystyrene | ||
Height 1mm | ||
Depth 1mm | ||
Standards/Approvals 863, Halogen Free IEC 61249-2-21, EU&2015, RoHS 2011, Halogen Free JEDEC JS709B, 2006, REACH EC1907 | ||
Diameter 1 mm | ||
Maximum Self Resonant Frequency 30MHz | ||
Moulded No | ||
Minimum Quality Factor 25 | ||
Inductor Construction Multilayer | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik Power Multilayer Inductor compact type is suitable for applications with high currents up to 3.8 A. It features a magnetically shielded construction to prevent crosstalk. The operating temperature range is –40°C to +125°C. Four sizes and three different types are available: Low Profile, Low RDC, and High Saturation Current.
Electronic devices with very low profile
Portable devices like smart phones, tablets, notebooks, and digital cameras
