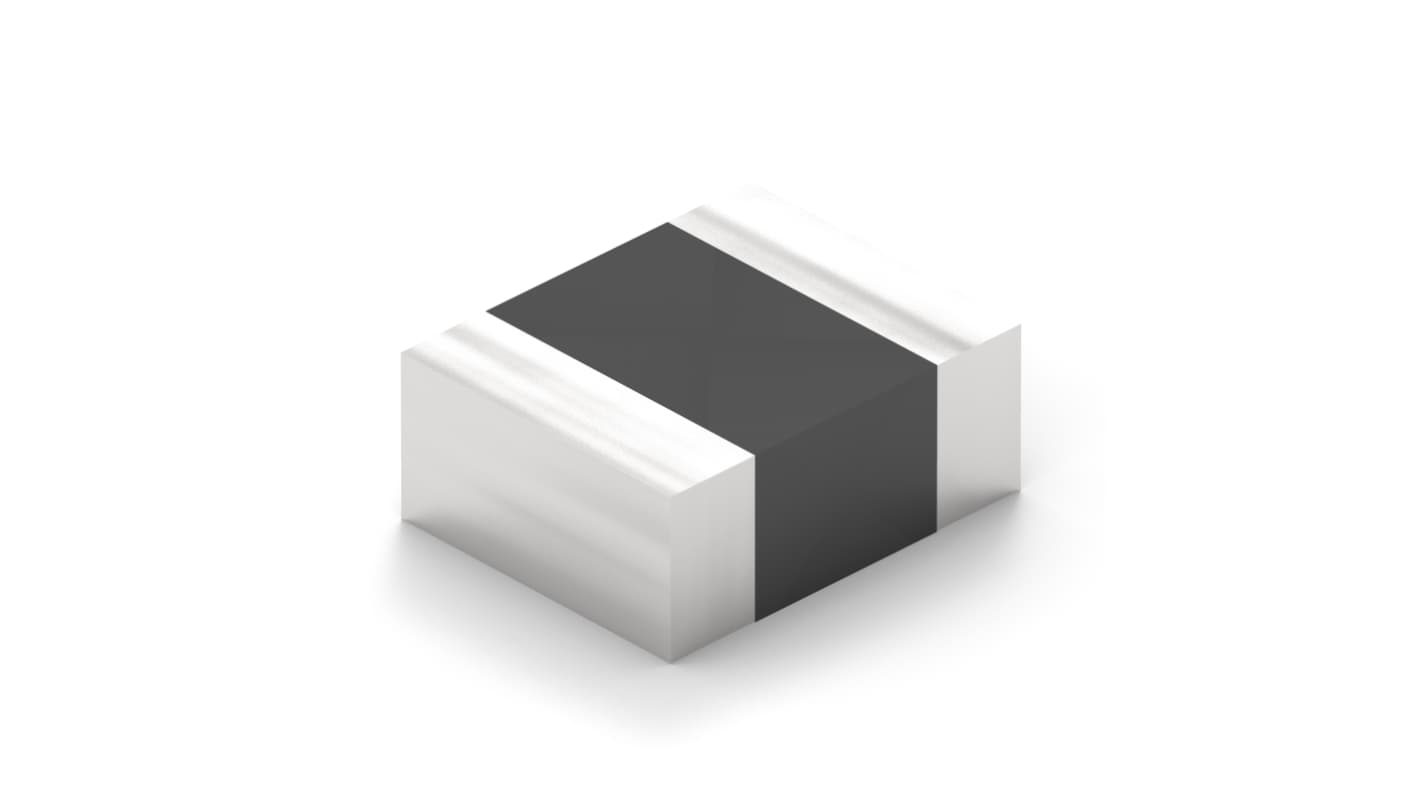

Wurth Elektronik, WE-PMI, 1008 Shielded Surface Mount Inductor with a Polystyrene Core, 1 μH Multilayer ±20 % 1.95 A Idc
- RS Stock No.:
- 296-222
- Distrelec Article No.:
- 304-30-062
- Mfr. Part No.:
- 74479787210B
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 10 units)*
£7.60
(exc. VAT)
£9.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 70 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.76 | £7.60 |
| 100 - 240 | £0.721 | £7.21 |
| 250 - 490 | £0.669 | £6.69 |
| 500 - 990 | £0.614 | £6.14 |
| 1000 + | £0.593 | £5.93 |
*price indicative
- RS Stock No.:
- 296-222
- Distrelec Article No.:
- 304-30-062
- Mfr. Part No.:
- 74479787210B
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 1μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 1.95A | |
| Sub Type | Power Multilayer Inductor | |
| Package/Case | 1008 | |
| Packaging | Tape & Reel | |
| Length | 2.5mm | |
| Automotive Standard | No | |
| Shielding | Shielded | |
| Maximum DC Resistance | 75mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±20 % | |
| Series | WE-PMI | |
| Standards/Approvals | Halogen-Free (JEDEC JS709B,IEC 61249-2-21), RoHS (2011/65/EU&2015/863), REACH (EC 1907/2006) | |
| Height | 1mm | |
| Diameter | 1mm | |
| Core Material | Polystyrene | |
| Depth | 1mm | |
| Maximum Self Resonant Frequency | 75MHz | |
| Minimum Quality Factor | 23 | |
| Inductor Construction | Multilayer | |
| Moulded | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 1μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 1.95A | ||
Sub Type Power Multilayer Inductor | ||
Package/Case 1008 | ||
Packaging Tape & Reel | ||
Length 2.5mm | ||
Automotive Standard No | ||
Shielding Shielded | ||
Maximum DC Resistance 75mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±20 % | ||
Series WE-PMI | ||
Standards/Approvals Halogen-Free (JEDEC JS709B,IEC 61249-2-21), RoHS (2011/65/EU&2015/863), REACH (EC 1907/2006) | ||
Height 1mm | ||
Diameter 1mm | ||
Core Material Polystyrene | ||
Depth 1mm | ||
Maximum Self Resonant Frequency 75MHz | ||
Minimum Quality Factor 23 | ||
Inductor Construction Multilayer | ||
Moulded No | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik Power Multilayer Inductor compact multilayer type is suitable for applications with high currents up to 3.8 A. It features a magnetically shielded construction with no crosstalk. The operating temperature range is –40°C to +125°C. Four sizes and three different types are available: Low Profile, Low RDC, and High Saturation Current.
Electronic devices with very low profile
Portable devices like Smart Phones, Tablets, Notebooks and Digital Cameras
