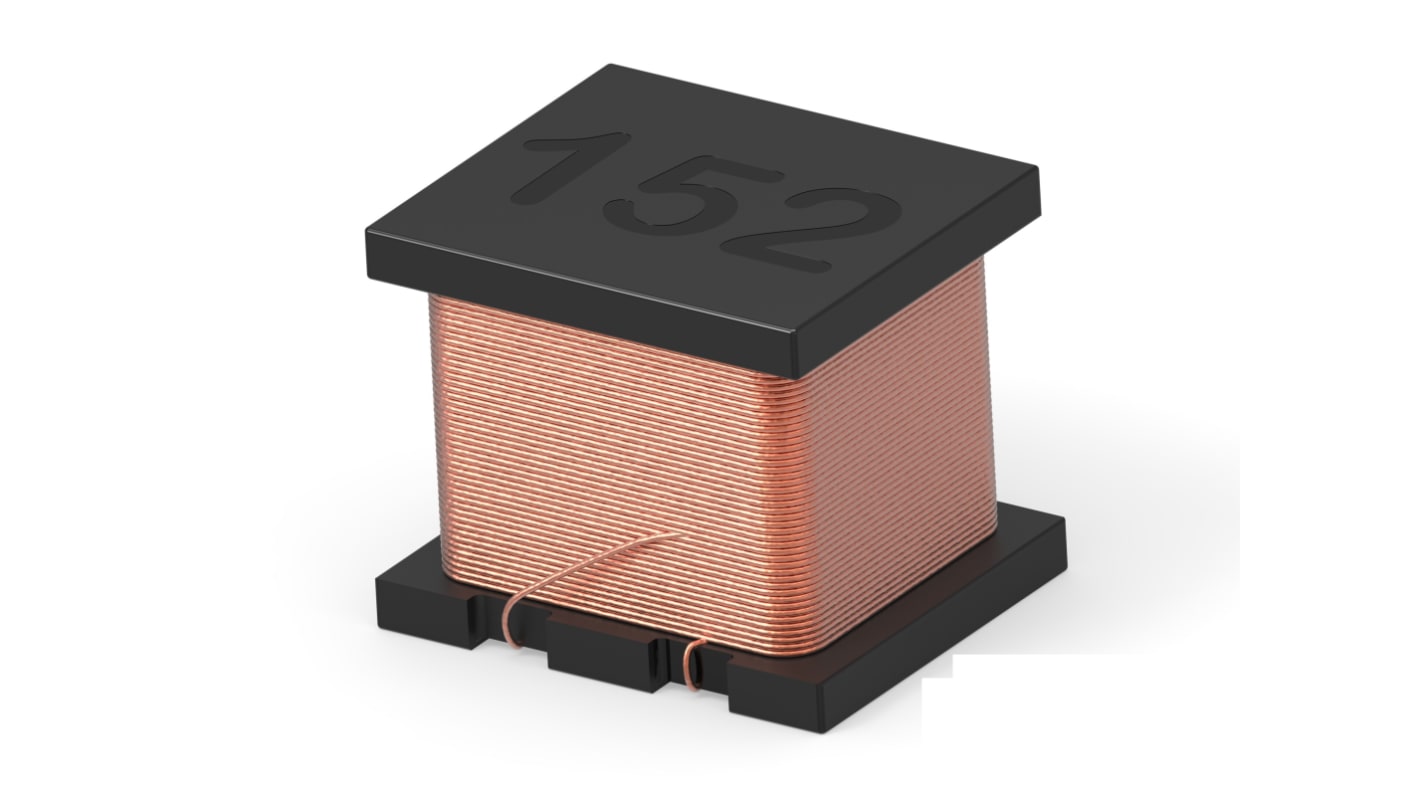

TE Connectivity, 3627, 3627 Unshielded Wire-wound SMD Inductor with a Ferrite Core, 470 nH 20% 4.8A Idc
- RS Stock No.:
- 171-218
- Mfr. Part No.:
- 3627575047CR47M
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 tape of 10 units)*
£4.45
(exc. VAT)
£5.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
10 - 90 | £0.445 | £4.45 |
100 - 240 | £0.422 | £4.22 |
250 - 490 | £0.391 | £3.91 |
500 + | £0.361 | £3.61 |
*price indicative
- RS Stock No.:
- 171-218
- Mfr. Part No.:
- 3627575047CR47M
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Inductance | 470 nH | |
Maximum DC Current | 4.8A | |
Package/Case | 3627 | |
Length | 5.7mm | |
Depth | 5mm | |
Height | 4.7mm | |
Dimensions | 5.7 x 5 x 4.7mm | |
Shielded | No | |
Tolerance | 20% | |
Series | 3627 | |
Core Material | Ferrite | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -40°C | |
Moulded | No | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Inductance 470 nH | ||
Maximum DC Current 4.8A | ||
Package/Case 3627 | ||
Length 5.7mm | ||
Depth 5mm | ||
Height 4.7mm | ||
Dimensions 5.7 x 5 x 4.7mm | ||
Shielded No | ||
Tolerance 20% | ||
Series 3627 | ||
Core Material Ferrite | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Moulded No | ||
- COO (Country of Origin):
- TW
The TE Connectivity Miniature SMD power inductors are designed with special ferrite cores for increased performance and reliability. This miniature SMD power inductor is a critical component in high frequency communication products, personal computers, disc drives, and computer peripherals and DC power supply circuits.
High current capacity
High impedance characteristics
Shock resistance
Vibration resistance
High impedance characteristics
Shock resistance
Vibration resistance
