Vishay 10 F Supercapacitor -20 to 50 % Tolerance, 230 EDLC-HV 3 V, Through Hole
- RS Stock No.:
- 260-8670
- Mfr. Part No.:
- MAL223051013E3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£2.65
(exc. VAT)
£3.18
(inc. VAT)
Add 19 units to get free delivery
Temporarily out of stock
- 931 unit(s) shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £2.65 |
| 50 - 99 | £2.40 |
| 100 - 199 | £2.07 |
| 200 + | £1.65 |
*price indicative
- RS Stock No.:
- 260-8670
- Mfr. Part No.:
- MAL223051013E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 10F | |
| Product Type | Supercapacitor | |
| Voltage | 3 V | |
| Mount Type | Through Hole | |
| Packaging | Tray | |
| Automotive Standard | AEC-Q200 | |
| Polarity | Polar | |
| Lead Diameter | 0.8mm | |
| Diameter | 10 mm | |
| Lead Pitch | 5mm | |
| Terminal Type | Radial | |
| Leakage Current | 45μA | |
| Minimum Operating Temperature | -45°C | |
| Equivalent Series Resistance ESR | 38mΩ | |
| Maximum Operating Temperature | 85°C | |
| Lifetime | 2000 h | |
| Standards/Approvals | IEC 60062, UL 810A, RoHS | |
| Series | 230 EDLC-HV | |
| Height | 32mm | |
| Tolerance | -20 to 50 % | |
| Capacitor Family | Pseudocapacitor | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 10F | ||
Product Type Supercapacitor | ||
Voltage 3 V | ||
Mount Type Through Hole | ||
Packaging Tray | ||
Automotive Standard AEC-Q200 | ||
Polarity Polar | ||
Lead Diameter 0.8mm | ||
Diameter 10 mm | ||
Lead Pitch 5mm | ||
Terminal Type Radial | ||
Leakage Current 45μA | ||
Minimum Operating Temperature -45°C | ||
Equivalent Series Resistance ESR 38mΩ | ||
Maximum Operating Temperature 85°C | ||
Lifetime 2000 h | ||
Standards/Approvals IEC 60062, UL 810A, RoHS | ||
Series 230 EDLC-HV | ||
Height 32mm | ||
Tolerance -20 to 50 % | ||
Capacitor Family Pseudocapacitor | ||
- COO (Country of Origin):
- AT

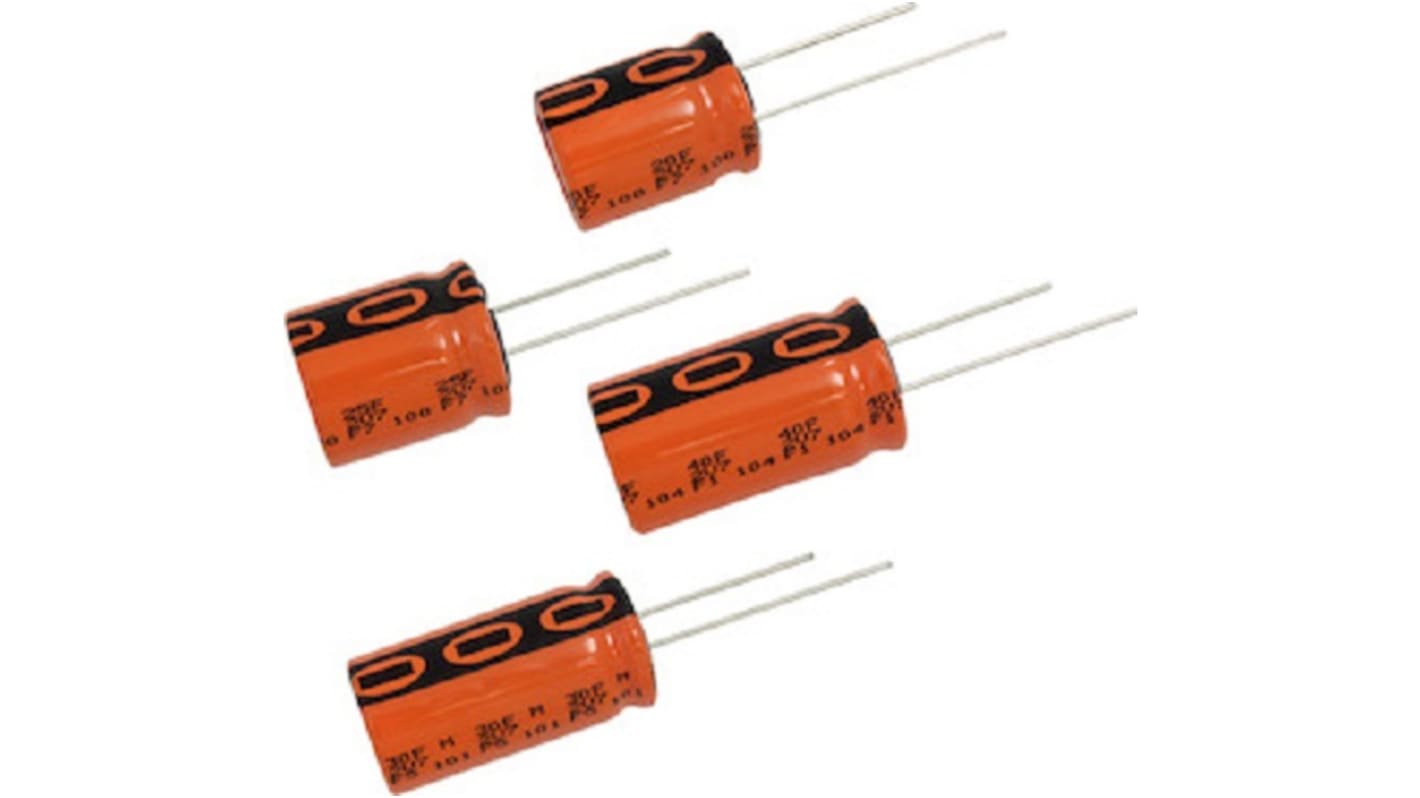

The Vishay electrical double layer energy storage capacitor is polarized energy storage capacitor with high capacity and energy density. It is used in power backup, burst power support and storage device for energy harvesting.
Available in through-hole (radial) version
Useful life 2000 h at 85 °C
Rapid charge and discharge
Maintenance-free, no service necessary
AEC-Q200 qualified
