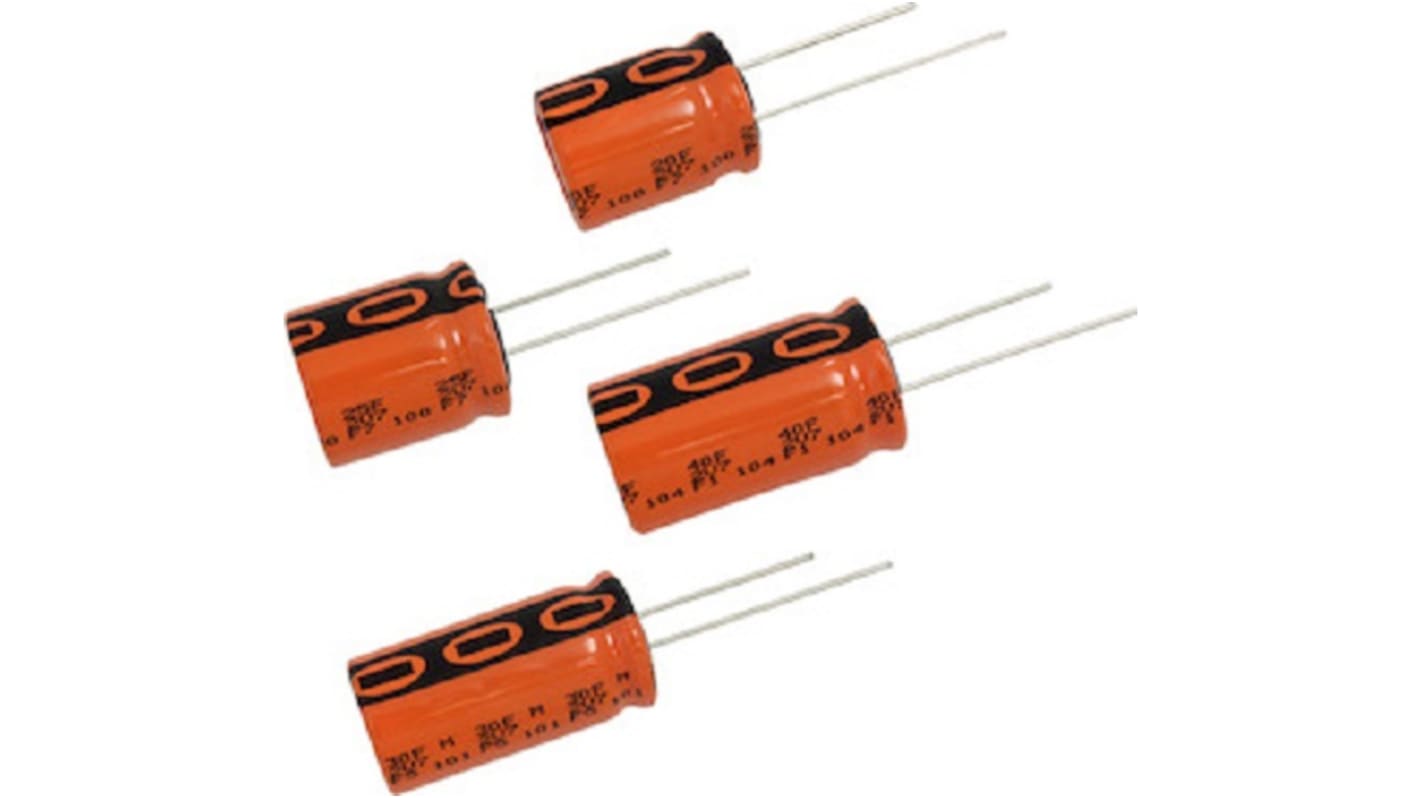

Vishay 7 F Supercapacitor -20 to 50 % Tolerance, 230 EDLC-HV 3 V dc, Through Hole
- RS Stock No.:
- 260-8667
- Mfr. Part No.:
- MAL223051012E3
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 260-8667
- Mfr. Part No.:
- MAL223051012E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 7F | |
| Product Type | Supercapacitor | |
| Voltage | 3 V dc | |
| Mount Type | Through Hole | |
| Polarity | Polar | |
| Automotive Standard | AEC-Q200 | |
| Diameter | 10 mm | |
| Lead Diameter | 0.6mm | |
| Lead Pitch | 5mm | |
| Terminal Type | Radial | |
| Leakage Current | 35μA | |
| Equivalent Series Resistance ESR | 46mΩ | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | 85°C | |
| Lifetime | 2000 h | |
| Standards/Approvals | RoHS, IEC 60062, UL 810A | |
| Height | 27mm | |
| Series | 230 EDLC-HV | |
| Tolerance | -20 to 50 % | |
| Capacitor Family | Pseudocapacitor | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 7F | ||
Product Type Supercapacitor | ||
Voltage 3 V dc | ||
Mount Type Through Hole | ||
Polarity Polar | ||
Automotive Standard AEC-Q200 | ||
Diameter 10 mm | ||
Lead Diameter 0.6mm | ||
Lead Pitch 5mm | ||
Terminal Type Radial | ||
Leakage Current 35μA | ||
Equivalent Series Resistance ESR 46mΩ | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature 85°C | ||
Lifetime 2000 h | ||
Standards/Approvals RoHS, IEC 60062, UL 810A | ||
Height 27mm | ||
Series 230 EDLC-HV | ||
Tolerance -20 to 50 % | ||
Capacitor Family Pseudocapacitor | ||
- COO (Country of Origin):
- AT
The Vishay electrical double layer energy storage capacitor is polarized energy storage capacitor with high capacity and energy density. It is used in power backup, burst power support and storage device for energy harvesting.
Available in through-hole (radial) version
Useful life 2000 h at 85 °C
Rapid charge and discharge
Maintenance-free, no service necessary
AEC-Q200 qualified
