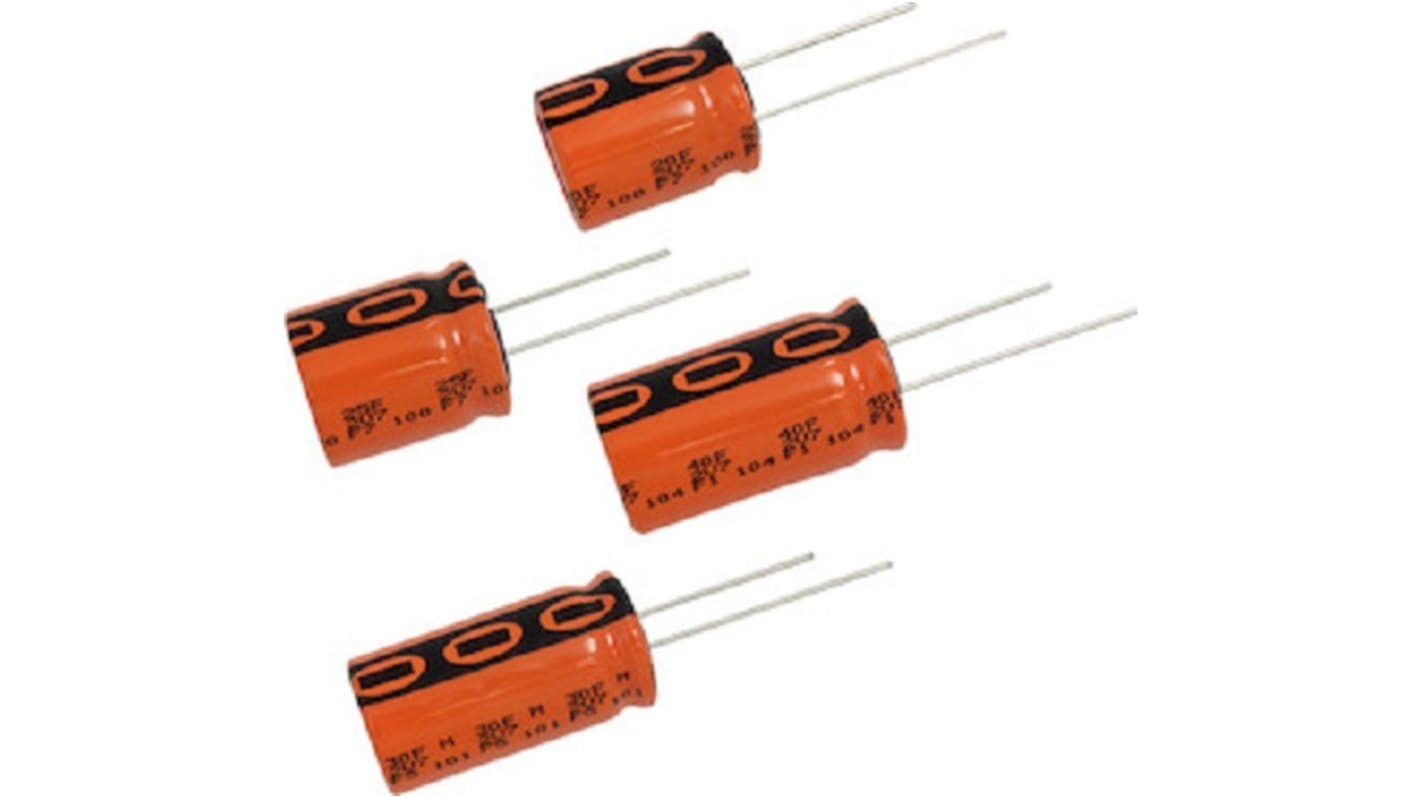

Vishay 5 F Supercapacitor -20 to 50 % Tolerance, 230 EDLC-HV 3 V, Through Hole
- RS Stock No.:
- 260-8666
- Mfr. Part No.:
- MAL223051011E3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£2.28
(exc. VAT)
£2.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 42 unit(s) shipping from 17 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £2.28 |
| 50 - 99 | £2.03 |
| 100 - 199 | £1.77 |
| 200 + | £1.43 |
*price indicative
- RS Stock No.:
- 260-8666
- Mfr. Part No.:
- MAL223051011E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 5F | |
| Product Type | Supercapacitor | |
| Voltage | 3 V | |
| Mount Type | Through Hole | |
| Packaging | Tray | |
| Automotive Standard | AEC-Q200 | |
| Polarity | Polar | |
| Diameter | 10 mm | |
| Lead Diameter | 0.6mm | |
| Lead Pitch | 5mm | |
| Terminal Type | Radial | |
| Leakage Current | 25μA | |
| Minimum Operating Temperature | -45°C | |
| Equivalent Series Resistance ESR | 65mΩ | |
| Lifetime | 2000 h | |
| Maximum Operating Temperature | 85°C | |
| Height | 22mm | |
| Series | 230 EDLC-HV | |
| Standards/Approvals | RoHS, UL 810A, IEC 60062 | |
| Tolerance | -20 to 50 % | |
| Capacitor Family | Pseudocapacitor | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 5F | ||
Product Type Supercapacitor | ||
Voltage 3 V | ||
Mount Type Through Hole | ||
Packaging Tray | ||
Automotive Standard AEC-Q200 | ||
Polarity Polar | ||
Diameter 10 mm | ||
Lead Diameter 0.6mm | ||
Lead Pitch 5mm | ||
Terminal Type Radial | ||
Leakage Current 25μA | ||
Minimum Operating Temperature -45°C | ||
Equivalent Series Resistance ESR 65mΩ | ||
Lifetime 2000 h | ||
Maximum Operating Temperature 85°C | ||
Height 22mm | ||
Series 230 EDLC-HV | ||
Standards/Approvals RoHS, UL 810A, IEC 60062 | ||
Tolerance -20 to 50 % | ||
Capacitor Family Pseudocapacitor | ||
- COO (Country of Origin):
- AT
The Vishay electrical double layer energy storage capacitor is polarized energy storage capacitor with high capacity and energy density. It is used in power backup, burst power support and storage device for energy harvesting.
Available in through-hole (radial) version
Useful life 2000 h at 85 °C
Rapid charge and discharge
Maintenance-free, no service necessary
AEC-Q200 qualified
