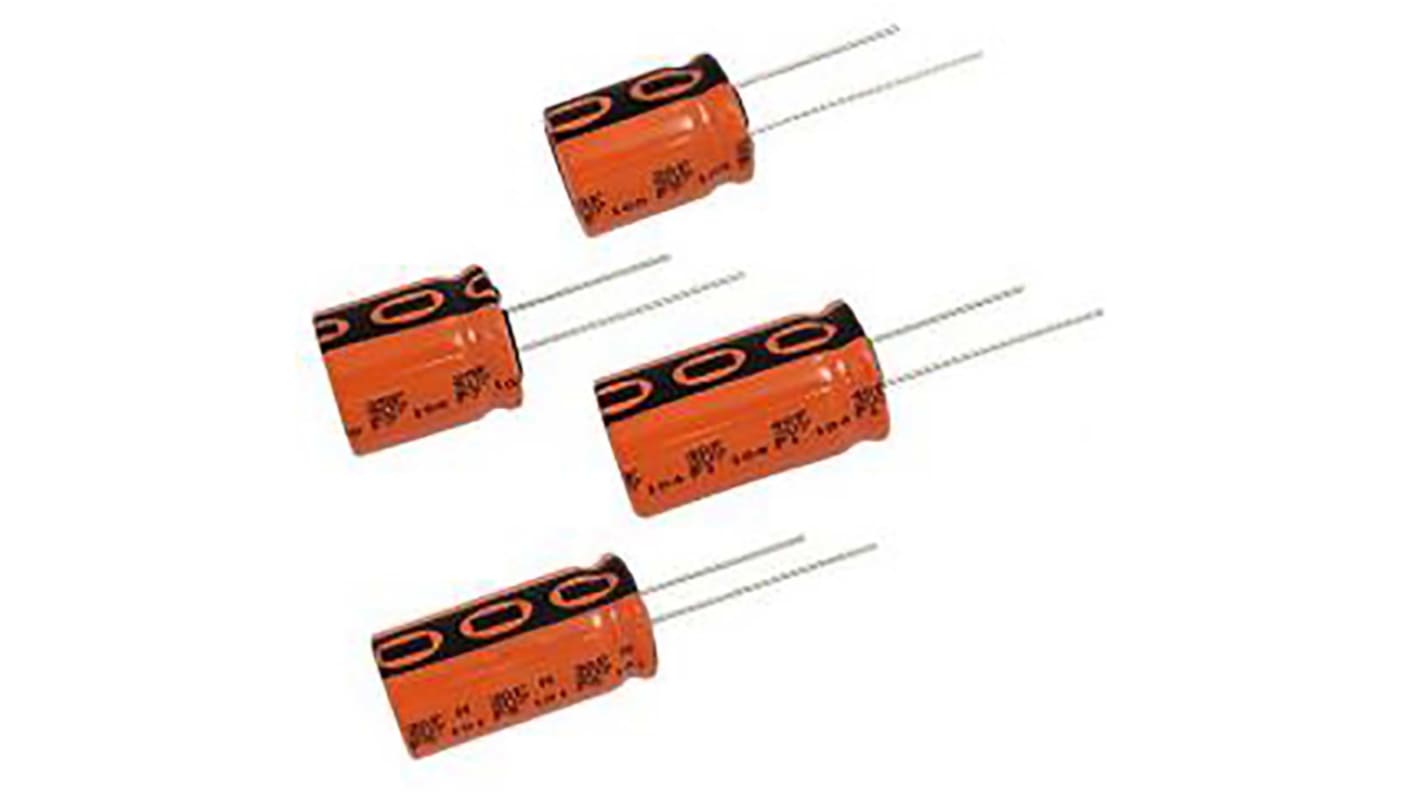

Vishay 60F Supercapacitor -20 → +50% Tolerance, 235 EDLC 3V dc, Through Hole
- RS Stock No.:
- 196-7901
- Mfr. Part No.:
- MAL223551009E3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 100 units)*
£296.00
(exc. VAT)
£355.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
- Plus 999,999,500 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 100 | £2.96 | £296.00 |
| 200 + | £2.682 | £268.20 |
*price indicative
- RS Stock No.:
- 196-7901
- Mfr. Part No.:
- MAL223551009E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 60F | |
| Voltage | 3V dc | |
| Mounting Type | Through Hole | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Diameter | 18mm | |
| Automotive Standard | AEC-Q200 | |
| Height | 42.5mm | |
| Dimensions | 18 x 40mm | |
| Lead Pitch | 7.5mm | |
| Leakage Current | 30 mA | |
| Equivalent Series Resistance | 17mΩ | |
| Lifetime | 2000h | |
| Series | 235 EDLC | |
| Tolerance | -20 → +50% | |
| Terminal Type | Through Hole | |
| Lead Diameter | 0.8mm | |
| Polarised | Polar | |
| Lead Spacing | 7.5 mm | |
| Capacitor Family | Electric Double Layer | |
| Product Diameter | 18mm | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 60F | ||
Voltage 3V dc | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Diameter 18mm | ||
Automotive Standard AEC-Q200 | ||
Height 42.5mm | ||
Dimensions 18 x 40mm | ||
Lead Pitch 7.5mm | ||
Leakage Current 30 mA | ||
Equivalent Series Resistance 17mΩ | ||
Lifetime 2000h | ||
Series 235 EDLC | ||
Tolerance -20 → +50% | ||
Terminal Type Through Hole | ||
Lead Diameter 0.8mm | ||
Polarised Polar | ||
Lead Spacing 7.5 mm | ||
Capacitor Family Electric Double Layer | ||
Product Diameter 18mm | ||
- COO (Country of Origin):
- AT
The Vishay's 235 EDLC series are polarized energy storage capacitor with high
capacity and energy density. Used for power backup & storage device for energy harvesting applications.
capacity and energy density. Used for power backup & storage device for energy harvesting applications.
Available in through-hole (radial) version
Ruggedized for high humidity operation
Maintenance-free, no service necessary
Ruggedized for high humidity operation
Maintenance-free, no service necessary
