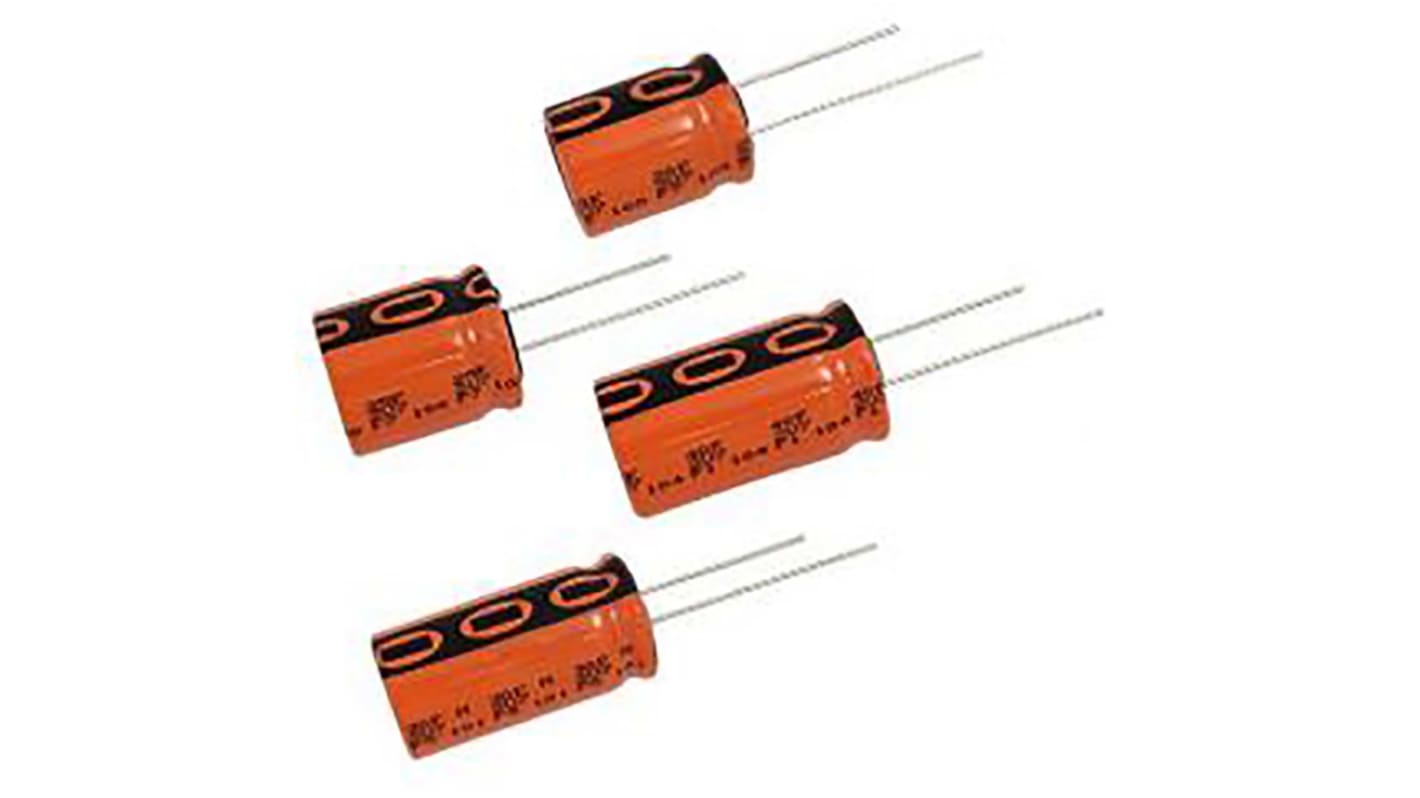

Vishay 40F Supercapacitor -20 → +50% Tolerance, 235 EDLC 3V dc, Through Hole
- RS Stock No.:
- 196-7896
- Mfr. Part No.:
- MAL223551001E3
- Brand:
- Vishay
Available to back order for despatch 26/07/2024
Added
Price Each (In a Pack of 100)
£2.587
(exc. VAT)
£3.104
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 100 | £2.587 | £258.70 |
| 200 - 400 | £2.329 | £232.90 |
| 500 + | £2.199 | £219.90 |
| *price indicative | ||
- RS Stock No.:
- 196-7896
- Mfr. Part No.:
- MAL223551001E3
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details
The Vishay's 235 EDLC series are polarized energy storage capacitor with high
capacity and energy density. Used for power backup & storage device for energy harvesting applications.
capacity and energy density. Used for power backup & storage device for energy harvesting applications.
Available in through-hole (radial) version
Ruggedized for high humidity operation
Maintenance-free, no service necessary
Ruggedized for high humidity operation
Maintenance-free, no service necessary
Specifications
Attribute | Value |
|---|---|
| Capacitance | 40F |
| Voltage | 3V dc |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Diameter | 18mm |
| Automotive Standard | AEC-Q200 |
| Height | 33.5mm |
| Dimensions | 18 x 31mm |
| Lead Pitch | 7.5mm |
| Leakage Current | 20 mA |
| Equivalent Series Resistance | 22mΩ |
| Lifetime | 2000h |
| Series | 235 EDLC |
| Tolerance | -20 → +50% |
| Product Diameter | 18mm |
| Lead Spacing | 7.5 mm |
| Lead Diameter | 0.8mm |
| Terminal Type | Through Hole |
| Capacitor Family | Electric Double Layer |
| Polarised | Polar |
