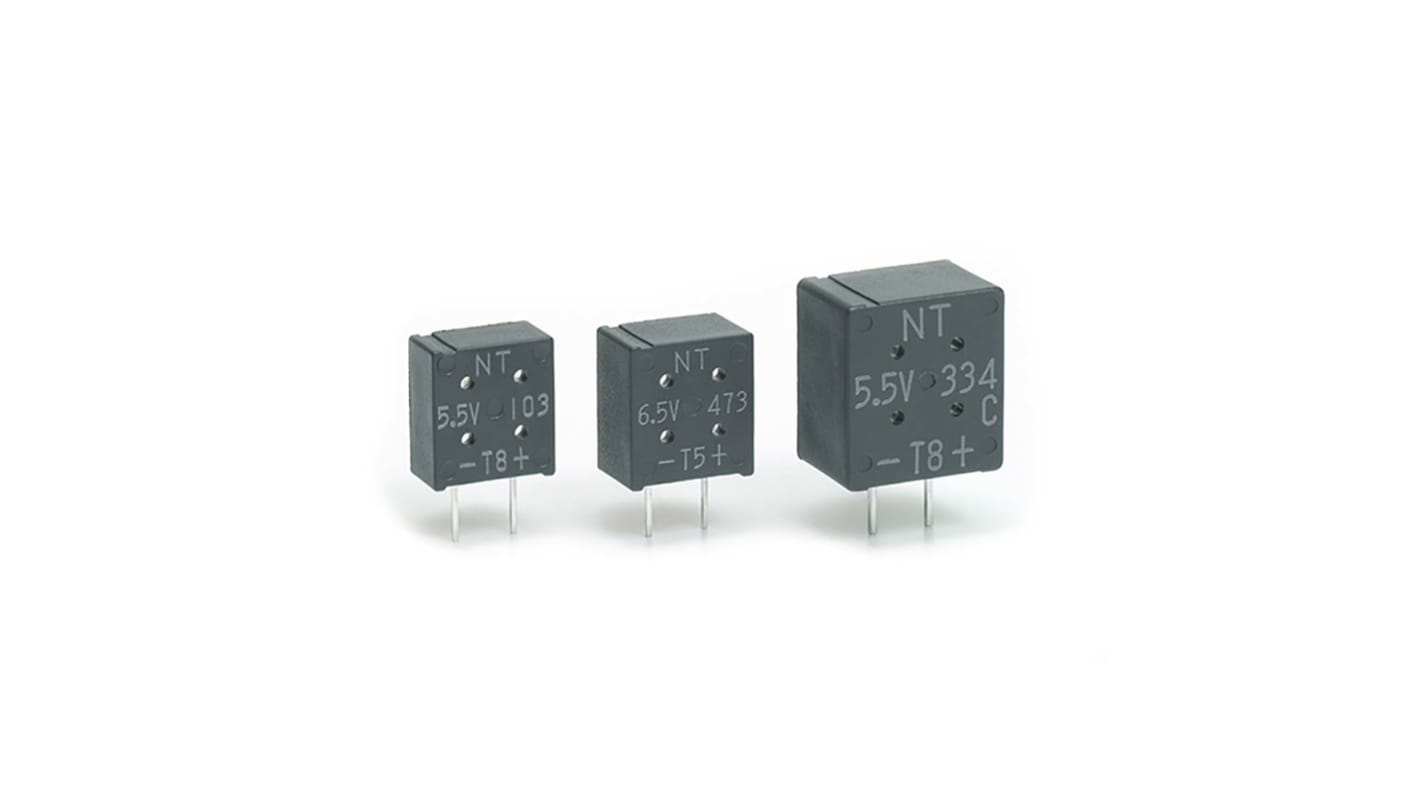

KEMET 0.1F Supercapacitor -20 → +80% Tolerance, FM 3.5V dc, Through Hole
- RS Stock No.:
- 188-2080P
- Mfr. Part No.:
- FM0V104ZF
- Brand:
- KEMET
Bulk discount available
Subtotal 20 units (supplied in a bag)*
£24.90
(exc. VAT)
£29.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,000 unit(s) shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 20 - 98 | £1.245 |
| 100 - 248 | £0.795 |
| 250 - 498 | £0.775 |
| 500 + | £0.76 |
*price indicative
- RS Stock No.:
- 188-2080P
- Mfr. Part No.:
- FM0V104ZF
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 0.1F | |
| Voltage | 3.5V dc | |
| Mounting Type | Through Hole | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Diameter | 10.5mm | |
| Height | 11.5mm | |
| Dimensions | 10.5 x 5 x 11.5mm | |
| Lead Pitch | 5mm | |
| Equivalent Series Resistance | 100Ω | |
| Series | FM | |
| Tolerance | -20 → +80% | |
| Capacitor Family | Electric Double Layer | |
| Polarised | Polar | |
| Product Diameter | 10.5mm | |
| Terminal Type | Radial | |
| Depth | 5mm | |
| Lead Spacing | 5 mm | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 0.1F | ||
Voltage 3.5V dc | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Diameter 10.5mm | ||
Height 11.5mm | ||
Dimensions 10.5 x 5 x 11.5mm | ||
Lead Pitch 5mm | ||
Equivalent Series Resistance 100Ω | ||
Series FM | ||
Tolerance -20 → +80% | ||
Capacitor Family Electric Double Layer | ||
Polarised Polar | ||
Product Diameter 10.5mm | ||
Terminal Type Radial | ||
Depth 5mm | ||
Lead Spacing 5 mm | ||
FM Series Super capacitors, also known as Electric Double-Layer Capacitors (EDLCs), are intended for high energy storage applications.
Rectangular case
Wide range of temperature from −25°C to +70°C (all types except FMR) and −40°C to +85°C (FMR type)
Maintenance free
3.5 VDC, 5.5 VDC, and 6.5 VDC
Highly reliable against liquid leakage
Lead-free
Leads can be transverse mounted
Applications
Super capacitors have characteristics ranging from traditional capacitors and batteries. As a result, Super capacitors can be used like a secondary battery when applied in a DC circuit. These devices are best suited for use in low voltage DC hold-up applications such as embedded microprocessor systems with flash memory.
Wide range of temperature from −25°C to +70°C (all types except FMR) and −40°C to +85°C (FMR type)
Maintenance free
3.5 VDC, 5.5 VDC, and 6.5 VDC
Highly reliable against liquid leakage
Lead-free
Leads can be transverse mounted
Applications
Super capacitors have characteristics ranging from traditional capacitors and batteries. As a result, Super capacitors can be used like a secondary battery when applied in a DC circuit. These devices are best suited for use in low voltage DC hold-up applications such as embedded microprocessor systems with flash memory.
