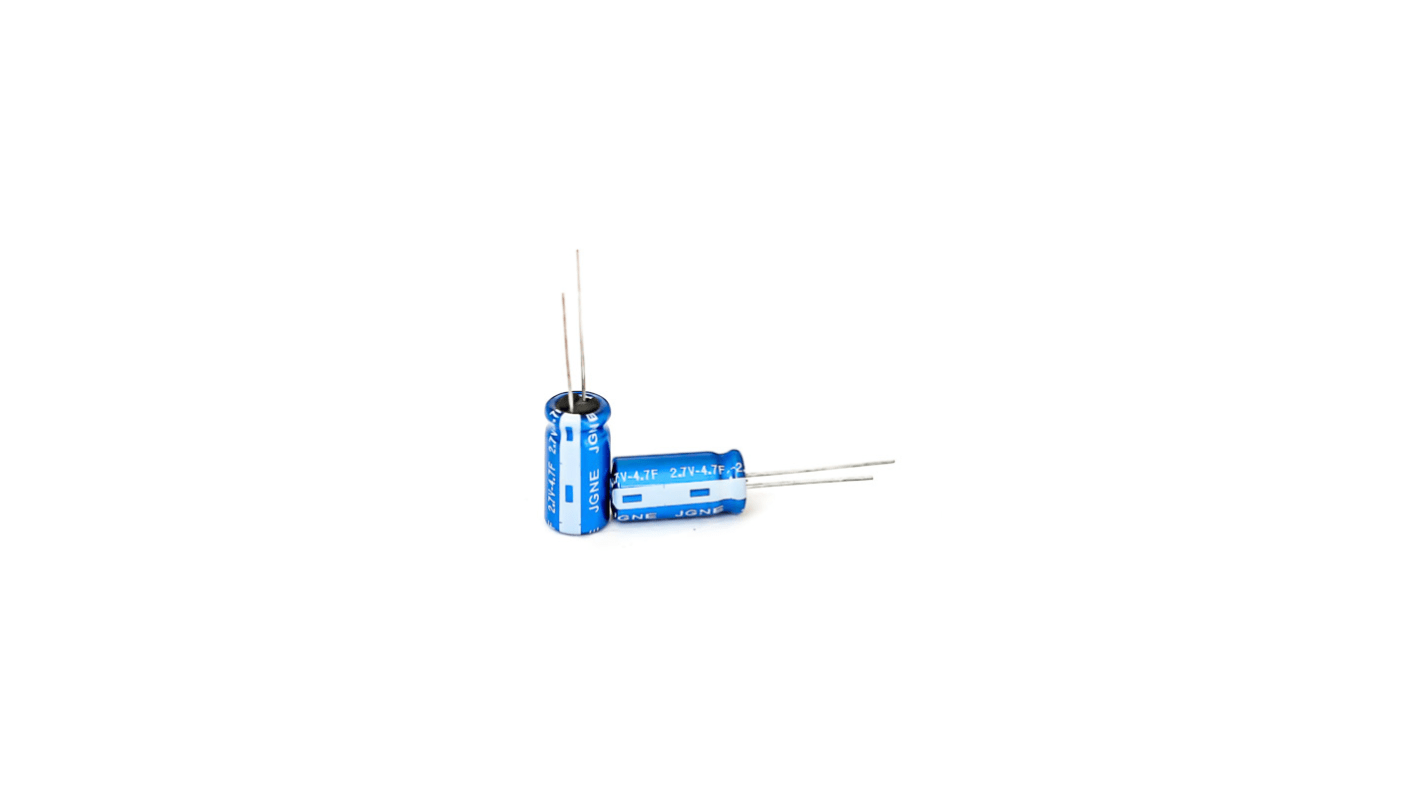

RS PRO 4.7F Supercapacitor -20 → +80% Tolerance 2.5V dc
- RS Stock No.:
- 184-5060
- Brand:
- RS PRO
Available to back order for despatch 08/10/2024
Added
Price Each (In a Tray of 6400)
£0.383
(exc. VAT)
£0.46
(inc. VAT)
| Units | Per unit | Per Tray* |
| 6400 + | £0.383 | £2,451.20 |
| *price indicative | ||
- RS Stock No.:
- 184-5060
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS PRO EDLC Supercapacitor
The RS PRO HZ series 4.7F PCB mount EDLC supercapacitor has a voltage rating of 2.5V and leakage current (24h) of ≤0.05mA. This electric double layer capacitor is suitable for applications like general industrial equipment.
Features and Benefits
• Tolerance of -20% to 80%
• Operating temperature ranges from -40°C to 70°C
• AC impedance of 220mohm and DC impedance of 350mohm
• Operating temperature ranges from -40°C to 70°C
• AC impedance of 220mohm and DC impedance of 350mohm
Applications
• UPS (backup power supplies)
• Solar battery operated circuits
• Motor drives (quick charging) base stations
• Electronic meters
• Solar battery operated circuits
• Motor drives (quick charging) base stations
• Electronic meters
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Capacitance | 4.7F |
| Voltage | 2.5V dc |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
| Leakage Current | 0.05 mA |
| Series | HZ |
| Tolerance | -20 → +80% |
| Capacitor Family | Electric Double Layer |
