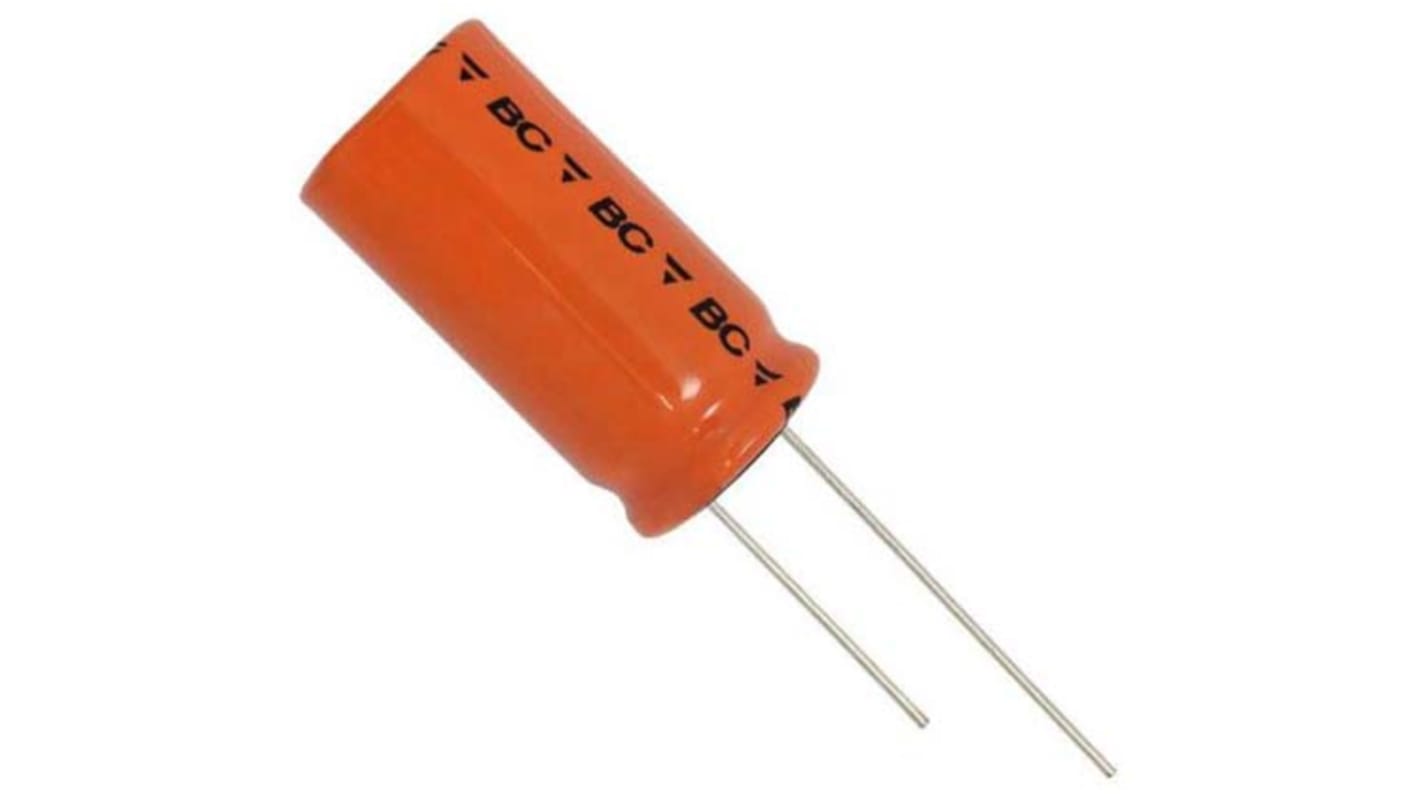

Vishay 25F Supercapacitor -20 → +50% Tolerance, 220 EDLC-E 2.7V dc, Through Hole
- RS Stock No.:
- 144-1320
- Mfr. Part No.:
- MAL222090007E3
- Brand:
- Vishay
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 144-1320
- Mfr. Part No.:
- MAL222090007E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 25F | |
| Voltage | 2.7V dc | |
| Mounting Type | Through Hole | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Diameter | 18.5mm | |
| Dimensions | 18.5 (Dia.) x 27mm | |
| Lead Pitch | 7.5mm | |
| Leakage Current | 11 mA, 115 μA | |
| Equivalent Series Resistance | 36mΩ | |
| Lifetime | 1000h | |
| Series | 220 EDLC-E | |
| Tolerance | -20 → +50% | |
| Lead Spacing | 7.5mm | |
| Product Diameter | 18.5mm | |
| Tolerance Minus | -20% | |
| Priced to Clear | Yes | |
| Polarised | Polar | |
| Capacitor Family | Electric Double Layer | |
| Lead Diameter | 0.8mm | |
| Depth | 27mm | |
| Package/Case | 1825 (4564M) | |
| Tolerance Plus | +50% | |
| Terminal Type | Radial | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 25F | ||
Voltage 2.7V dc | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Diameter 18.5mm | ||
Dimensions 18.5 (Dia.) x 27mm | ||
Lead Pitch 7.5mm | ||
Leakage Current 11 mA, 115 μA | ||
Equivalent Series Resistance 36mΩ | ||
Lifetime 1000h | ||
Series 220 EDLC-E | ||
Tolerance -20 → +50% | ||
Lead Spacing 7.5mm | ||
Product Diameter 18.5mm | ||
Tolerance Minus -20% | ||
Priced to Clear Yes | ||
Polarised Polar | ||
Capacitor Family Electric Double Layer | ||
Lead Diameter 0.8mm | ||
Depth 27mm | ||
Package/Case 1825 (4564M) | ||
Tolerance Plus +50% | ||
Terminal Type Radial | ||
- COO (Country of Origin):
- AT
Vishay 220 EDLC ENYCAP Energy Storage Capacitors
220 EDLC ENYCAP supercapacitors from Vishay are electric double layer energy storage capacitors. This EDLC series features high energy density and high capacity, offering a stable solution. These supercapacitors have a rated voltage of 2.7 V and are able to charge and discharge rapidly. With a life cycle of >500000 cycles, 220 EDLC ENYCAP electric double layer capacitors offer 1000 h endurance at +85°C.
Energy storage capacitors
Power and energy versions
No service necessary
Maintenance Free
Power and energy versions
No service necessary
Maintenance Free
Applications
Suitable applications for these elecric double layer capacitors include burst power support, power backup and energy recovery. 220 EDLC ENYCAP supercapacitors can also be used as storage devices for energy harvesting and as a power source for Micro UPS.
