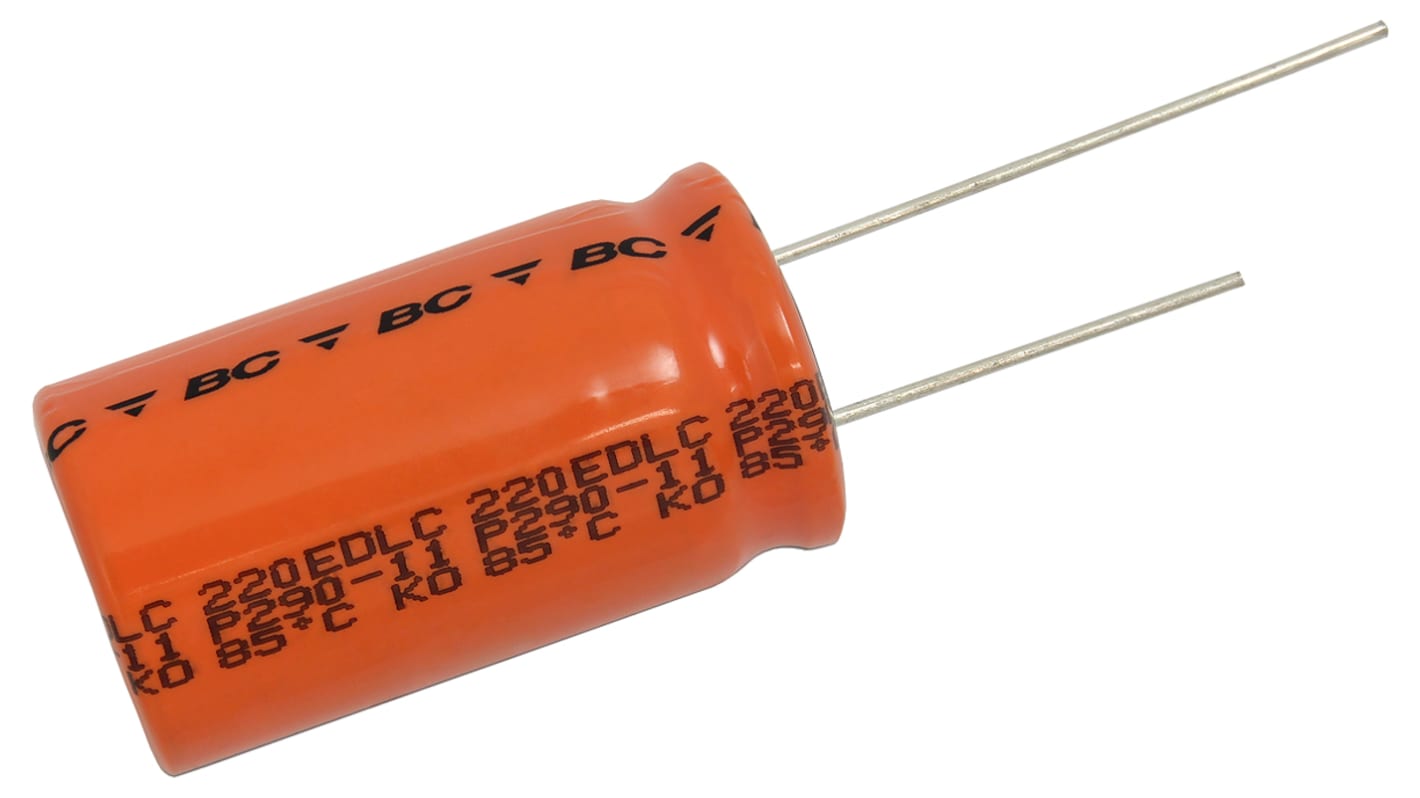

Vishay 40F Supercapacitor -20 → +50% Tolerance, 220 EDLC 2.7V dc, Through Hole
- RS Stock No.:
- 113-5877
- Mfr. Part No.:
- MAL222091001E3
- Brand:
- Vishay
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 113-5877
- Mfr. Part No.:
- MAL222091001E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 40F | |
| Voltage | 2.7V dc | |
| Mounting Type | Through Hole | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Diameter | 18.5mm | |
| Dimensions | 18.5 (Dia.) x 33.5mm | |
| Lead Pitch | 7.5mm | |
| Leakage Current | 20 mA, 200 μA | |
| Equivalent Series Resistance | 18mΩ | |
| Lifetime | 1000h | |
| Series | 220 EDLC | |
| Tolerance | -20 → +50% | |
| Terminal Type | Radial | |
| Package/Case | 1831 | |
| Lead Spacing | 7.5 mm | |
| Capacitor Family | Electric Double Layer | |
| Product Diameter | 18.5mm | |
| Depth | 33.5mm | |
| Polarised | Polar | |
| Lead Diameter | 0.8mm | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 40F | ||
Voltage 2.7V dc | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Diameter 18.5mm | ||
Dimensions 18.5 (Dia.) x 33.5mm | ||
Lead Pitch 7.5mm | ||
Leakage Current 20 mA, 200 μA | ||
Equivalent Series Resistance 18mΩ | ||
Lifetime 1000h | ||
Series 220 EDLC | ||
Tolerance -20 → +50% | ||
Terminal Type Radial | ||
Package/Case 1831 | ||
Lead Spacing 7.5 mm | ||
Capacitor Family Electric Double Layer | ||
Product Diameter 18.5mm | ||
Depth 33.5mm | ||
Polarised Polar | ||
Lead Diameter 0.8mm | ||
- COO (Country of Origin):
- AT
Vishay 220 EDLC ENYCAP Energy Storage Capacitors
220 EDLC ENYCAP supercapacitors from Vishay are electric double layer energy storage capacitors. This EDLC series features high energy density and high capacity, offering a stable solution. These supercapacitors have a rated voltage of 2.7 V and are able to charge and discharge rapidly. With a life cycle of >500000 cycles, 220 EDLC ENYCAP electric double layer capacitors offer 1000 h endurance at +85°C.
Energy storage capacitors
Power and energy versions
No service necessary
Maintenance Free
Power and energy versions
No service necessary
Maintenance Free
Applications
Suitable applications for these elecric double layer capacitors include burst power support, power backup and energy recovery. 220 EDLC ENYCAP supercapacitors can also be used as storage devices for energy harvesting and as a power source for Micro UPS.
Aluminium (EDLC) Super Capacitors
