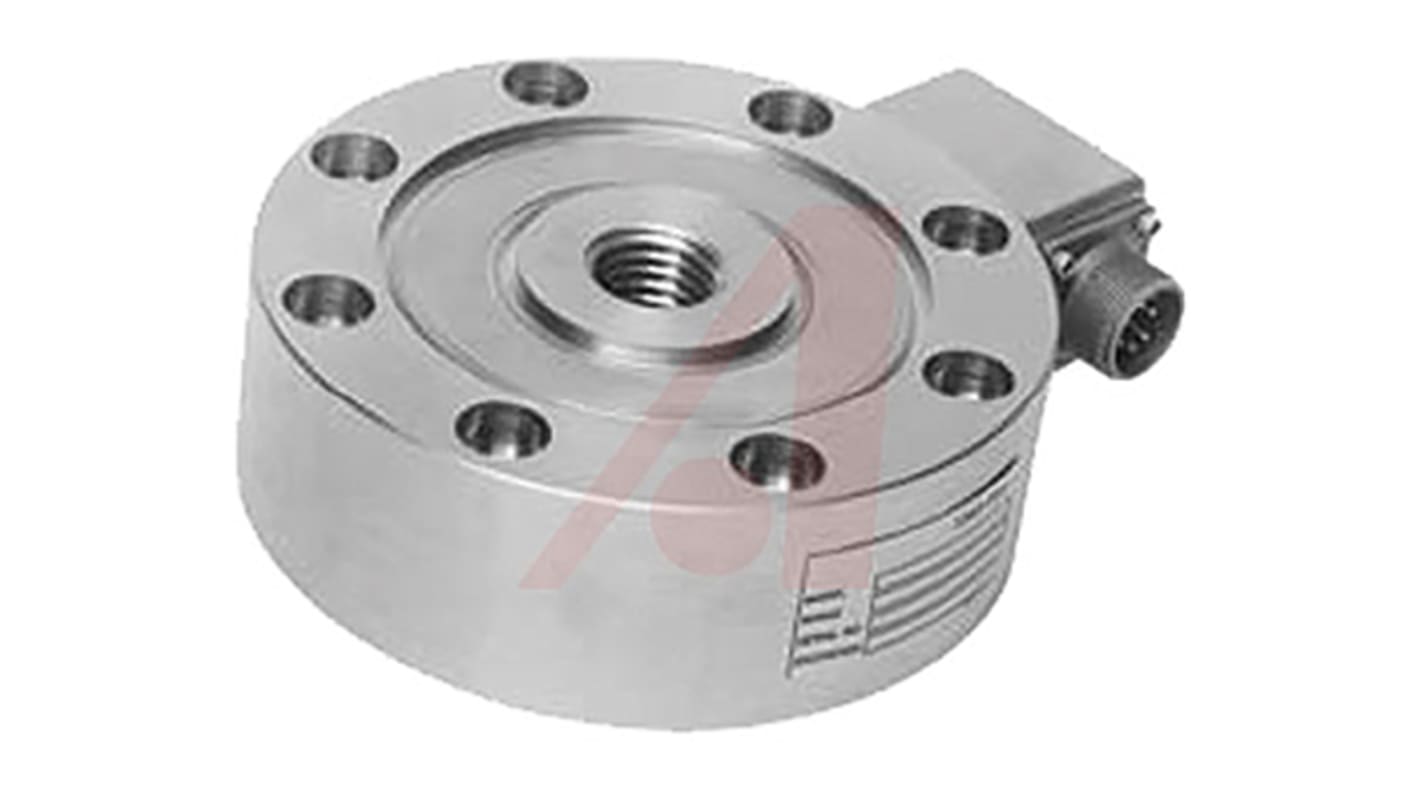

Honeywell Compression & Tension Load Cell Maximum of 2267.96kg, 10V dc
- RS Stock No.:
- 821-4096
- Mfr. Part No.:
- 060-0572-05
- Brand:
- Honeywell
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 821-4096
- Mfr. Part No.:
- 060-0572-05
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Force Measured | Compression, Tension | |
| Force/ Load Measurement Range | Maximum of 2267.96kg | |
| Terminal Type | Circular Connector | |
| Housing Material | Stainless Steel | |
| Minimum Operating Temperature | -54°C | |
| Maximum Operating Temperature | +121°C | |
| Select all | ||
|---|---|---|
| Brand Honeywell | ||
| Force Measured Compression, Tension | ||
| Force/ Load Measurement Range Maximum of 2267.96kg | ||
| Terminal Type Circular Connector | ||
| Housing Material Stainless Steel | ||
| Minimum Operating Temperature -54°C | ||
| Maximum Operating Temperature +121°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Honeywell Model 41 Pancake Load Cells
The Honeywell Model 41 Series are a low profile pancake type load cells. These bonded foil, strain gage load cells are engineered to measure loads from 5 lb all the way up to 500,000 lb. The tension/compression Model 41 is specifically designed with the threaded hole running completely through the centre of the cell. It provides high performance in non-linearity, hysteresis, and repeatability specifications for such applications as tube mills, extruding processes and weighing. Every unit has a welded construction and can be hermetically sealed for added durability.
0.1 % Accuracy
5 lb to 500,000 lb
Double diaphragm design
5 lb to 500,000 lb
Double diaphragm design
