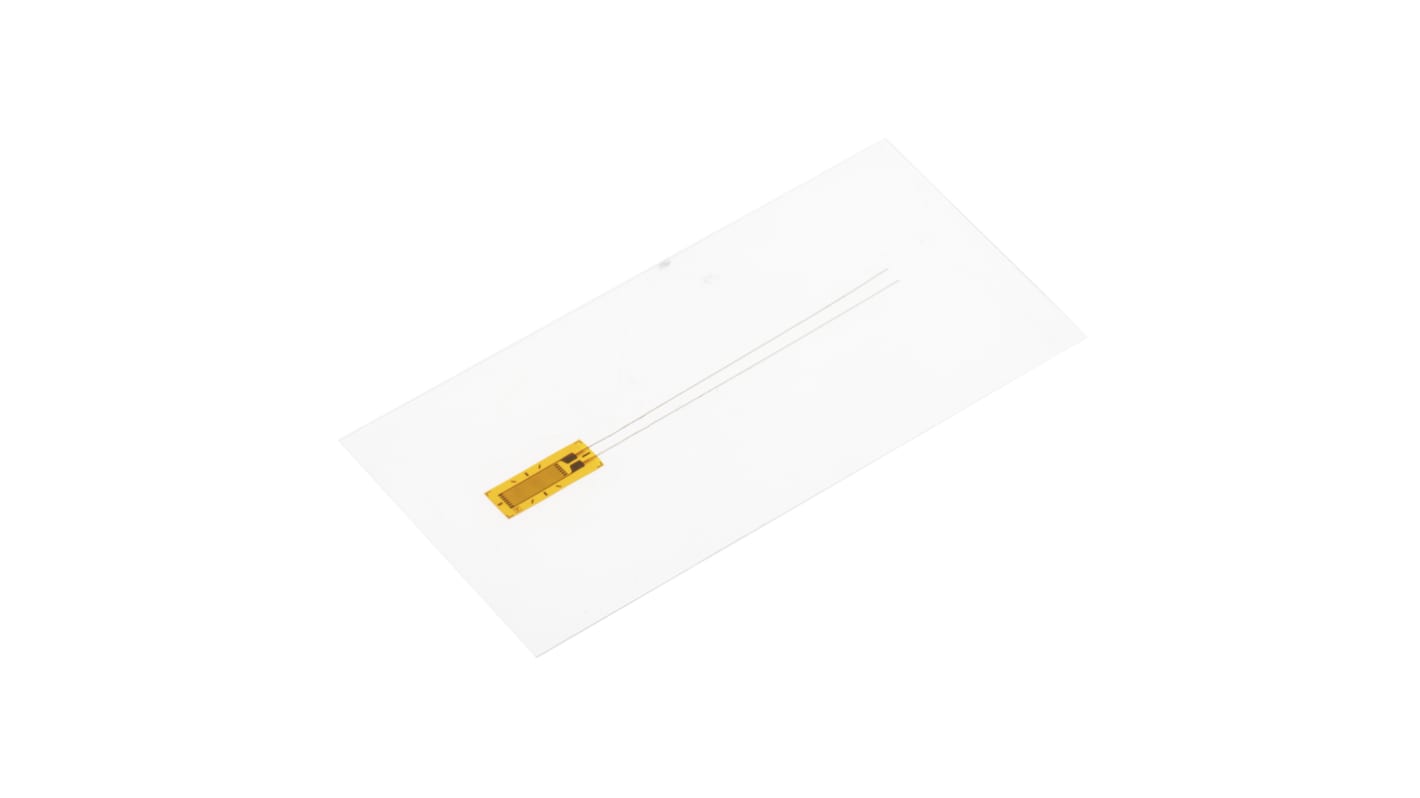

RS PRO Wire Lead Strain Gauge 3.5mm, 120Ω -30°C +80°C

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

RS Pro Strain Gauges

Our RS Pro strain gauges have been created and designed to measure the strain and force of an item, each foil strain gauge has a laminated surface with 30 mm integral leads. The gauge sticks to an item, as it deforms the electrical resistance changes - this process can sometimes be referred to as the "gauge factor". Our RS Pro strain gauges can be used in a multitude of applications for strain measurement, such as keypads, medical devices and automotive products.

Features & Benefits

• They are suitable for measurement of both static and dynamic applications
• Reliable, trustworthy reading - through their low sensitivity to excessive noise and vibrations
• Wide temperature range
• Clear alignment marks
• Can be affixed with epoxy or cyanoacrylate adhesive
• Little to no effect on test objects whilst measuring
• Both surfaces are completely covered with laminate, ensuring that the gauge grids are protected from any external damage
• Each strain gauge has been fitted with leads, enabling the gauges to be handled with ease

Note

• Temperature compensation for steel with red backing
• Temperature compensation for aluminium with blue backing

Specifications
Attribute Value
Gauge Length 5mm
Gauge Factor 2.1
Gauge Resistance 120Ω
Terminal Type Wire Lead
Length 9.5mm
Width 3.5mm
Minimum Operating Temperature -30°C
Maximum Operating Temperature +80°C
Dimensions 9.5 x 3.5 mm
220 In stock for FREE next working day delivery
Price Each
£ 8.27
(exc. VAT)
£ 9.92
(inc. VAT)
Units
Per unit
1 - 4
£8.27
5 - 9
£7.98
10 +
£7.71
