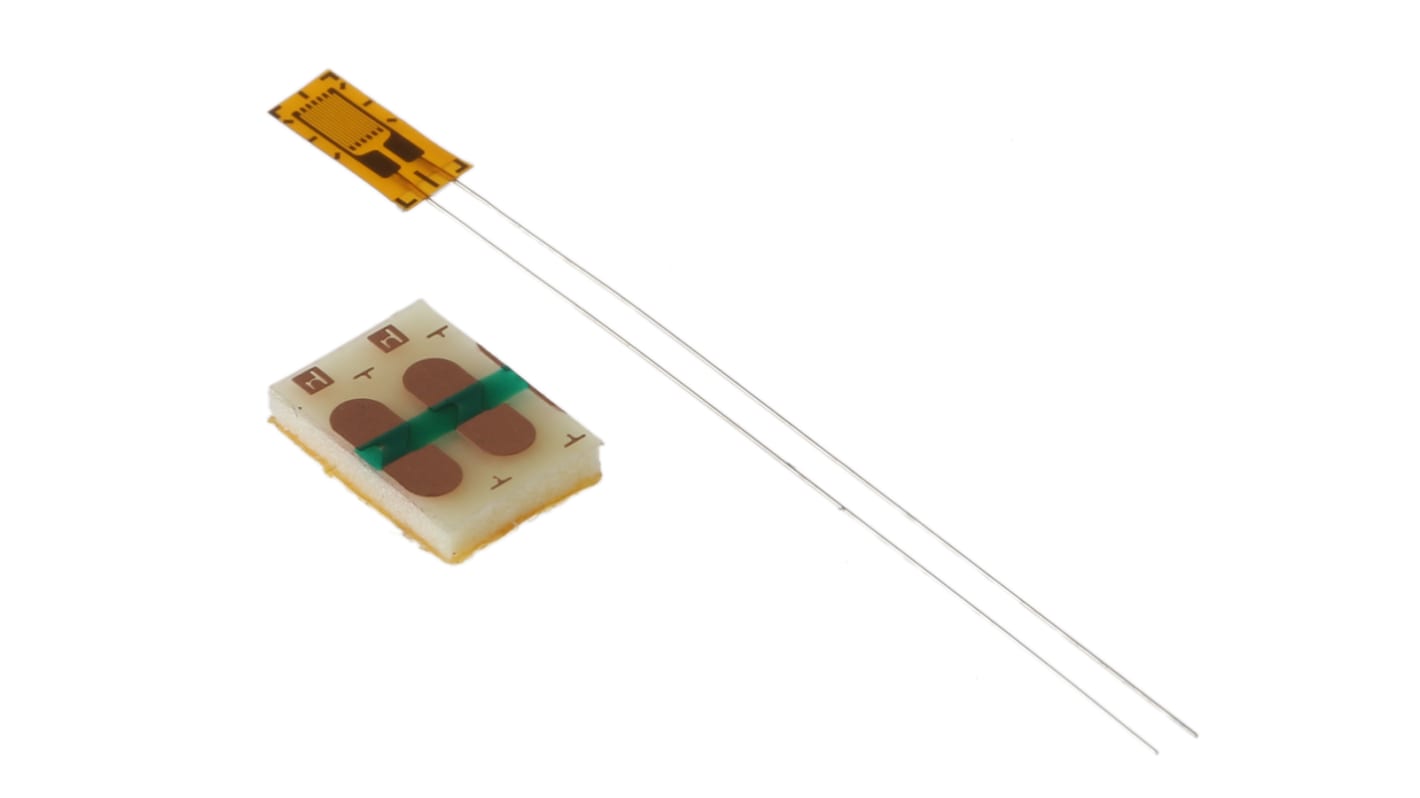

RS PRO Low Profile Strain Gauge, Compression, Tension Measure, 120Ω
- RS Stock No.:
- 632-124
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 632-124
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Force Measured | Compression, Tension | |
| Gauge Resistance | 120Ω | |
| Sensor Type | Low Profile | |
| Terminal Type | Wire Lead | |
| Length | 6mm | |
| Width | 2.5mm | |
| Gauge Length | 2mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +80°C | |
| Gauge Factor | 2 | |
| Dimensions | 6 x 2.5 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Force Measured Compression, Tension | ||
Gauge Resistance 120Ω | ||
Sensor Type Low Profile | ||
Terminal Type Wire Lead | ||
Length 6mm | ||
Width 2.5mm | ||
Gauge Length 2mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
Gauge Factor 2 | ||
Dimensions 6 x 2.5 mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
