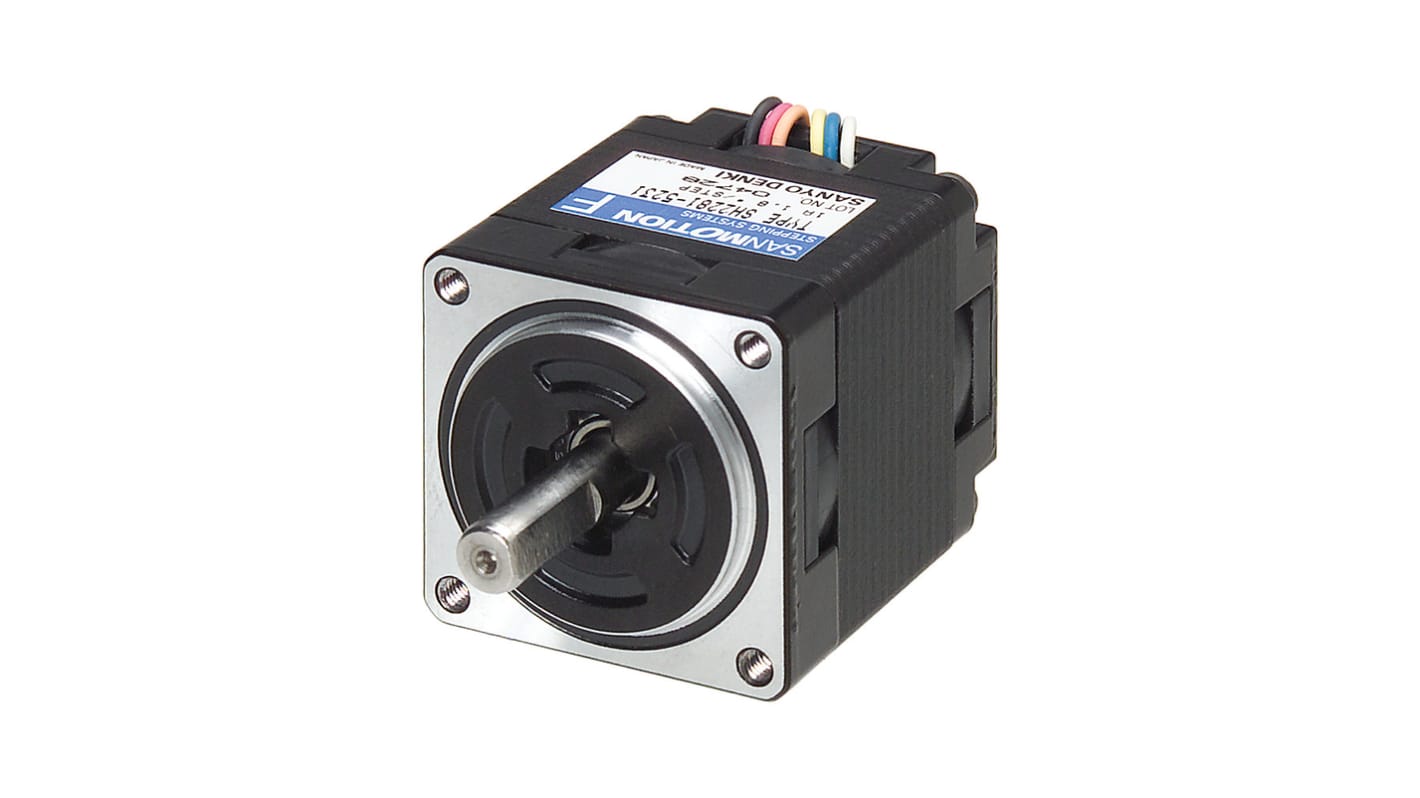

Sanyo Denki SH22 Series Hybrid, Single Shaft Stepper Motor, 0.07Nm Torque, 24 V, 1.8°, 5mm Shaft
- RS Stock No.:
- 219-3046
- Mfr. Part No.:
- SH2281-5771
- Brand:
- Sanyo Denki
4 In stock - FREE next working day delivery available
Added
Price Each
£106.21
(exc. VAT)
£127.45
(inc. VAT)
| Units | Per unit |
| 1 + | £106.21 |
- RS Stock No.:
- 219-3046
- Mfr. Part No.:
- SH2281-5771
- Brand:
- Sanyo Denki
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
The Sanyo Denki SANMOTION F2 series offers hybrid stepper motor a wide variety of models that can be selected to meet the needs of the application. In addition, motors can be customized according to customer needs, such as with hollow shafts, connectors, or adapted for use in vacuum environments. With high torque, low vibration, low noise, and high resolution. Their rich line-up is used in a wide range of fields.
1.8°step angle type
Thin type
28 mm compact type
Mounting surface damper
Thin type
28 mm compact type
Mounting surface damper
Specifications
Attribute | Value |
|---|---|
| Stepper Motor Type | Hybrid, Single Shaft |
| Step Angle | 1.8° |
| Holding Torque | 0.07Nm |
| Number Of Wires | 4 |
| Supply Voltage | 24 V |
| Shaft Diameter | 5mm |
| Shaft Length | 15mm |
| Resistance Per Phase | 2.6Ω |
| Series | SH22 |
| Standards Met | CE, UL, TUV, RoHS Compliant |
