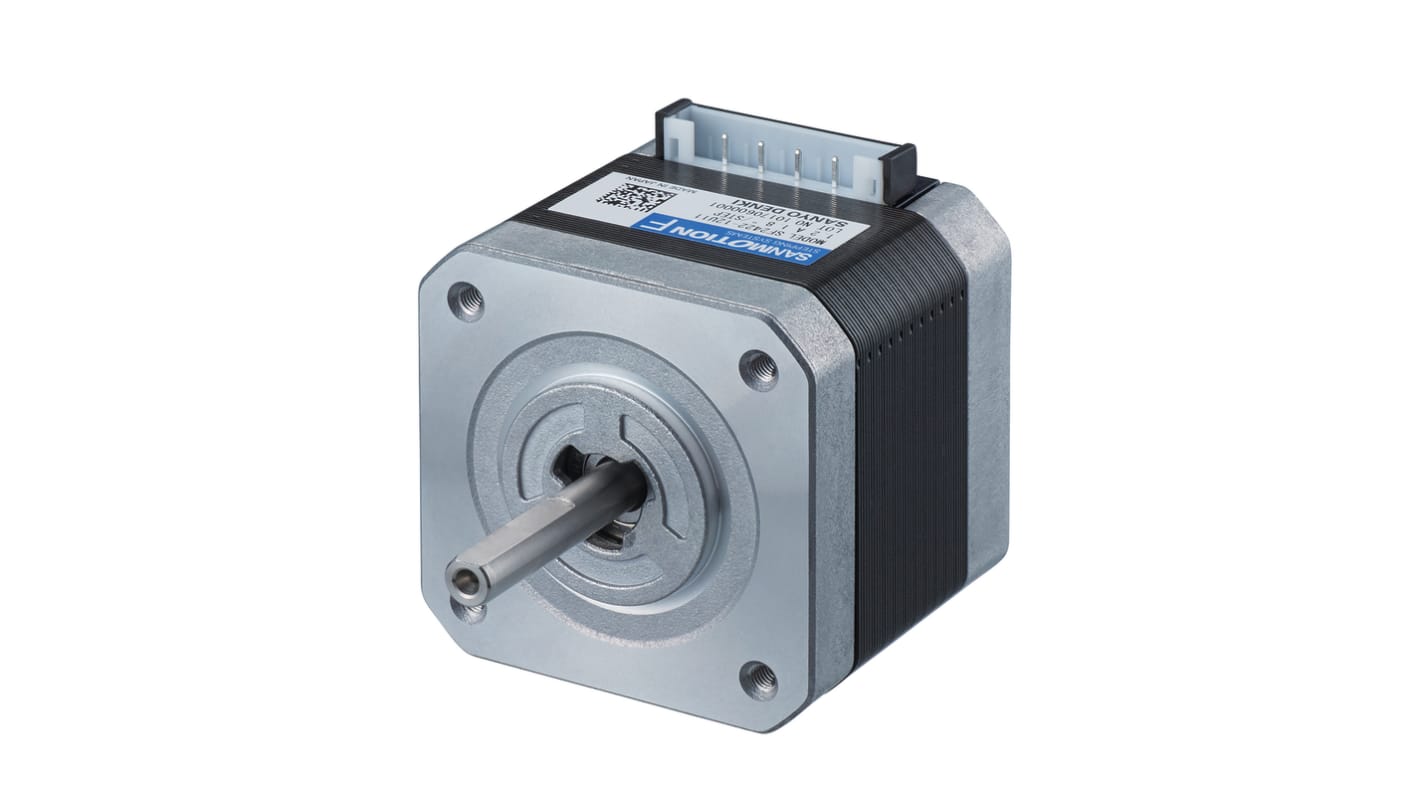

Sanyo Denki Bipolar Hybrid Stepper Motor 1.8°, 0.56Nm, 24 V dc, 1 A, 4 Wires

  • RS Stock No. 183-3582
  • Mfr. Part No. SF2423-10B41
  • Brand Sanyo Denki
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Note

A 6 core x 500mm long Motor Connection Cable is available separately - See part number183-3584

Specifications
Attribute Value
Step Angle 1.8°
Holding Torque 0.56Nm
Number Of Wires 4
Voltage Rating 24 V dc
Frame Size 42 x 42mm
Stepper Motor Type Hybrid
Shaft Diameter 5mm
Current Rating 1 A
Winding Arrangement Bipolar
Shaft Length 24mm
Depth 59.5mm
Resistance Per Phase 6.5Ω
Series SF242
4 In stock - FREE next working day delivery available
Price Each
£ 37.77
(exc. VAT)
£ 45.32
(inc. VAT)
Units
Per unit
1 +
£37.77
