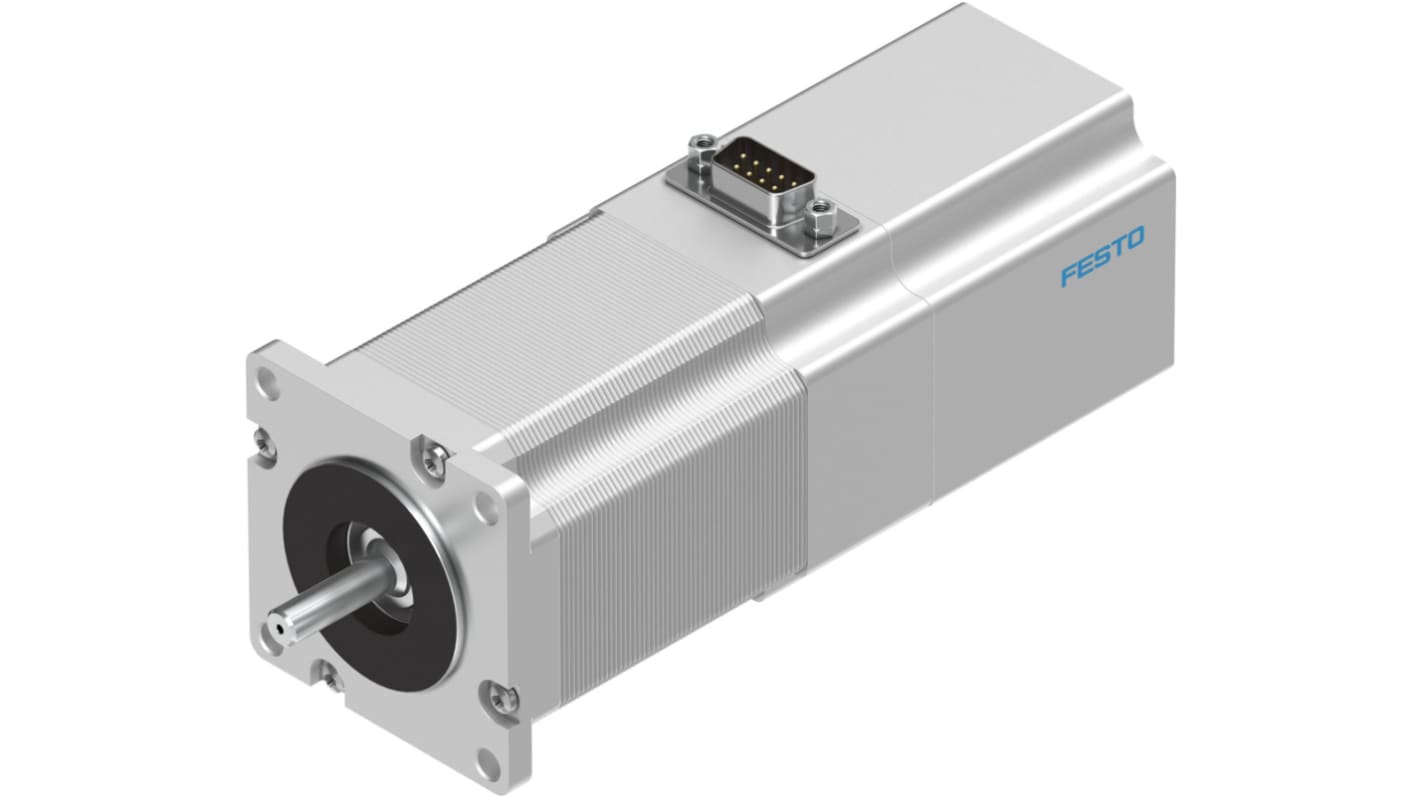

Festo EMMS-ST Series Hybrid Stepper Motor, 1.4Nm Torque, 48 V, 1.8°, 6.35mm Shaft
- RS Stock No.:
- 181-6688
- Mfr. Part No.:
- EMMS-ST-57-M-SB-G2
- Brand:
- Festo
Subtotal (1 unit)*
£489.18
(exc. VAT)
£587.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £489.18 |
*price indicative
- RS Stock No.:
- 181-6688
- Mfr. Part No.:
- EMMS-ST-57-M-SB-G2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Stepper Motor Type | Hybrid | |
Step Angle | 1.8° | |
Holding Torque | 1.4Nm | |
Supply Voltage | 48 V | |
Shaft Diameter | 6.35mm | |
Current Rating | 5 A | |
Shaft Length | 20.6mm | |
Depth | 145mm | |
Resistance Per Phase | 0.25Ω | |
Output Speed | 1940 rpm | |
Series | EMMS-ST | |
Select all | ||
---|---|---|
Brand Festo | ||
Stepper Motor Type Hybrid | ||
Step Angle 1.8° | ||
Holding Torque 1.4Nm | ||
Supply Voltage 48 V | ||
Shaft Diameter 6.35mm | ||
Current Rating 5 A | ||
Shaft Length 20.6mm | ||
Depth 145mm | ||
Resistance Per Phase 0.25Ω | ||
Output Speed 1940 rpm | ||
Series EMMS-ST | ||
- COO (Country of Origin):
- CN
Festo EMMS-ST Series Stepper Motor, 48V Supply Voltage, 6.35mm Shaft Diameter - EMMS-ST-57-M-SB-G2, Numeric Part Number:1370480
This stepper motor is engineered for precision control and high performance, making it essential in automated systems. Its hybrid technology and robust specifications make it suitable for various industrial applications where accurate positioning and dependable torque are needed. Additionally, the motor's capability to operate effectively across a wide voltage range enhances its adaptability in diverse environments.
Features & Benefits
• High torque performance of 1.4Nm for versatile applications
• Capable of 1940r/min for swift movement and efficiency
• 1.8° step angle for precise positional control
• Operates within ambient temperatures of -10°C to 50°C
• Complies with IEC and RoHS standards for safety and compliance
• IP54 protection rating ensures durability in different settings
• Capable of 1940r/min for swift movement and efficiency
• 1.8° step angle for precise positional control
• Operates within ambient temperatures of -10°C to 50°C
• Complies with IEC and RoHS standards for safety and compliance
• IP54 protection rating ensures durability in different settings
Applications
• Utilised in robotics for precise movement and positioning
• Suitable for CNC machinery to achieve operational accuracy
• Ideal for 3D printers necessitating consistent performance
• Applicable in packaging machines for efficient processing
• Used in assembly lines for automation and control
• Suitable for CNC machinery to achieve operational accuracy
• Ideal for 3D printers necessitating consistent performance
• Applicable in packaging machines for efficient processing
• Used in assembly lines for automation and control
What operating temperature range is suitable for use?
The suitable operating temperature range is -10°C to 50°C.
How do I connect the stepper motor to my system?
It features a plug connector, making integration straightforward.
What is the nominal operating voltage for this motor?
The motor runs on a nominal voltage of 48V DC.
Can it handle high load conditions?
It can support an axial shaft load of up to 10N.
What's the acceptable humidity level for storage?
Storage humidity levels can range from 0% to 85%.
