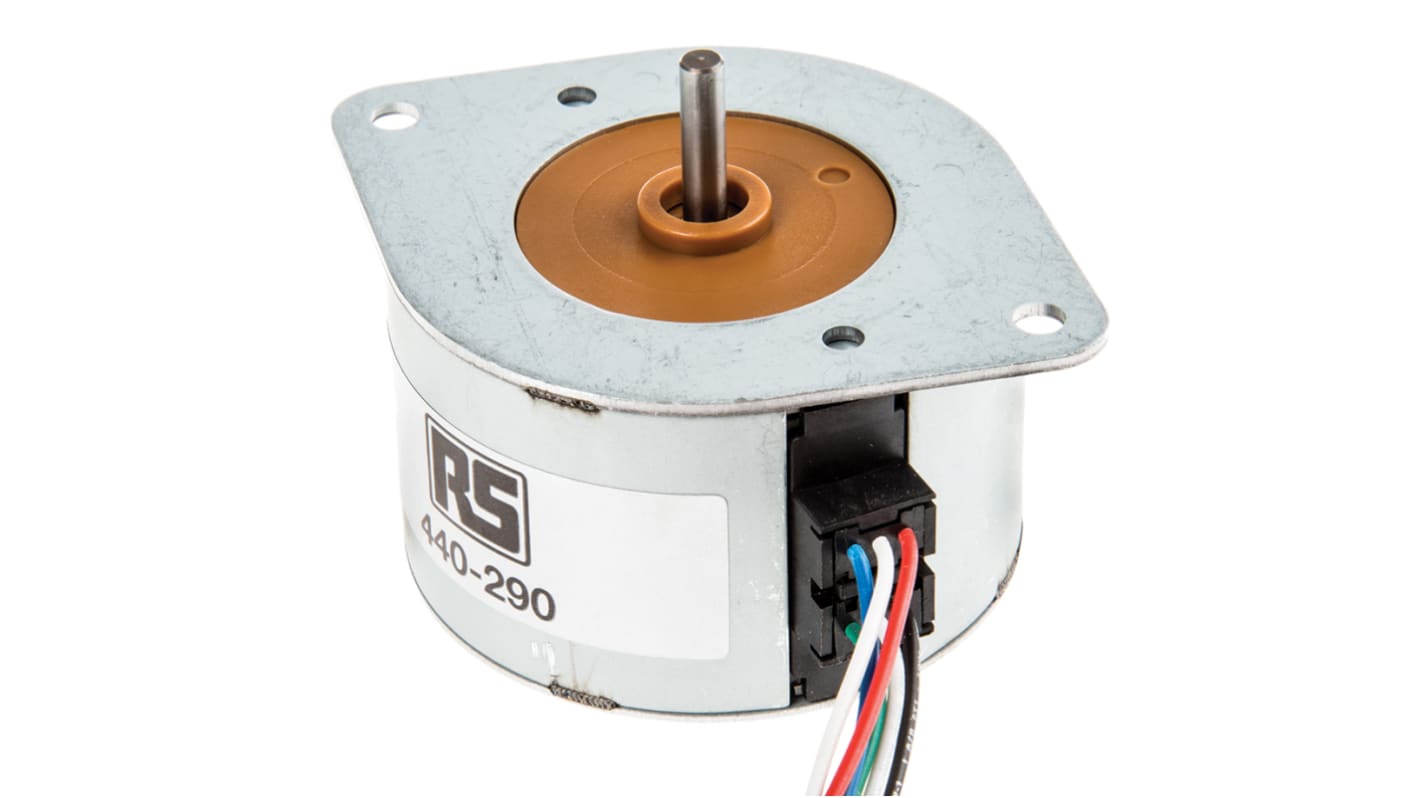

Crouzet Permanent Magnet Stepper Motor 12.5V, 0.16Nm Torque, 7.5 °, 4 mm Shaft
- RS Stock No.:
- 440-290
- Mfr. Part No.:
- 82930015
- Brand:
- Crouzet
Subtotal (1 unit)*
£67.00
(exc. VAT)
£80.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £67.00 |
*price indicative
- RS Stock No.:
- 440-290
- Mfr. Part No.:
- 82930015
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Product Type | Stepper Motor | |
| Sub Type | Permanent Magnet | |
| Step Angle | 7.5° | |
| Holding Torque | 0.16Nm | |
| Voltage | 12.5V | |
| Shaft Diameter | 4mm | |
| Current Rating | 0.39A | |
| Winding Arrangement | Unipolar | |
| IP Rating | IP40 | |
| Shaft Length | 14.4mm | |
| Number of Pole Pairs | 2 | |
| Standards/Approvals | NF C 51200 | |
| Resistance Per Phase | 32Ω | |
| Depth | 35.4mm | |
| Detent Torque | 12mNm | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Product Type Stepper Motor | ||
Sub Type Permanent Magnet | ||
Step Angle 7.5° | ||
Holding Torque 0.16Nm | ||
Voltage 12.5V | ||
Shaft Diameter 4mm | ||
Current Rating 0.39A | ||
Winding Arrangement Unipolar | ||
IP Rating IP40 | ||
Shaft Length 14.4mm | ||
Number of Pole Pairs 2 | ||
Standards/Approvals NF C 51200 | ||
Resistance Per Phase 32Ω | ||
Depth 35.4mm | ||
Detent Torque 12mNm | ||
7.5° and 15° Stepper Motors
Permanent magnet four-phase hybrid stepper motors with 7.5 or 15° step angles. The motors have 6-lead connections and are consequently suitable for use with either unipolar or bipolar drives.
