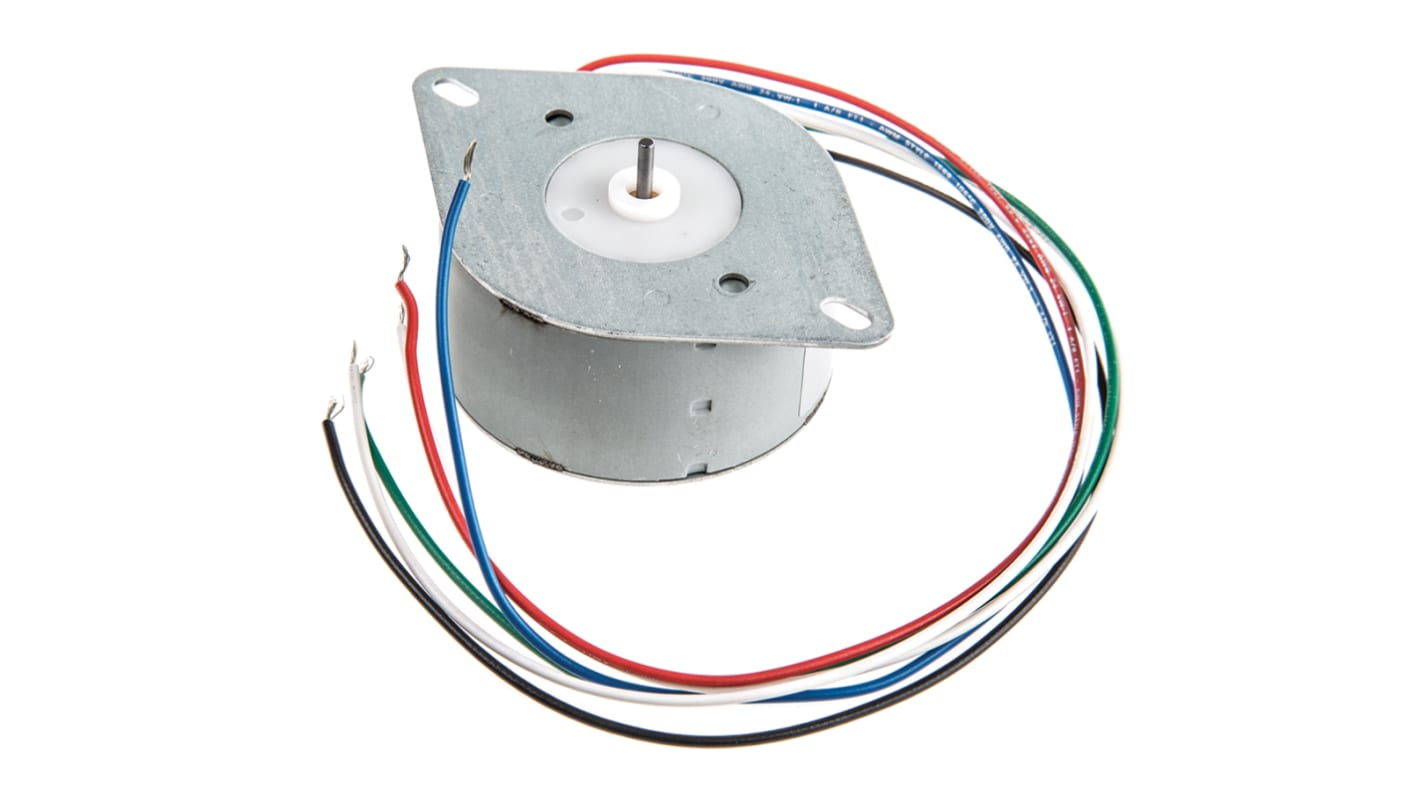

Crouzet Permanent Magnet Stepper Motor 12.9V, 57mNm Torque, 7.5 °, 2 mm Shaft
- RS Stock No.:
- 440-284
- Mfr. Part No.:
- 82920012
- Brand:
- Crouzet
Subtotal (1 unit)*
£57.15
(exc. VAT)
£68.58
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 9 unit(s) shipping from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £57.15 |
*price indicative
- RS Stock No.:
- 440-284
- Mfr. Part No.:
- 82920012
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Sub Type | Permanent Magnet | |
| Product Type | Stepper Motor | |
| Step Angle | 7.5° | |
| Holding Torque | 57mNm | |
| Voltage | 12.9V | |
| Shaft Diameter | 2mm | |
| Current Rating | 0.28A | |
| Winding Arrangement | Unipolar | |
| IP Rating | IP40 | |
| Shaft Length | 7.4mm | |
| Number of Pole Pairs | 2 | |
| Depth | 25.6mm | |
| Resistance Per Phase | 46Ω | |
| Standards/Approvals | NF C 51200 | |
| Detent Torque | 6mNm | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Sub Type Permanent Magnet | ||
Product Type Stepper Motor | ||
Step Angle 7.5° | ||
Holding Torque 57mNm | ||
Voltage 12.9V | ||
Shaft Diameter 2mm | ||
Current Rating 0.28A | ||
Winding Arrangement Unipolar | ||
IP Rating IP40 | ||
Shaft Length 7.4mm | ||
Number of Pole Pairs 2 | ||
Depth 25.6mm | ||
Resistance Per Phase 46Ω | ||
Standards/Approvals NF C 51200 | ||
Detent Torque 6mNm | ||
- COO (Country of Origin):
- FR
7.5° and 15° Stepper Motors
Permanent magnet four-phase hybrid stepper motors with 7.5 or 15° step angles. The motors have 6-lead connections and are consequently suitable for use with either unipolar or bipolar drives.
