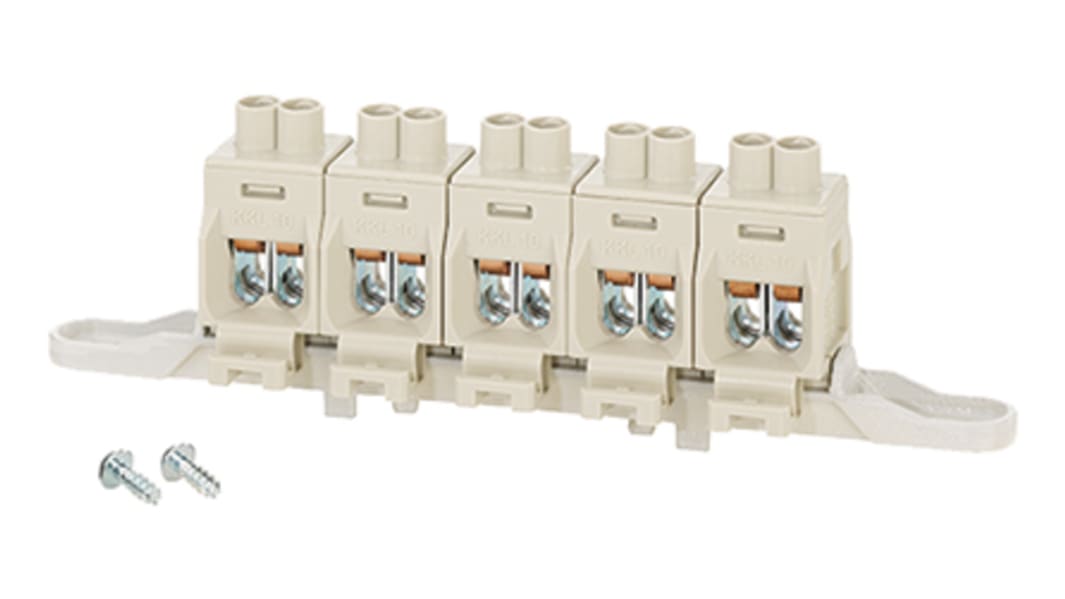

HENSEL DK Series Non-Fused Terminal Block, 5-Way, 63A, 2.5 → 16 mm² Wire, Screw Down Termination

RS Stock No.:: 884-2332
Mfr. Part No.:: DKKS10
Brand:: HENSEL

HENSEL DK Series Non-Fused Terminal Block, 5-Way, 63A, 2.5 → 16 mm² Wire, Screw Down Termination

4 In stock - FREE next working day delivery available

6 available from Europe for delivery within 2 working day(s).

Price Each

£39.84

(exc. VAT)

£47.81

(inc. VAT)

Units	Per unit
1 - 9	£39.84
10 - 14	£37.45
15 +	£35.86

RS Stock No.:: 884-2332
Mfr. Part No.:: DKKS10
Brand:: HENSEL

DKKS10 Data Sheet

Hensel ENYCASE DK Cable Junction Box, IP66 / IP67

The ENYCASE DK series junction box from Hensel is a weatherproof enclosure suitable for outdoor installations. It is resistant to UV radiation and is protected against rain and saltwater, as well as being temperature and impact resistant. This junction box is ideally suited to offshore applications.

Cable entry via knockouts
Saltwater protected
Suitable for offshore applications
Lid secured quickly by quarter turn of captive screw
Multi-level knockouts for different sized cable glands
All terminals have 2 clamping units per pole
Terminals are positioned high to provide more space for wiring
External brackets for fastening are included
IP66 / IP67 ingress protection
IK09 protection against mechanical load
Halogen and silicone free
Flame retardant and self-extinguishing polycarbonate
Two colours available, black (RAL 9011) or grey (RAL 7035)

Terminals

Stock no. 884-2326, 5 pole, 0.5-4 mm², 20A, for use with 884-2271 & 884-2307
Stock no. 884-2335, 5 pole, 0.5-6 mm², 32A, for use with 884-2275 & 884-2300
Stock no. 884-2338, 5 polel, 0.5-10 mm², 40A, for use with 884-2284 & 884-2304
Stock no. 884-2332, 5 pole, 2.5-16 mm², 63A, for use with 884-2287 & 884-2313
Stock no. 884-2341, 5 pole, 6-25 mm², 102A, for use with 884-2281 & 884-2316
Stock no. 884-2344, 5 pole, 6-35 mm², 102A, for use with 884-2290 & 884-2310
Stock no. 884-2348, 5 pole, 16-35 mm², 150A, for use with 884-2293 & 884-2329
Stock no. 884-2357, 5 pole, 16-50 mm², 150A, for use with 884-2297 & 884-2322

Terminal Supports

Stock no. 884-2350, for use with 884-2326
Stock no. 884-2354, for use with 884-2326 & 884-2335
Stock no. 884-2363, for use with 884-2326, 884-2335 & 884-2338

Note

Terminals must be purchased separately.
Terminal supports are only required for stock nos. 884-2326, 884-2335 & 884-2338, they are not required for the larger terminals which come complete with fixing elements.

Standards

IEC 60 670-22, Russian Maritime Register of Shipping (letter no. 250-A-1180-108795).

Approvals

VDE.

Rated connecting capacity: 2.5-16 mm², Cu
Terminal with 2 clamping units per pole
5-pole per pole 6 x 2.5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 4 x 10 mm² r / f, 2 x 16 mm² s / f
Current carrying capacity: 63 A
For insertion in cable junction boxes
DK 10...., KF 10...., EB 10..
Complete with fixing elements

Attribute	Value
Number of Ways	5
Current Rating	63A
Wire Size	2.5 → 16 mm²
Termination Method	Screw Down
Mounting Type	Screw
Fused	No
Material	Copper
Voltage Rating	690 V
Series	DK
Enclosed	Yes
