BK series multipole terminal strils for direct mounting.

Rated cross-section: 4 mm²
Screw connection
Direct mounting

829-8747 - 4mm²; 2 Terminals; 4 Connections
829-6697 - 4mm²; 4 Terminals; 8 Connections
829-6678 - 4mm²; 6 Terminals; 12 Connections
829-8719 - 4mm²; 12 Terminals; 24 Connections

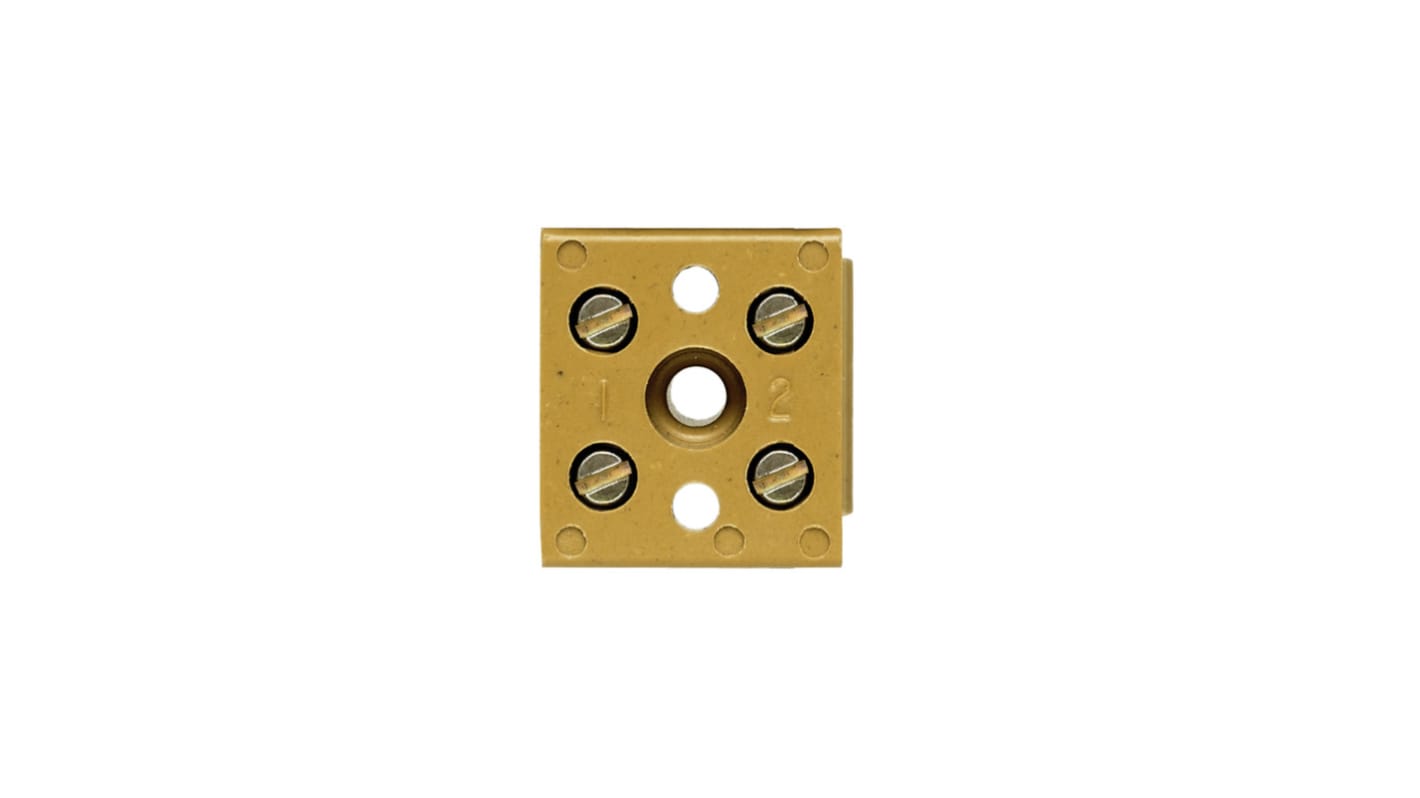

This terminal strip is designed for electrical connections across various applications, particularly in junction and small distribution boxes. The product features a compact design with dimensions of 20x22mm, ensuring efficient space utilisation. With a current rating of 32A and a voltage rating of 400V, this 2-way terminal strip accommodates wire sizes from 22 to 12AWG, making it versatile for a range of wiring requirements.

• Screw connection provides secure wire fastening
• Compatible with 4mm² cable for broader applications
• UL 94 flammability rating ensures safer operation

• Utilised in compact junction boxes
• Ideal for wiring in small distribution panels
• Suitable for direct mounting onto mounting rails
• Works effectively in both electrical and mechanical assembly

Yes, it operates efficiently within -60°C to +130°C.

The terminal strip is made of KrG material.

BK Series
