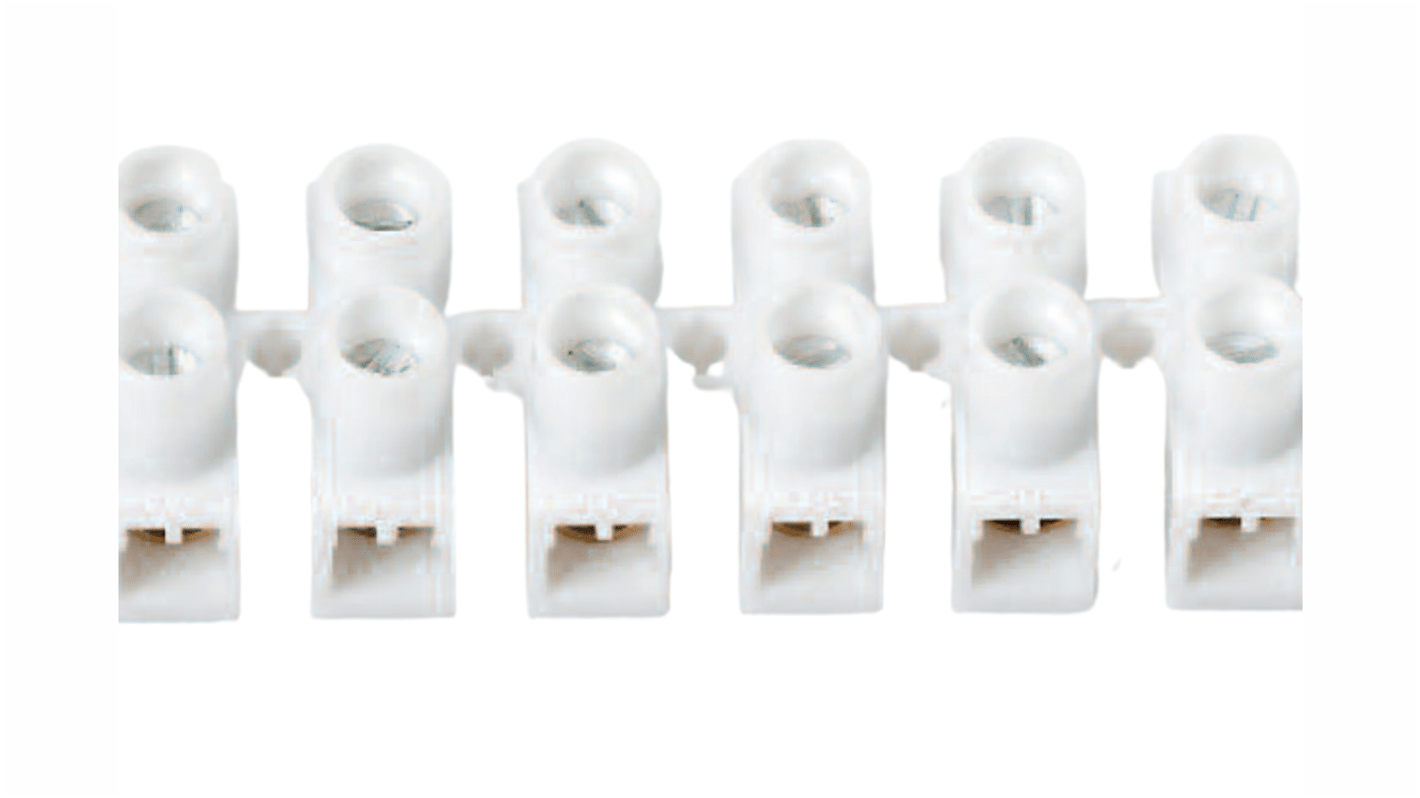

HellermannTyton CS Series Terminal Block, 12-Way, 4mm Wire, 3A Screw

This Terminal Block is a multi-way screw connection device designed for wiring distribution in electrical and control panels. It provides secure screw terminations for single conductors up to 4mm and is suitable for installations where compact, organised multi-pole connections are required. The product is offered in natural, white and black body colours and is constructed from polymeric materials compatible with typical industrial environments.

• 3A rated contact for low-current distribution and protection
• Brass contact inserts ensure consistent conductivity and durability
• Plated steel screws provide corrosion‑resistant clamp force
• Operates from -20°C to 90°C for extended temperature range performance
• 12-way configuration packed as ten strips of 12 poles for bulk usage
• Self‑extinguishing material reduces fire propagation risk in enclosures

• Suitable for Terminal distribution within automation control cabinets
• Ideal for wiring harness junctions in electronic assemblies
• Used for signal and low-power connections in mechanical control systems
• Can be used for panel-mounted point-to-point wiring in electrical panels

The screw terminals accept conductors up to 4mm, allowing typical small-signal and control wiring to be secured.

The body is moulded from polyethylene or polypropylene grades offering a flame-retardant, self‑extinguishing finish and suitability across different temperature demands.

Contacts are brass with plated steel screws, so users GET reliable electrical contact combined with mechanically robust screw threads.

It is supplied without fusing and without an enclosure, intended for incorporation into panels or Terminal chambers that provide physical protection.
