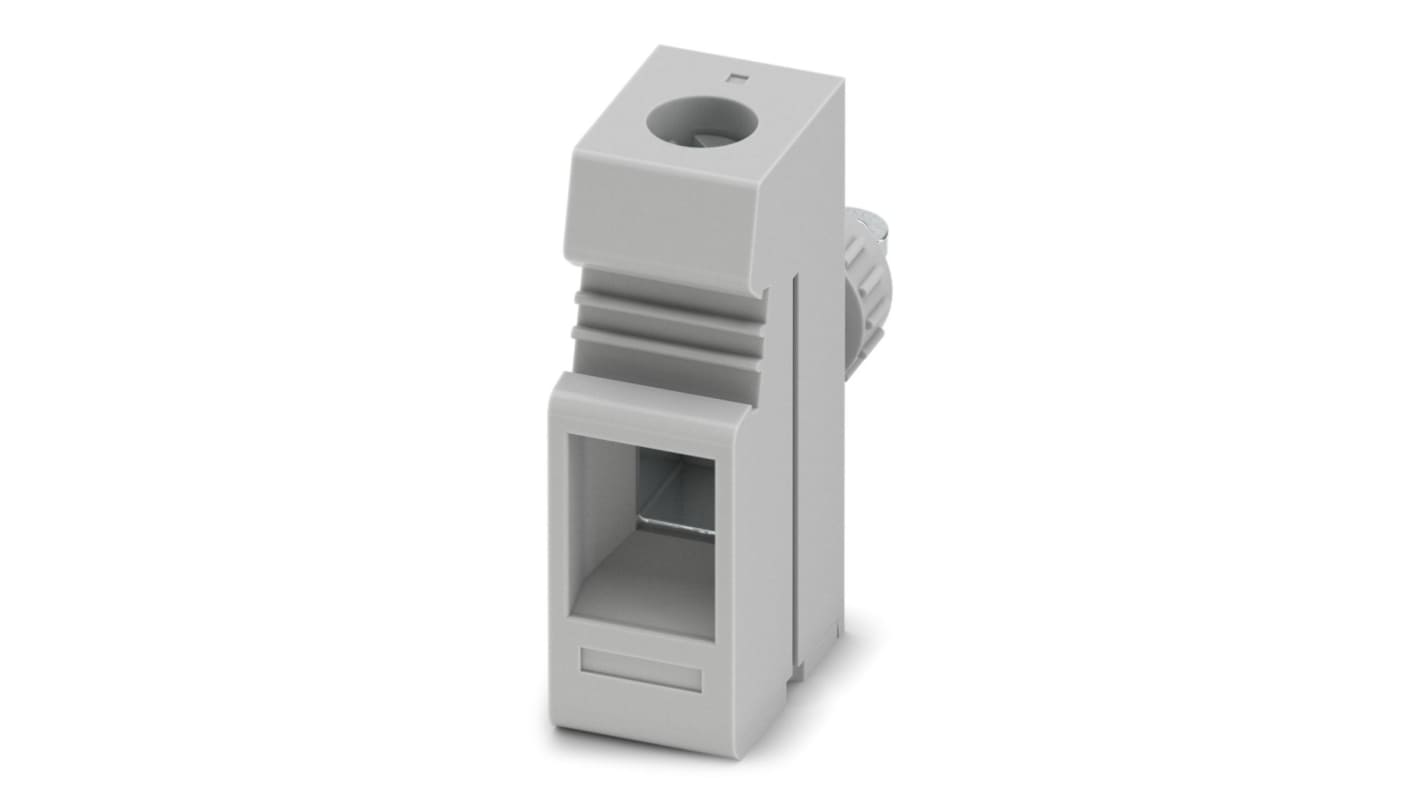

Phoenix Contact VDFK 6 Series Terminal Block, 1-Way, 10mm² Wire, 41A Screw
- RS Stock No.:
- 248-2141
- Mfr. Part No.:
- 0711027
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£139.75
(exc. VAT)
£167.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 100 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £2.795 | £139.75 |
*price indicative
- RS Stock No.:
- 248-2141
- Mfr. Part No.:
- 0711027
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Ways | 1 | |
| Product Type | Terminal Block | |
| Current | 41A | |
| Wire Size | 10mm² | |
| Mount Type | Panel | |
| Fused | No | |
| Contact Material | Copper Alloy | |
| Material | Polyamide | |
| Pitch | 10mm | |
| Voltage | 500V | |
| Colour | Grey | |
| Wire Protection | No | |
| Series | VDFK 6 | |
| Termination Type | Screw | |
| Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Enclosed | No | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | KEMA-KEUR, IECEE CB Scheme, EAC, cULus Recognised, CSA | |
| Contact Plating | Tin Plated | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Ways 1 | ||
Product Type Terminal Block | ||
Current 41A | ||
Wire Size 10mm² | ||
Mount Type Panel | ||
Fused No | ||
Contact Material Copper Alloy | ||
Material Polyamide | ||
Pitch 10mm | ||
Voltage 500V | ||
Colour Grey | ||
Wire Protection No | ||
Series VDFK 6 | ||
Termination Type Screw | ||
Gender Female | ||
Maximum Operating Temperature 125°C | ||
Enclosed No | ||
Hazardous Area Certification NO | ||
Standards/Approvals KEMA-KEUR, IECEE CB Scheme, EAC, cULus Recognised, CSA | ||
Contact Plating Tin Plated | ||
The Phoenix Contact's VDFK series part panel mount, feed-through terminal blocks for high current applications with a touch proof insulated housing. This VDFK panel mount terminal block has a screw wire connection on the front, a circular clamp / plastic knurled nut with a solder hook for the rear connection and is suitable for use on a panel thickness range of 1-4mm. The contact material of this block is Cu alloy
Easy fixing using plastic knurled nut or quick mounting wedge
Touch-proof insulating housing
Low temperature rise, thanks to maximum contact force
WEEE / RoHS compliant
